Product Description

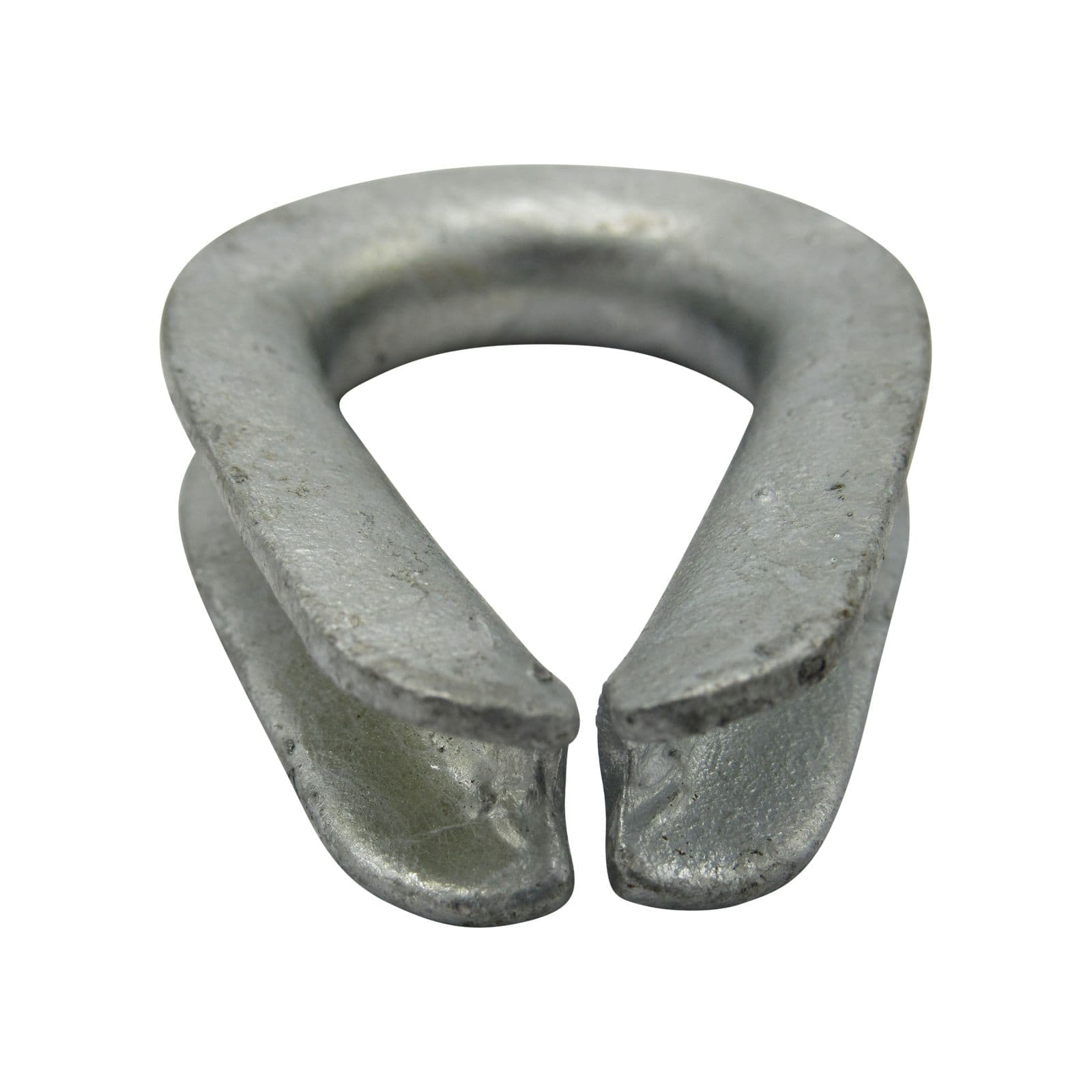

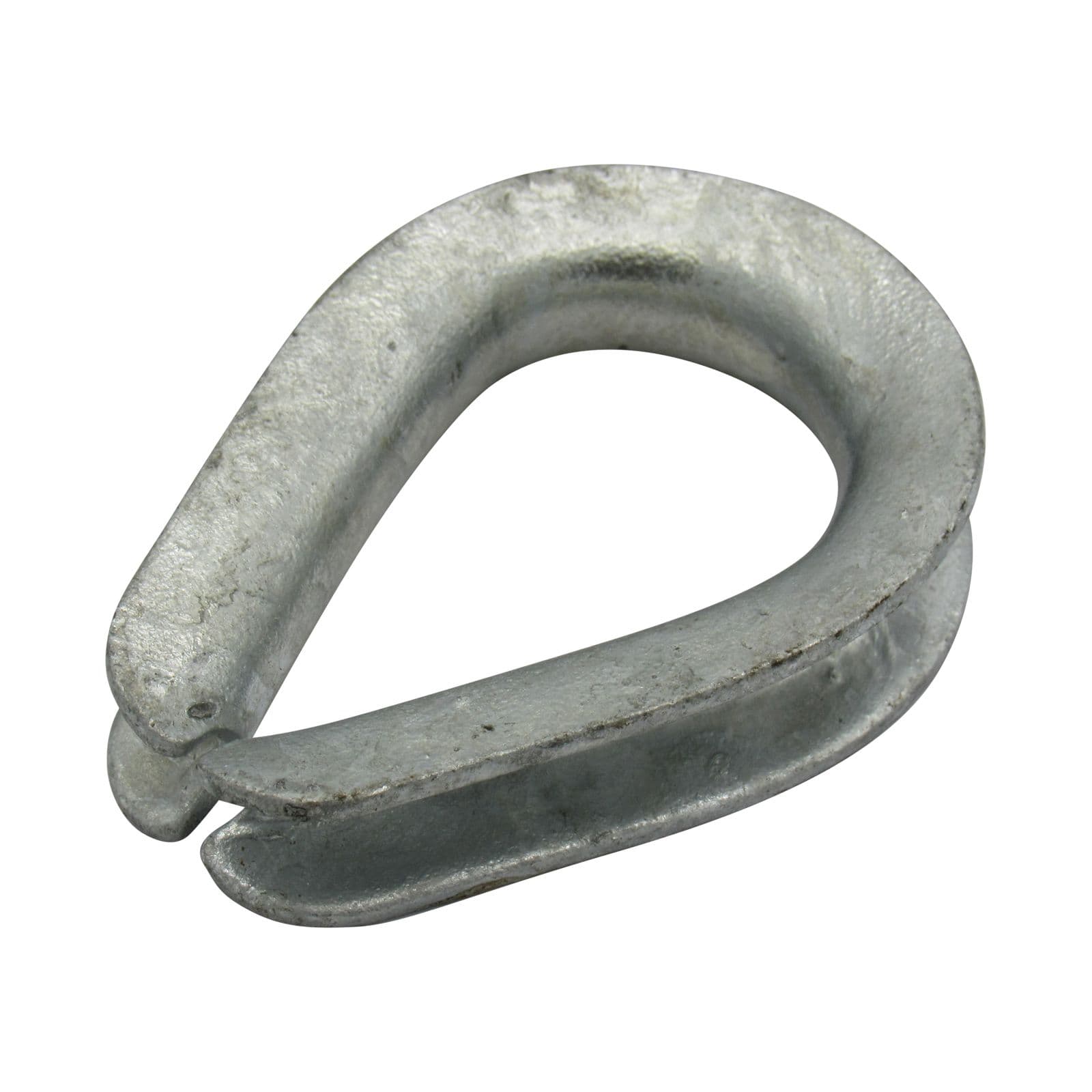

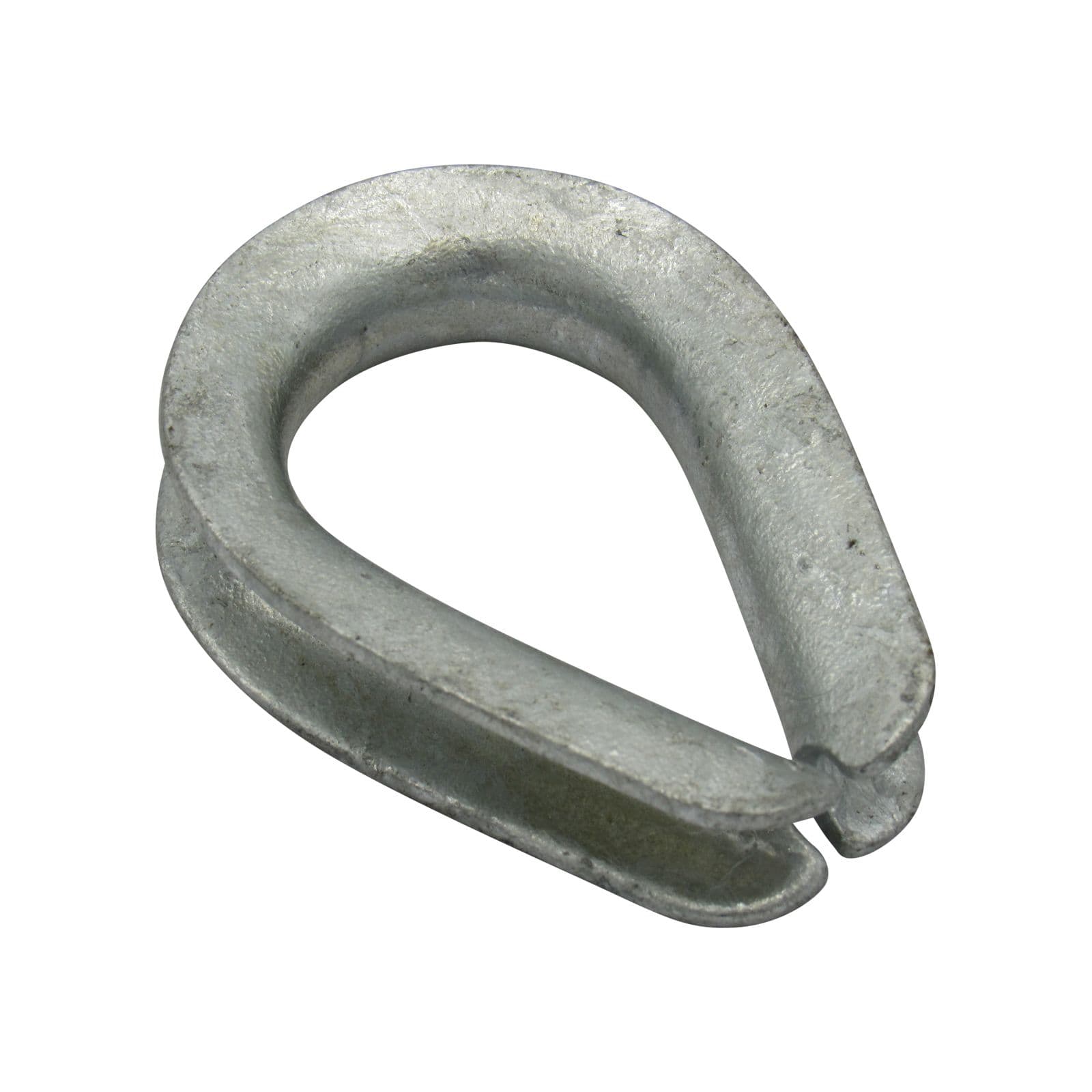

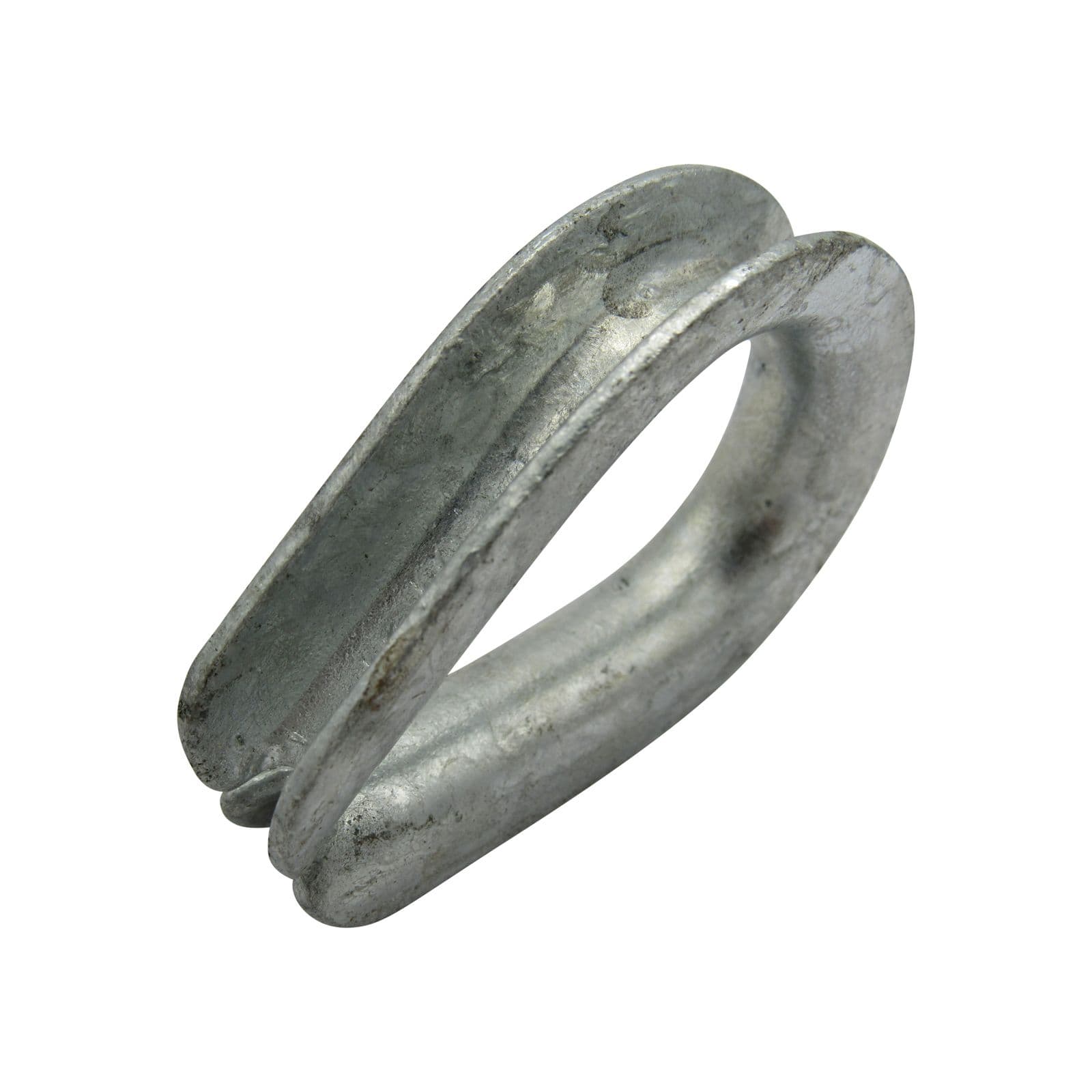

x10 1/2" US Fed Wire Rope Thimbles

Size - 1/2" (12MM)

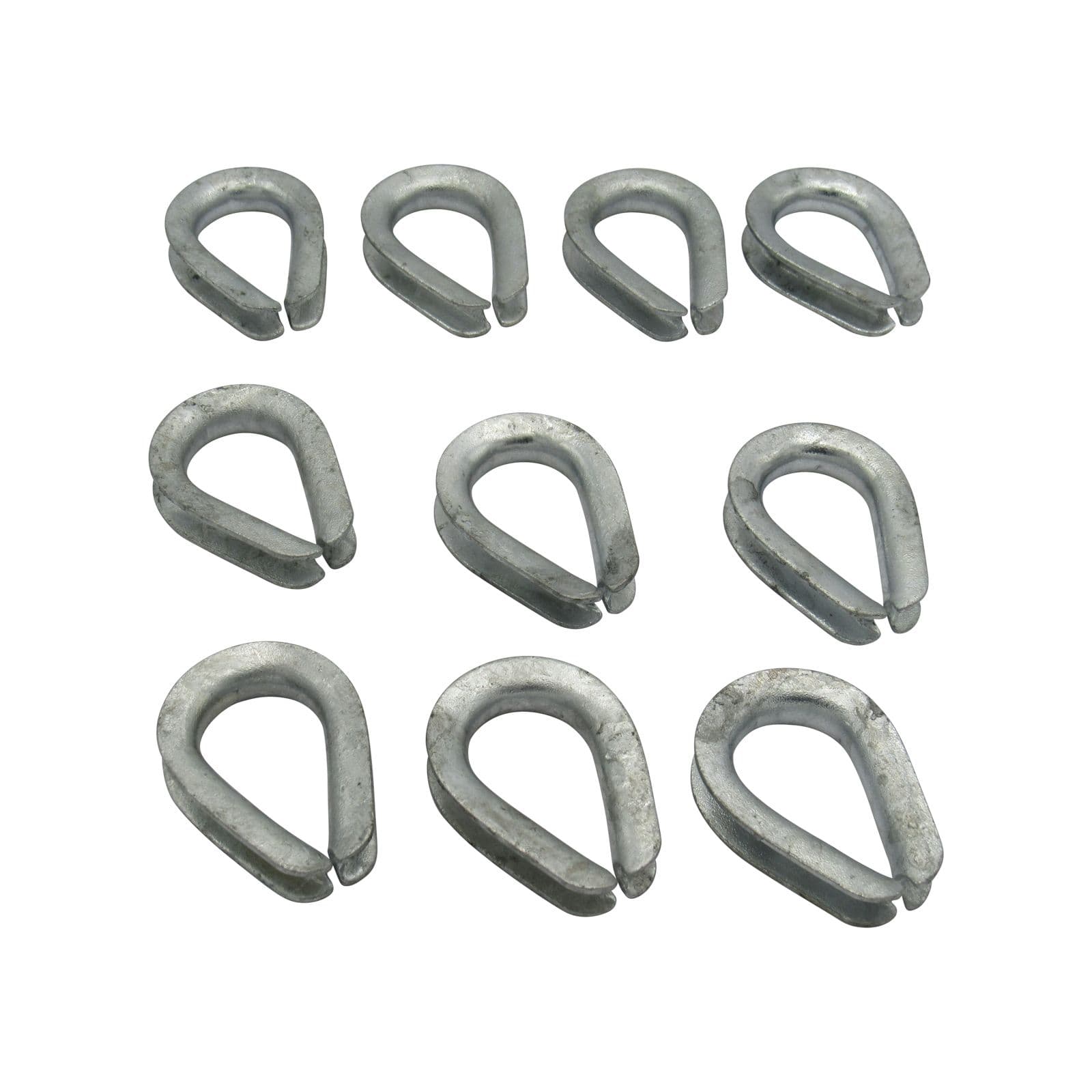

Quantity- 10

Material - Galvanised Steel

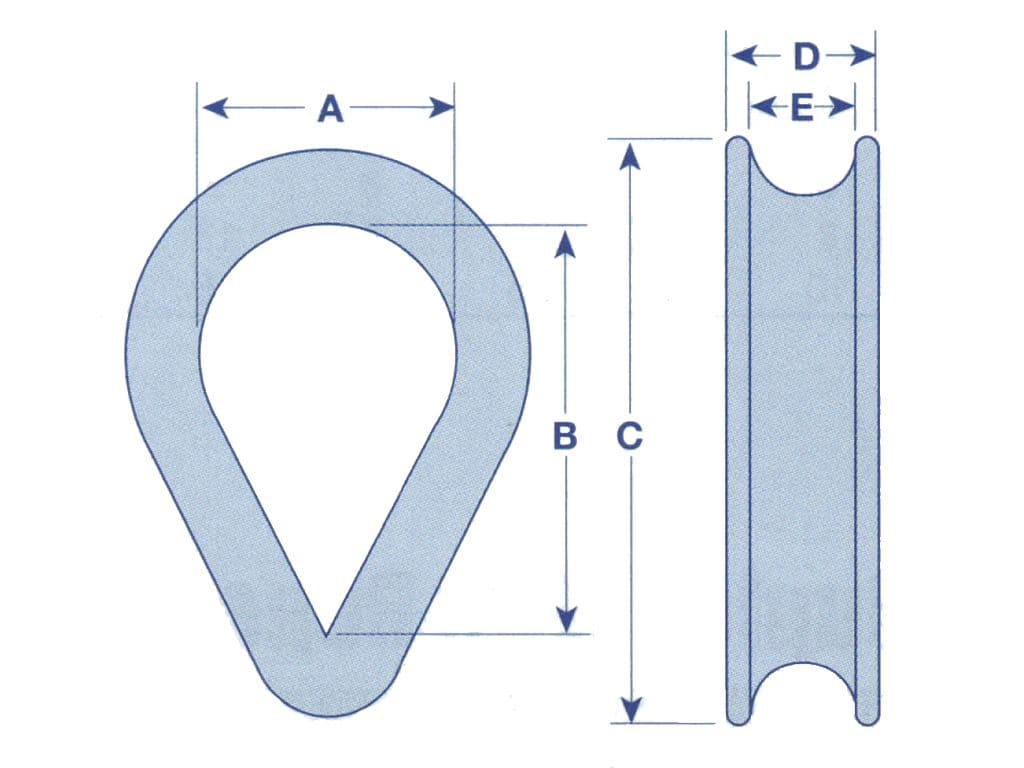

Product Code	A (MM)	B (MM)	C (MM)	D (MM)	E (MM)
SFUST06	23	41	55	11.3	8.4
SF UST 08	27.5	48.2	63.5	13.7	10.4
SFUST10	29.2	55.6	75.2	16.9	12.4
SF UST 11	35	65	80	19	10
SFUST12	37.5	65	90	23.5	16.6
SF UST 14	39.2	65	90	22.7	16
SFUST16	44	78.7	105.9	27	20.1
SFUST20	50.2	93.8	128.5	33.4	22.5
SF UST 22	59.3	102	135	37	28.7
SF UST 26	64.6	110	150	42.6	33.4
SF UST 28	72.5	132.5	180	47	35.5
SF UST 32	80.5	140	185	48	38
SF UST 35	85	160	230	66.3	47.2
SF UST 38	90	165	230	65	47.2
SF UST 44	110	240	310	73.2	51.2
SF UST 52	150	310	380	83	61.2
SF UST 56	180	340	430	96.3	70.5
SFUST64	180	340	460	114.2	82.8
SFUST72	180	400	531	137	104

These Heavy Duty Wire Rope Thimbles Are Used To Create A Loop In Wire Rope And These Particular Thimbles Meet The Performance Requirements Of US FED Spec FF-T 276B Type 3.

These Wire Rope Thimbles Are Perfect For Various Applications As They Protect Against Wear And Deformation Of The Wire Rope Eye.

These Particular Thimbles Are Heavy Duty And Suitable For Lifting Applications.

Please Note We Supply A Huge Variety Of D.I.Y Hardware and Equipment.

***FREE DELIVERY***

Product Code -SFUST12

Specifications

Product Code

SFUST12

Weight

2.12kg

Delivery & Returns

Delivery is free for all orders over £50. Otherwise, delivery is depending on the items you plan to purchase.Once your product has shipped, it usually takes 2 to 3 business days in UK, 3 to 8 in Europe. 5 to 15 for the rest of the world. You can return your product up to 14 days after receiving your order. Please make sure that the products are not used or damaged.

Customer Reviews

x10 1/2" US Fed Wire Rope Thimbles - 12MM FF-T276B Type 3 Galvanised

Item in Stock

Product Code SFUST12

Wire Rope Thimbles Are Used For Creating A Strong & Durable Loop In A Wire Rope And Cable And Protects The Rope From Being Worn Out.
