Product Description

Painted Open Wedge Socket with Bolt and Pin

Size -1 1/8"

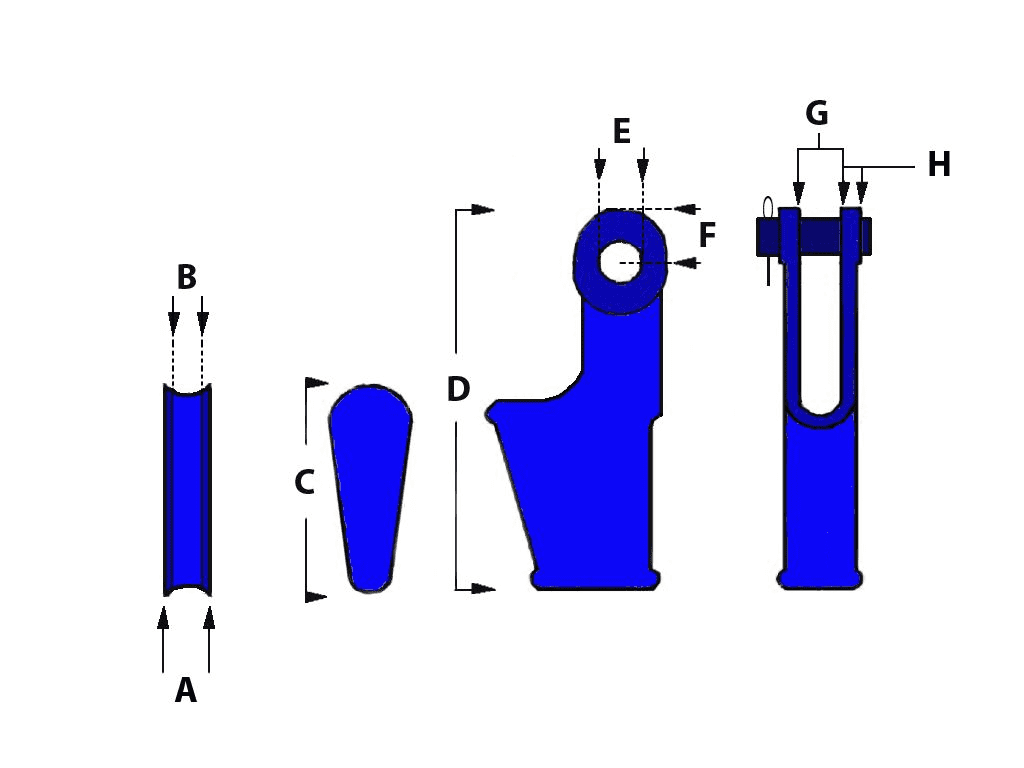

Product CodeA(MM)B(MM)C(MM)D(MM)E(MM)F(MM)G(MM)H(MM)Breaking Load
SFWS1011.56.87514421.51921.513.58 Ton
SFWS1314.5910517625.5252615.510 Ton
SFWS1618.21212321030.63032.513.620 Ton
SFWS202113148252363538.517.525 Ton
SFWS22251416928542414420.550 Ton
SFWS2629.619.819232049.9505122.850 Ton
SFWS2829.422.5200365555561.224.660 Ton
SFWS3234.125.922040563.86564.129.560 Ton

These Open Wedge Sockets with bolt and pin are great for gripping wire rope on a wide range of applications. This socket retains the ropes full strength while securely holding it in place. These are useful for many other different applications.


Specifications

Product Code
SFWS28
Weight
18.29kg

Customer Reviews

X1 1 1/8" Painted Open Wedge Socket With Bolt And Pin - Grip Tail Wire Rope

Item in Stock

Product Code SFWS28

These Are Mostly Used For Wire Rope Applications But Have Many Other Uses.
