Product Description

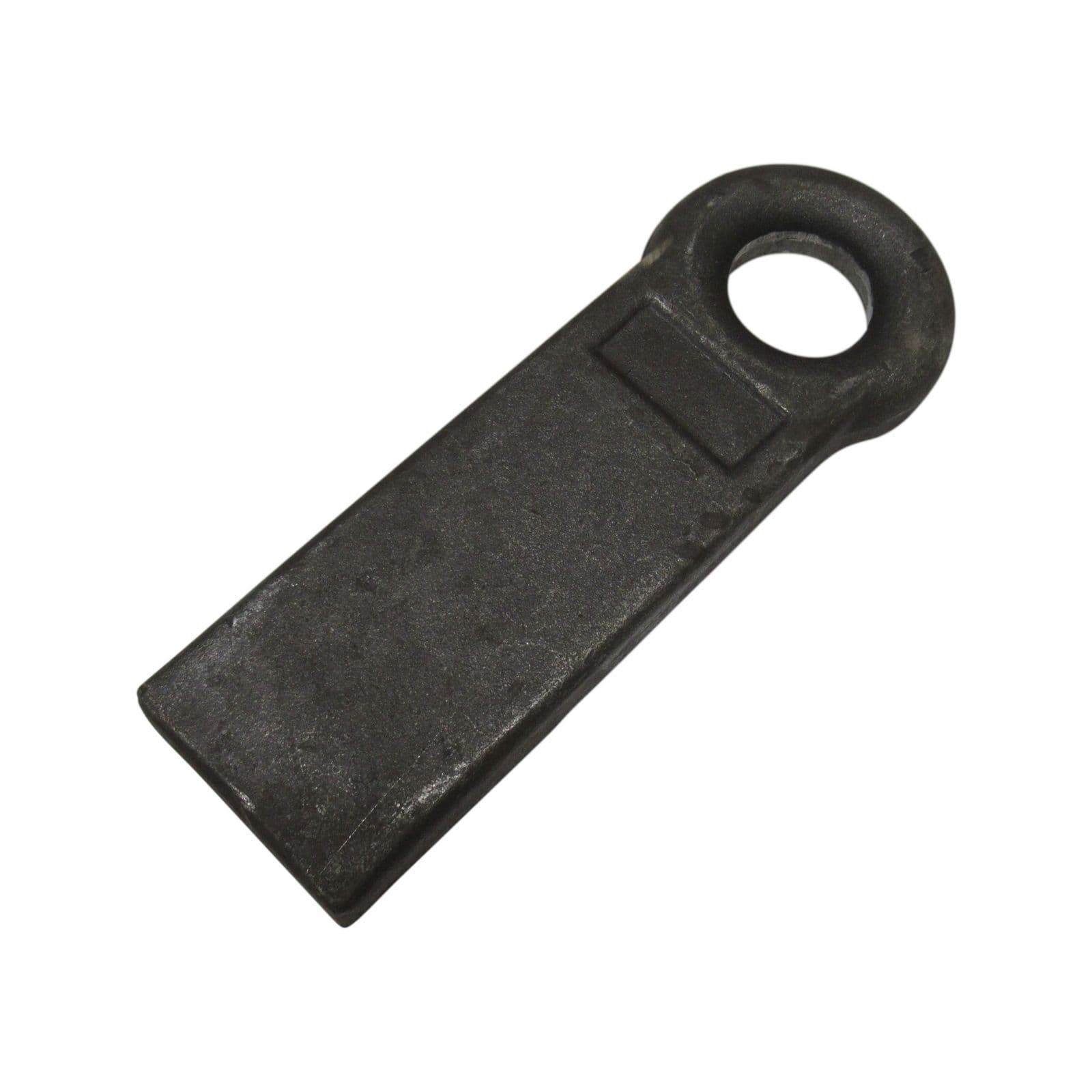

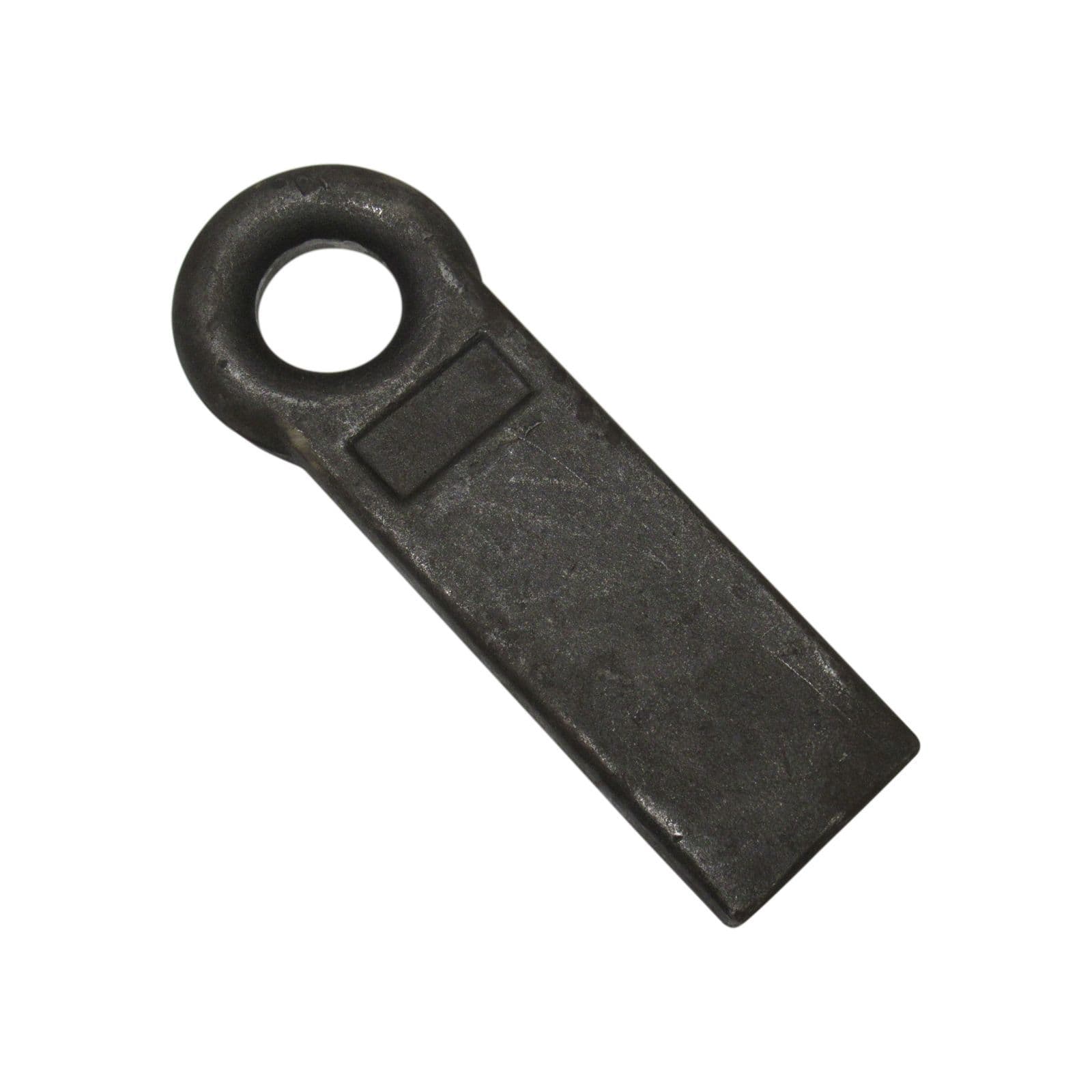

Straight Trailer Hitch Eye

Material - Mild Steel

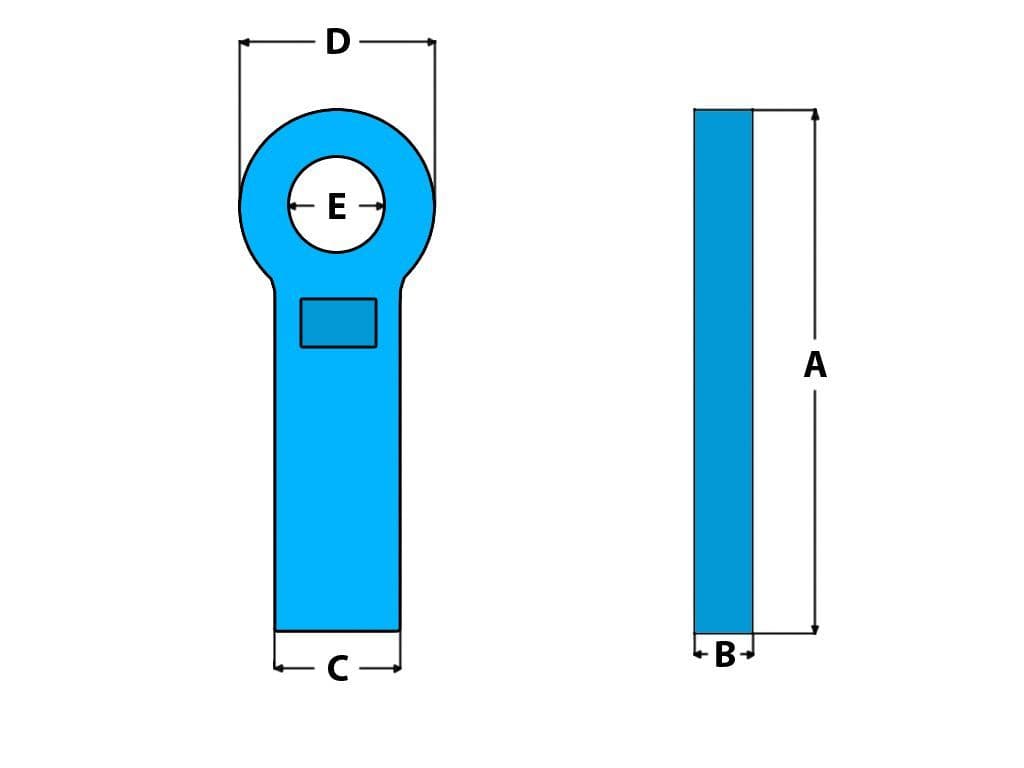

Product Code A (MM) B (MM) C (MM) D (MM) E (MM) Max Breaking Load On Eye
SFAG0100A 128 31.5 91.5 110 50.5 24
SFAG0100B 305 30 88 110.5 50.5 24
SFAG0100C 405 30.5 93 113 51 24
SFAG0100D 460 31.5 91 110.5 50 24
SFAG0101A 307 30.5 91 112 51 35
SFAG0101B 407 31.5 91 112.5 50.5 35
SFAG0104 308 41 93.5 113 50.5 112
SFAG0104A 304 42.5 91 113 51 82

Our Trailer Hitch Eyes Are Made To Be Welded On To Trailers And Have An Eye As The Attachment Point. Our Trailer Hitch Eyes Are Shotblasted And Finished In Self Colour. We Also Supply Towing Eye Bushes That Will Fit Directly Into The Eye To Allow A Pin To Be Used Instead Of A Tow Ball.


Always Ensure Welding Is Carried Out By A Qualified Person. As General Rules; Always Preheat, No Tack Welding Or Short Thin Runs.

*Please Note We Supply Various Trailer Hitch Eyes And A Huge Variety Of Agricultural Products*

***FREE DELIVERY***


Product Code - SFAG0100B

Specifications

Product Code
SFAG0100B
Weight
5.38kg

Customer Reviews

Weld On Towing Eye 12" (24 Ton 30.4CM Straight Heavy Duty Mild Steel Trailer Ring)

Out of stock

Product Code SFAG0100B

When welded onto a trailer, this hitch eye makes a heavy duty towing attachment point.
