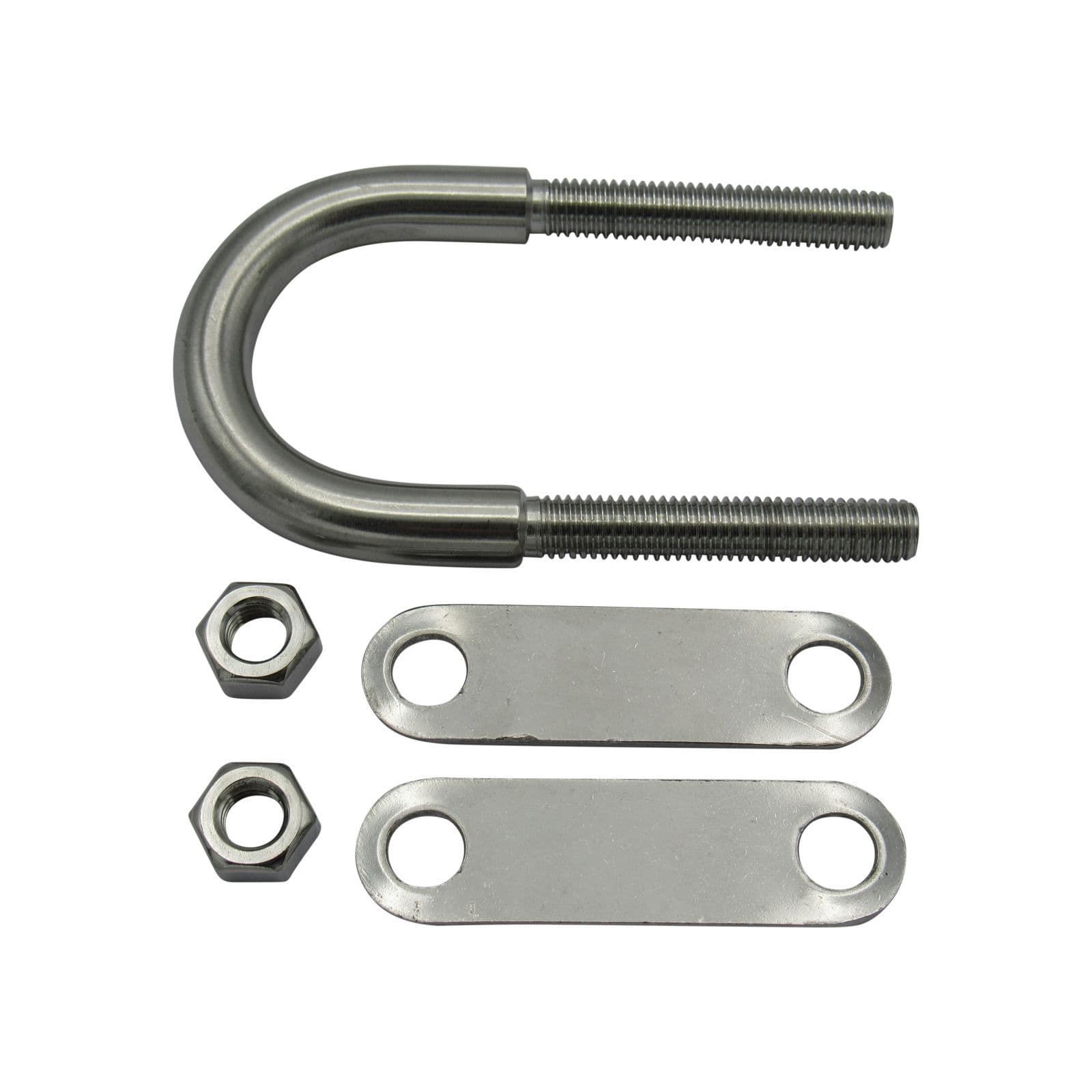

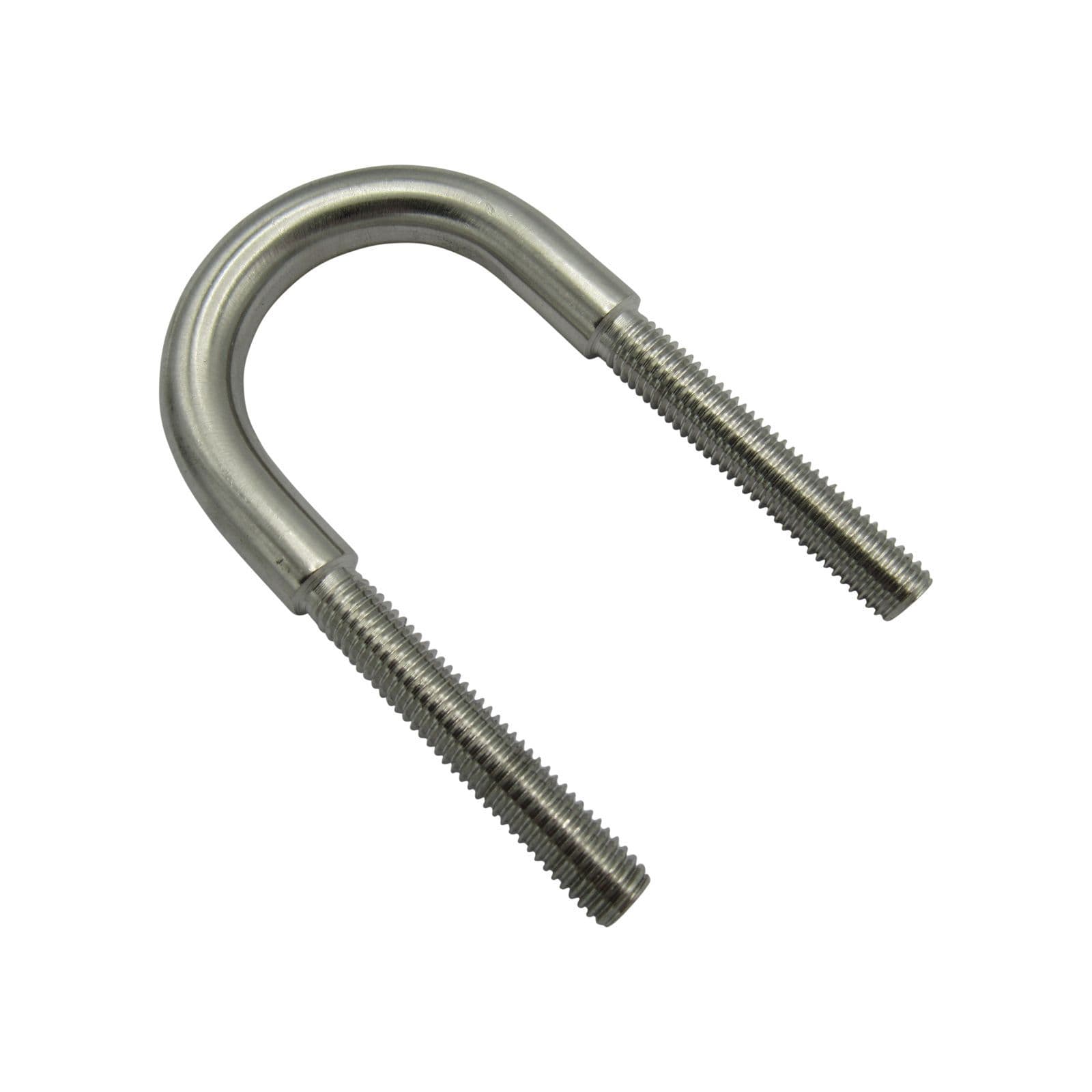

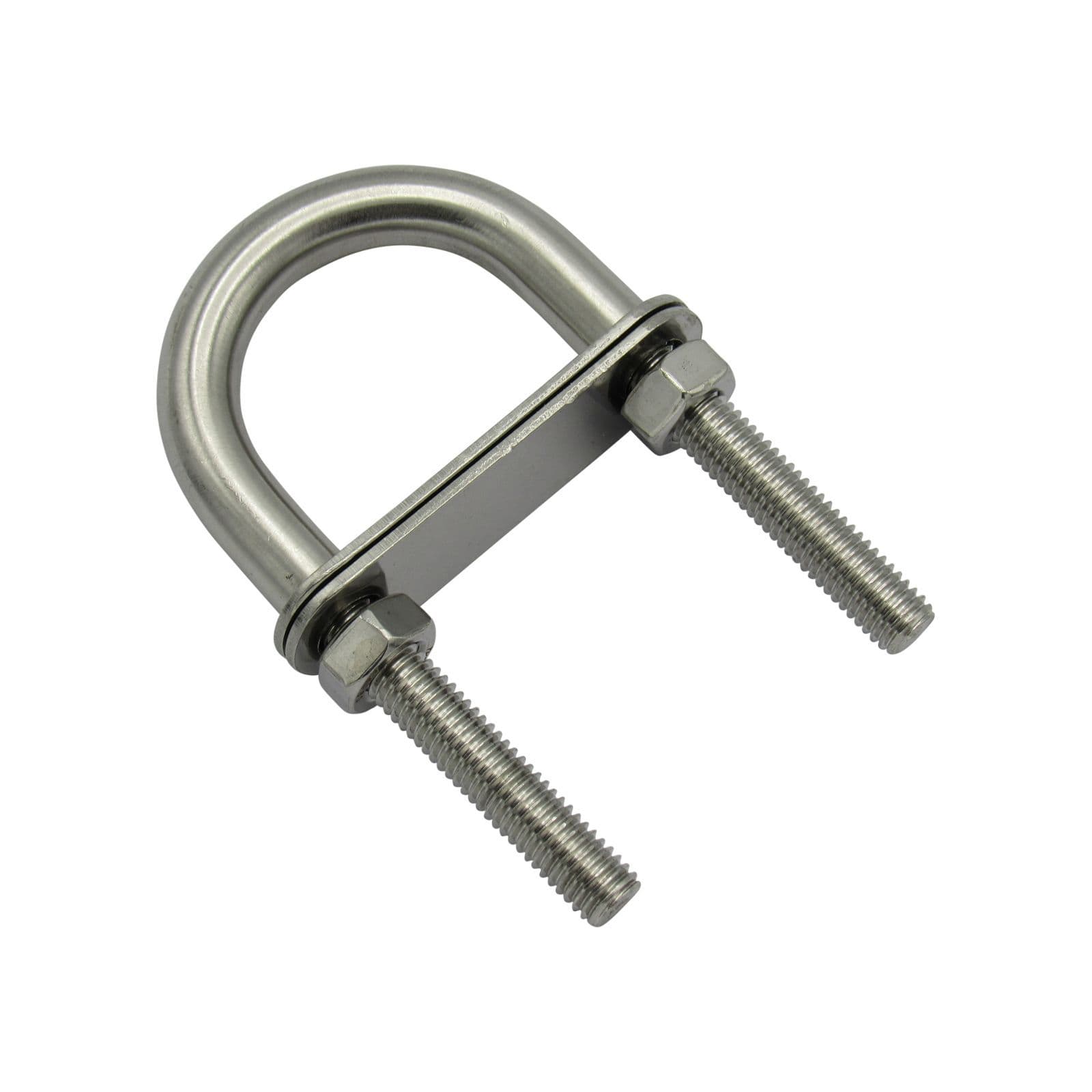

8MM x 90MM U Bolt With 2 Plates & Nuts

Size - 8MM

Length - 90MM

Metal - 316 Grade Stainless Steel

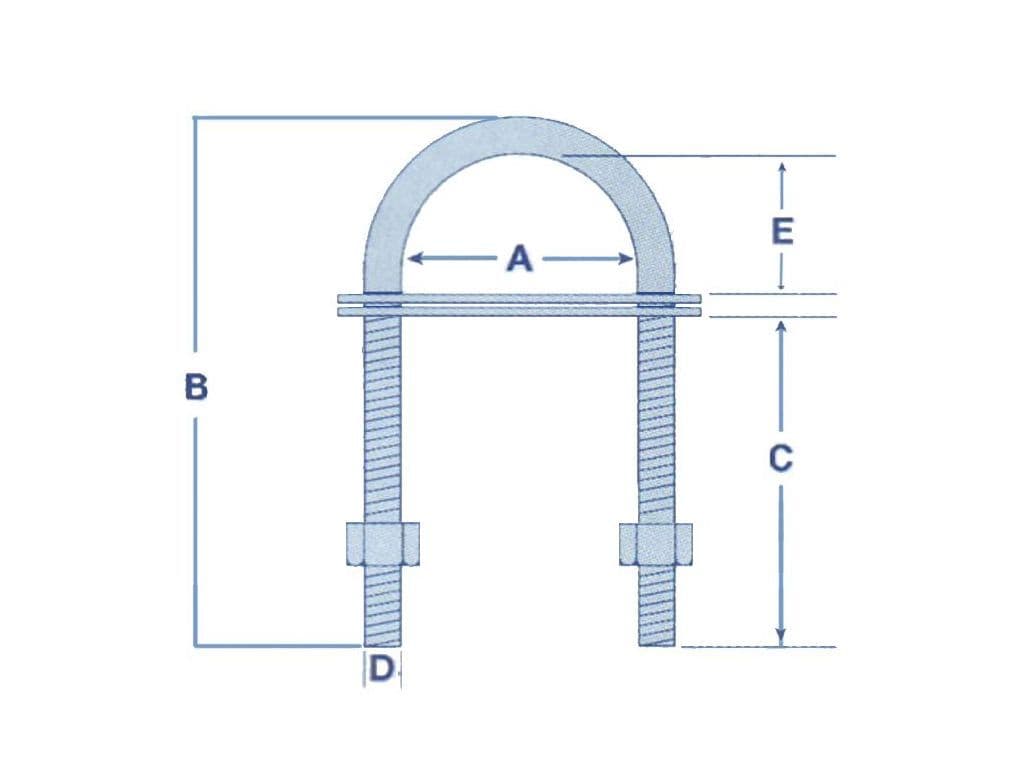

Product Code	A (MM)	B (MM)	C (MM)	D (MM)	E (MM)	F (MM)
SFSSUB0460	26	60.5	36	4	21	30.5
SFSSUB0580	30.5	80	46.5	5	28.5	39
SFSSUB0680	31	90.5	57	6	29.5	40.5
SFSSUB08100	27.5	101.5	58	8	35.5	49.5
SFSSUB08130	29	130	67	8	50	54.5
SFSSUB08140	35	142	80	8	47	X
SFSSUB0860	27.5	60.5	43.5	8	30	40
SFSSUB0865	28	65.5	29.5	8	28.5	25
SFSSUB0880	28	81	43.5	8	28.5	40.5
SFSSUB0890	34.5	93	45	8	34.5	X
SFSSUB10130	42.5	131	73.5	10	48	56
SFSSUB1090	41.5	92	45.5	10	34.5	40
SFSSUB12150	49	153	79.5	12	59.5	65.5
SFSSUB08165	25.5	167	122.9	8	30.5	47

'U' bolts are used all around boats as a means of securing pipes and tubes. Many other industries also use these for various jobs as they are effective and pleasing to look at.

These are hugely popular within the marine industry as they are manufactured from 316 grade stainless steel giving them the best rust protection.

Specifications

Product Code

SFSSUB0890

Weight

0.09kg

Delivery & Returns

Delivery is free for all orders over £50. Otherwise, delivery is depending on the items you plan to purchase.Once your product has shipped, it usually takes 2 to 3 business days in UK, 3 to 8 in Europe. 5 to 15 for the rest of the world. You can return your product up to 14 days after receiving your order. Please make sure that the products are not used or damaged.

Customer Reviews

Stainless Steel U Bolt with 2 Plates 90MM 8MM (Nuts Tube Pipe Shaped Heavy Duty)

Name: Stainless Steel U Bolt with 2 Plates 90MM 8MM (Nuts Tube Pipe Shaped Heavy Duty)
SKU: SFSSUB0890
Price: 4.85 GBP
Availability: OutOfStock

Out of stock

Product Code SFSSUB0890

This U Bolt with plates and nuts is suitable for many uses on boat pipes.

Product Description

8MM x 90MM U Bolt With 2 Plates & Nuts

Specifications

Customer reviews

Delivery & Returns

Stainless Steel U Bolt with 2 Plates 90MM 8MM (Nuts Tube Pipe Shaped Heavy Duty)
