Product Description

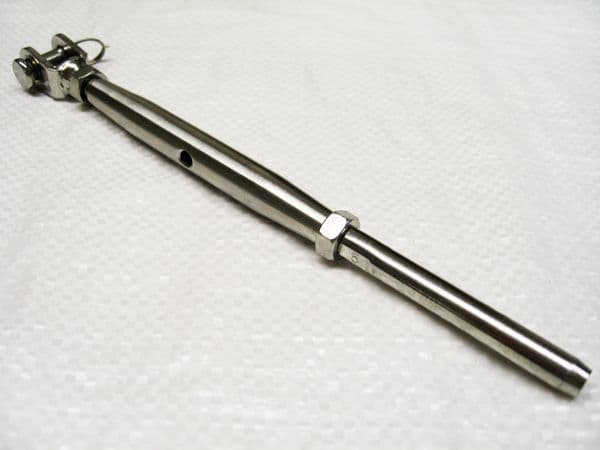

8MM Rigging Screw with Jaw And Swage Terminal

Thread Diameter - 8MM

Wire Diameter - 5MM

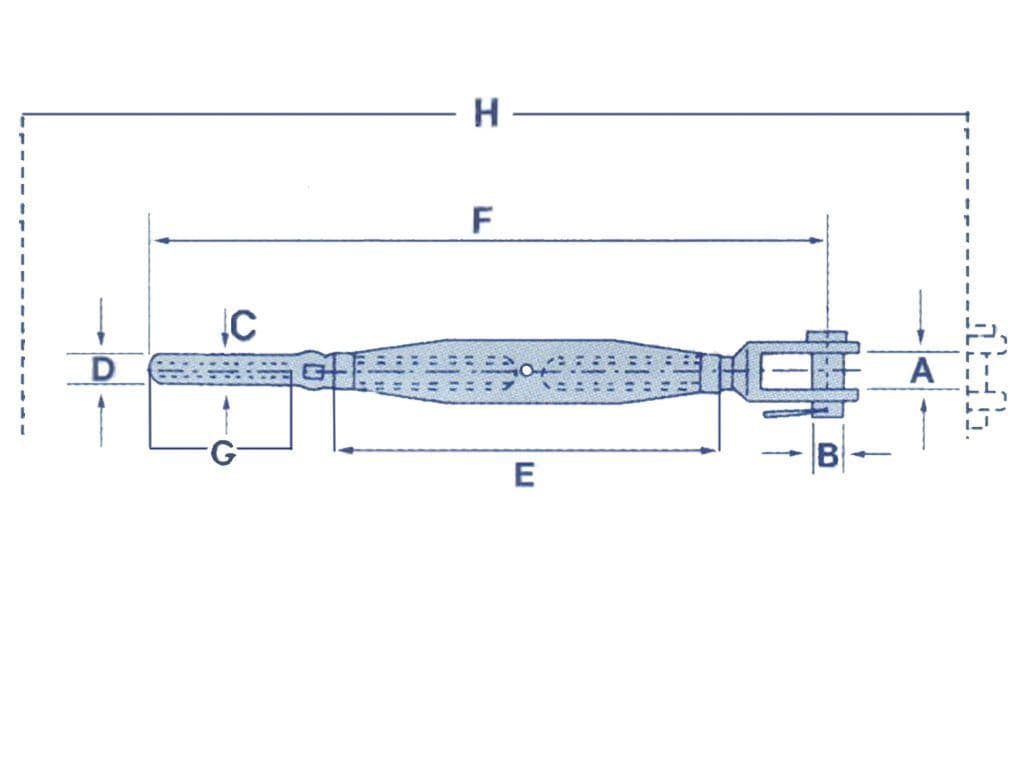

Product Code	A (MM)	B (MM)	C (MM)	D (MM)	E (MM)	F (MM)	G (MM)	H (MM)
SFSSTR05	6	5	5.5	2.5	87	151	34	220
SFSSTR06	8.5	6	6	3	103	178	45	255
SFSSTR06A	7.5	6	7.5	4	104.5	188	47	270
SFSSTR08	11	8	8	4	120	205	50	295
SFSSTR08A	10.5	8	9	5	118	197	52	290
SFSSTR10	11.5	9	9	5	138	234	52	338
SFSSTR12	14	12	12.5	6	167	300	66	425
SFSSTR14	14	12	14	7	185	318	71	457
SFSSTR16	17	16	16	8	190	370	80	530
SFSSTR20	20	19	18	10	240	410	90	595

Our Stainless Steel Rigging Screws Are Great For A Variety Of Purposes But Some Uses Are For Handrail Wires And For Rigging On Boats Of Various Sizes.

These Are Hugely Popular Within The Marine Industry As They Are Manufactured From 316 Grade Stainless Steel Giving Them The Best Rust Protection.

Please Note We Supply A Huge Variety Of Stainless Steel Parts.

***FREE DELIVERY***

Product Code - SFSSTR08A

Specifications

Product Code

SFSSTR08A

Weight

0.15kg

Delivery & Returns

Delivery is free for all orders over £50. Otherwise, delivery is depending on the items you plan to purchase.Once your product has shipped, it usually takes 2 to 3 business days in UK, 3 to 8 in Europe. 5 to 15 for the rest of the world. You can return your product up to 14 days after receiving your order. Please make sure that the products are not used or damaged.
