Product Description

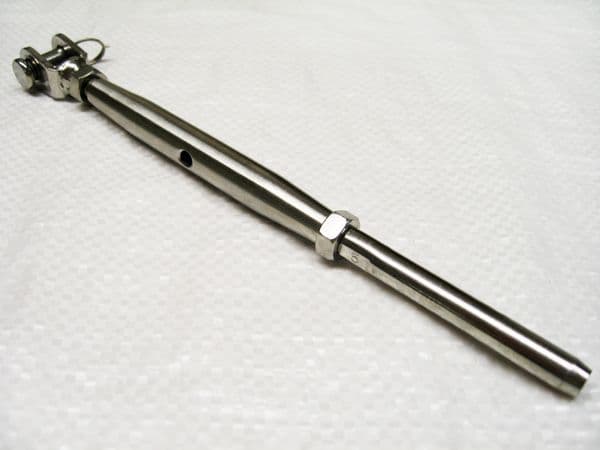

5MM Rigging Screw with Jaw And Swage Terminal

Thread Diameter - 5MM
Wire Diameter - 2.5MM

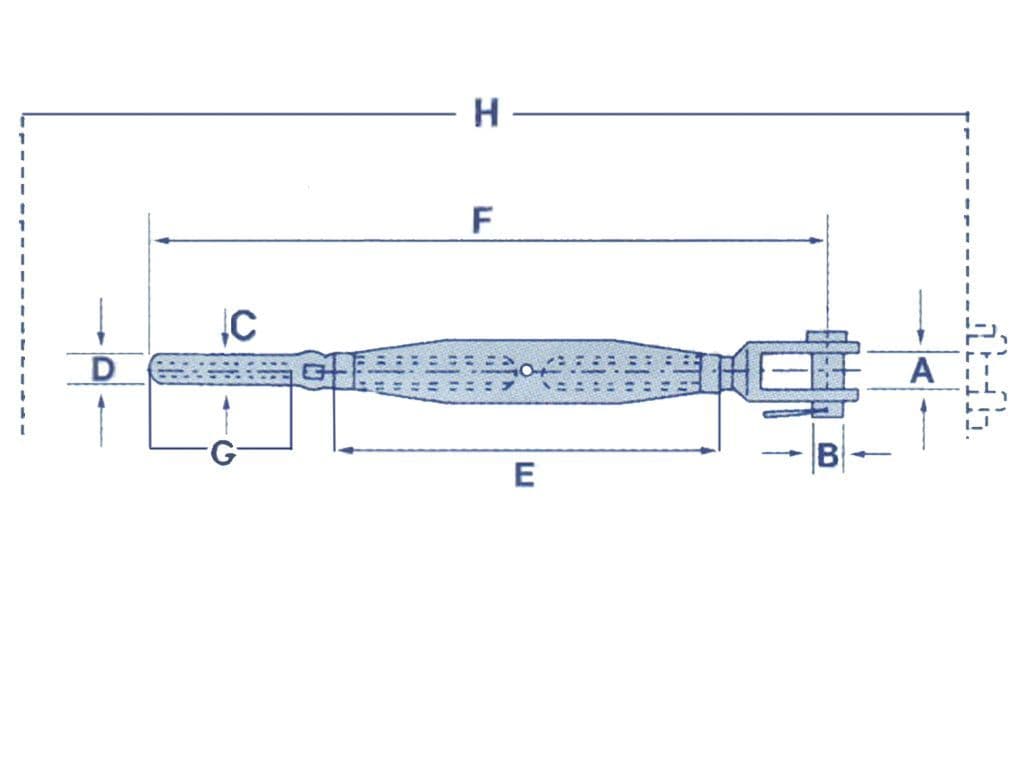

Product Code	A (MM)	B (MM)	C (MM)	D (MM)	E (MM)	F (MM)	G (MM)	H (MM)
SFSSTR05	6	5	5.5	2.5	87	151	34	220
SFSSTR06	8.5	6	6	3	103	178	45	255
SFSSTR06A	7.5	6	7.5	4	104.5	188	47	270
SFSSTR08	11	8	8	4	120	205	50	295
SFSSTR08A	10.5	8	9	5	118	197	52	290
SFSSTR10	11.5	9	9	5	138	234	52	338
SFSSTR12	14	12	12.5	6	167	300	66	425
SFSSTR14	14	12	14	7	185	318	71	457
SFSSTR16	17	16	16	8	190	370	80	530
SFSSTR20	20	19	18	10	240	410	90	595

Our range of Stainless Steel Rigging Screws with a Jaw at one end, and a swage at the other are an ideal asset to your rigging setup. These are manufactured from Grade 316 Stainless Steel, which means they will provide the best in rust protection.

Specifications

Thread Diameter

5MM

Wire Diameter

2.5MM

Product Code

SFSSTR05

Weight

0.1kg

Delivery & Returns

Delivery is free for all orders over £50. Otherwise, delivery is depending on the items you plan to purchase.Once your product has shipped, it usually takes 2 to 3 business days in UK, 3 to 8 in Europe. 5 to 15 for the rest of the world. You can return your product up to 14 days after receiving your order. Please make sure that the products are not used or damaged.

Customer Reviews

Stainless Steel Rigging Screw Jaw & Swage Terminal M5 (2.5MM Wire Rope Cable Railing Turnbuckle)

Item in Stock

Product Code SFSSTR05

Excellent for straining wires on handrails.
