Product Description

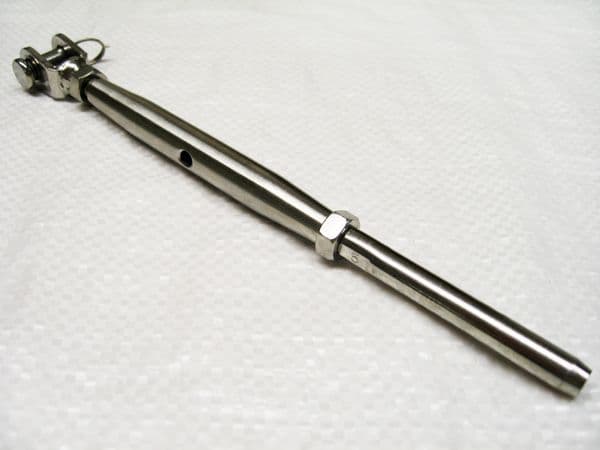

10MM Rigging Screw with Jaw And Swage Terminal

Thread Diameter - 10MM
Wire Diameter - 5MM

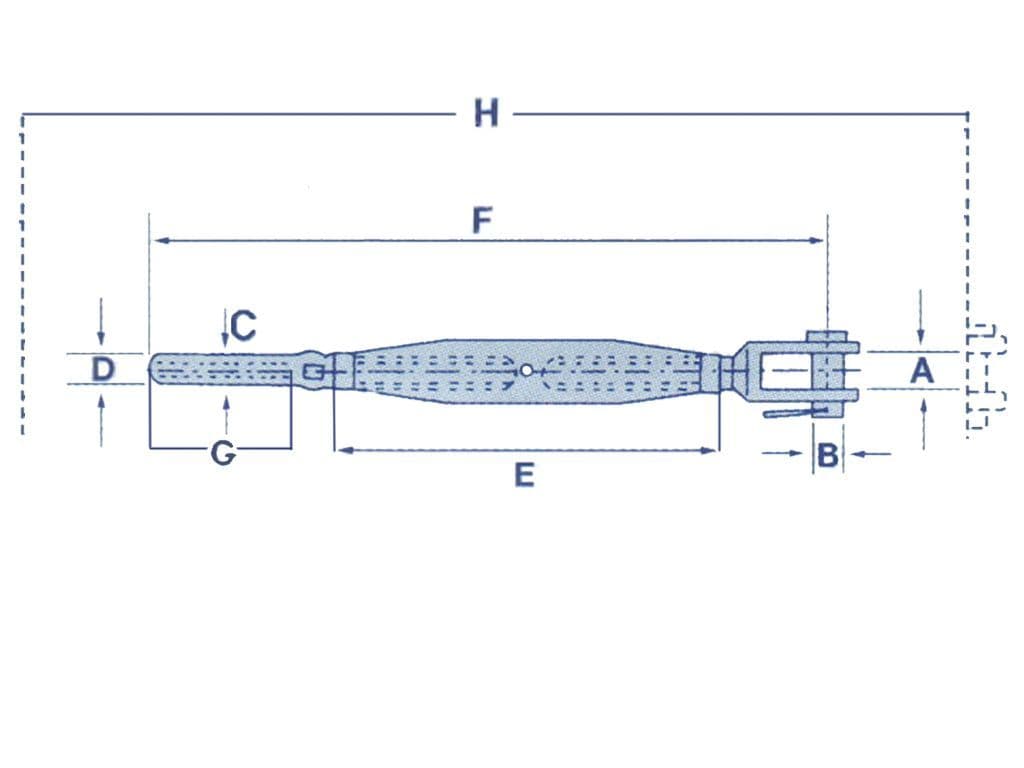

Product Code	A (MM)	B (MM)	C (MM)	D (MM)	E (MM)	F (MM)	G (MM)	H (MM)
SFSSTR05	6	5	5.5	2.5	87	151	34	220
SFSSTR06	8.5	6	6	3	103	178	45	255
SFSSTR06A	7.5	6	7.5	4	104.5	188	47	270
SFSSTR08	11	8	8	4	120	205	50	295
SFSSTR08A	10.5	8	9	5	118	197	52	290
SFSSTR10	11.5	9	9	5	138	234	52	338
SFSSTR12	14	12	12.5	6	167	300	66	425
SFSSTR14	14	12	14	7	185	318	71	457
SFSSTR16	17	16	16	8	190	370	80	530
SFSSTR20	20	19	18	10	240	410	90	595

Our range of Stainless Steel Rigging Screws with a Jaw at one end, and a swage at the other are an ideal asset to your rigging setup. These are manufactured from Grade 316 Stainless Steel, which means they will provide the best in rust protection.

Specifications

Product Code

SFSSTR10

Weight

0.25kg

Delivery & Returns

Delivery is free for all orders over £50. Otherwise, delivery is depending on the items you plan to purchase.Once your product has shipped, it usually takes 2 to 3 business days in UK, 3 to 8 in Europe. 5 to 15 for the rest of the world. You can return your product up to 14 days after receiving your order. Please make sure that the products are not used or damaged.

Customer Reviews

Stainless Steel Rigging Screw Jaw & Swage Terminal M10 (5MM Wire Rope Railing Turnbuckle)

Item in Stock

Product Code SFSSTR10

Our Stainless Steel Screw Jaw Rigging Terminal Has Great rust prevention And Is Perfect For Use On Boats.

Order within to get it by .

Product Description

10MM Rigging Screw with Jaw And Swage Terminal

Specifications

Customer reviews

Delivery & Returns

Stainless Steel Rigging Screw Jaw & Swage Terminal M10 (5MM Wire Rope Railing Turnbuckle)
