Product Description

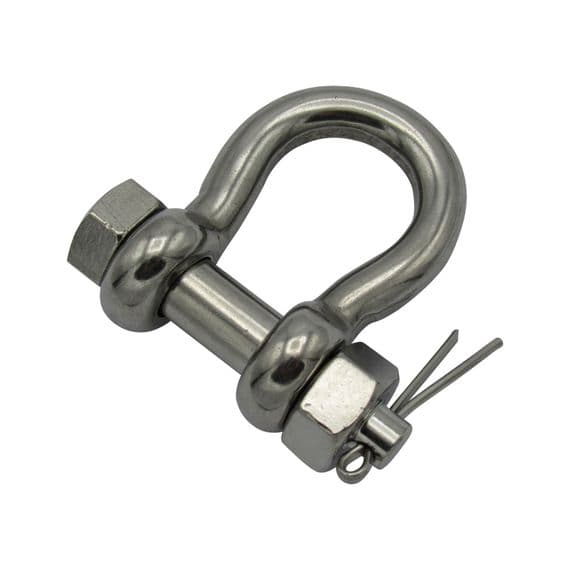

Bow Shackle with Safety Bolt 2 Ton 12MM x 16MM

Material: 316 Grade Stainless Steel (A4)

Safe Working Load - 2 Ton

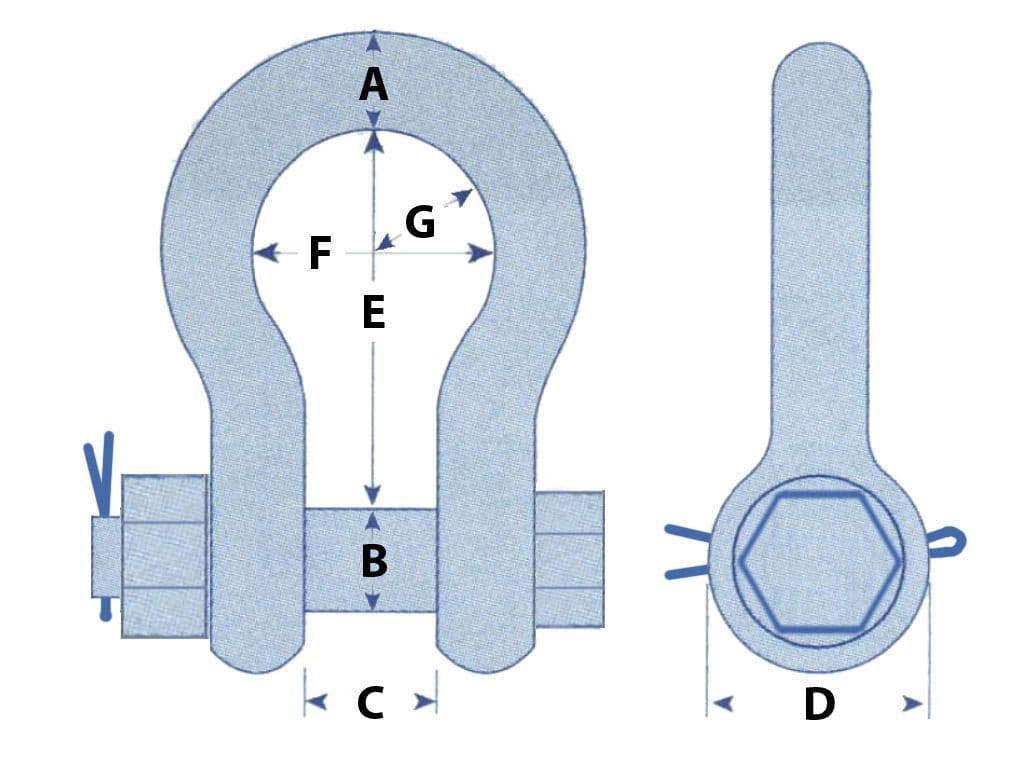

Product Code A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM) H (MM)
SFSSLRB1 9.7 12 17.9 23.8 37.2 26.2 13.1 65
SFSSLRB2 12 16 21 30.5 48 33 16.5 83.5
SFSSLRB3 15.5 19.5 27 39 61 43 21.5 104.5
SFSSLRB4 18.5 21 37.5 42.5 74 53 26.5 123.5
SFSSLRB5 21.5 24 33.5 51.5 82.5 56.5 28 141
SFSSLRB6 25 27.5 39.5 57.5 95 65.5 32.5 160

Safety Factor: 3.5:1

They Have A High Factor Of Safety To Ensure Optimum safety When In Use.

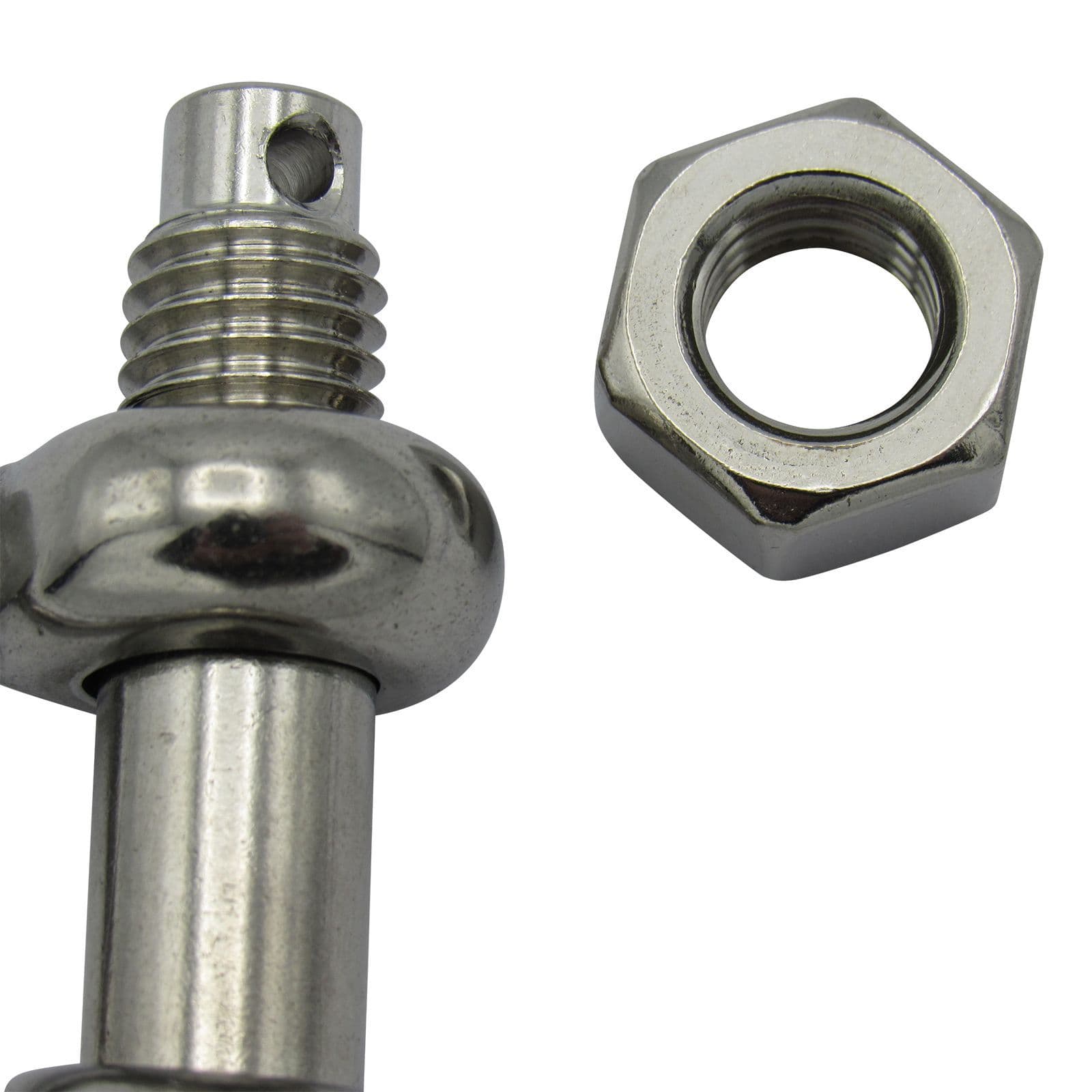

These Stainless Steel Dee Shackles With Safety Pins Have A Variety Of Different Uses. The Pins On These Shackles Are Safety (Anchor) Pins, They Are Better For Safety As They Cannot Come Loose Accidently.

Test Certificate Supplied (Sent Via Email)

*Please Note We Supply A Huge Variety Of Lifting Equipment*

*** FREE DELIVERY ***

Specifications

Product Code
SFSSLRB2
Weight
0.34kg

Customer Reviews

Stainless Steel Bow Shackle with Safety Pin 2 Ton 12MM (Marine Lifting Load Rated)

Item in Stock

Product Code SFSSLRB2

This Stainless Steel Bow Shackle Has A Safety Pin For Added User Safety.

Order within to get it by .
