Product Description

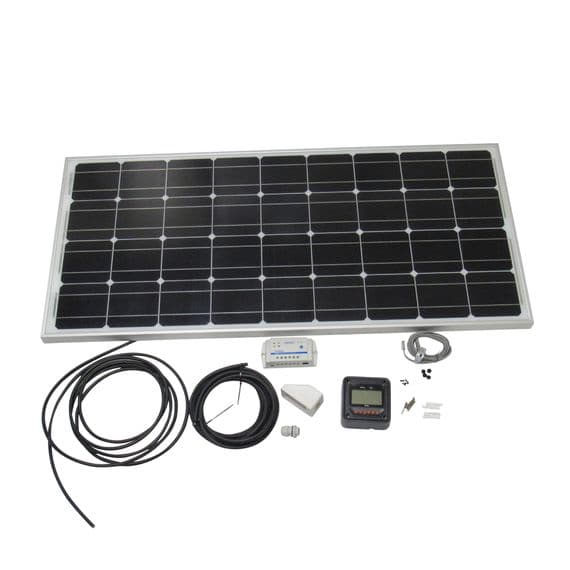

100 Watt and 150 Watt Solar Panel

These amazing solar panels are a great asset for those looking to make their caravan or motorhome more eco-friendly. They can also allow you to stay longer in even the remotest of locations as there is no requirement for you to be near an electric hook-up point. Solar panels work with light meaning that they can be used during daylight hours all years round.

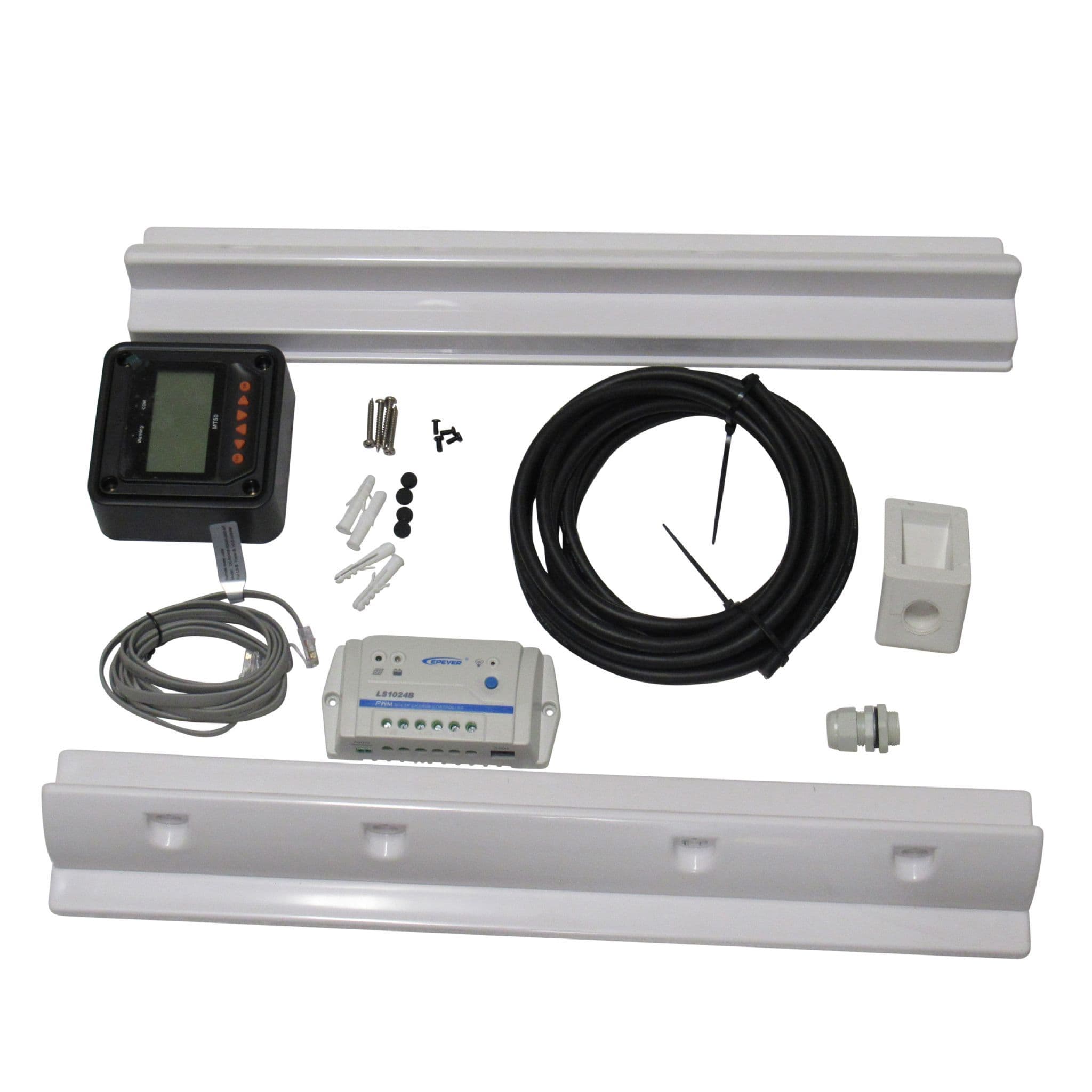

Our Solar Panel Kits come complete with everything that you need for installation including a 5M cable, remote meter, solar charge controller, roof cable box and mounting brackets. The remote meter allows you to monitor the amount of charge remaining in your batteires and it is very user friendly. It has an easy to read backlit display, and possesses an audible fault alarm/indicator. This provides you with your real time usage statistics, making usage monitoring a breeze.

The solar charge controller gives you three charging options: bulk, boost/equalize and float to help keep your battery in peak condition. These also have a blocking diode so the solar panel will not draw power or discharge the battery when not in use.

Not only can our solar panels be roof mounted, but can also be free standing/ They're suitable for use almost anywhere including in your caravan, motorhome boat, or even at home.

All you need is light!

This Should Be Installed By A Competent Installer.

Specifications

Power
100 Watt (Max Rated)
Power Tolerance
+/- 3%
Max Power Voltage
18.5V
Max Power Current
8.2 AMP
Open Circuit Voltage
21.85V
Closed Circuit Current
9.07A
Short Circuit Current
8.83A
Max System Voltage
1000V
Nominal Operating Cell Temperature
47 +/- 2°C
Bypass Diodes
2
Solar Panel
1470MM (L) X 680MM (W) X 35MM (H)
Remote Monitor
115MM (L) X 115MM (W) X 45MM (H)
Solar Charge Controller
130MM (L) X 35MM (W) X 35MM (H)
Roof Cable Box
90MM (L) X 50MM (W) X 50MM (H)
Mounting Brackets
540MM (L) X 95MM (W) X 60MM (H)
PU Cable Length
5 Metres
Product Code
SFZZLWSP100S
Weight
14.6kg
