Single Blocks in 0.5T, 1T, 2T, 3T, 4T, 5T or 6T with Swivel Hook or Swivel Eye

Wire Sizes: 8MM, 10MM, 13MM, 16MM, 22MM & 25MM

Safe Working Loads: 0.5 Ton, 1 Ton, 1.5 Ton, 2 Ton, 3 Ton, 4 Ton, 5 Ton & 6 Ton

Finish - Blue Painted
Factor Of Safety - 4:1

Conforms To: BS EN 13157: 2004 + A1: 2009

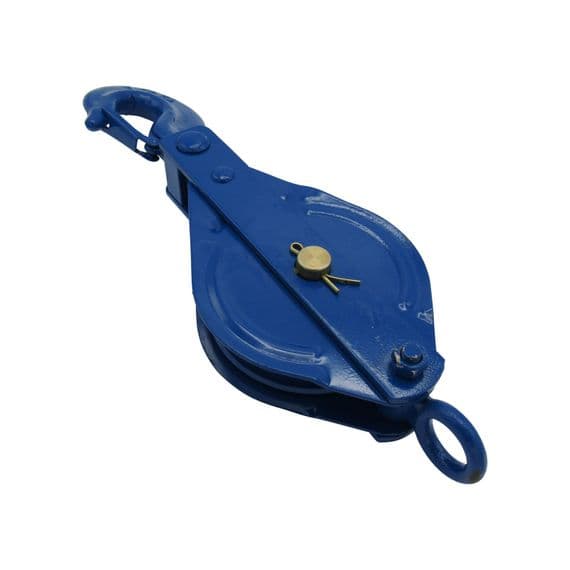

Single Lifting Block with Eye Dimensions

Product Code	Safe Working Load	Suits Rope (MM)	A(MM)	B(MM)	C(MM)	D(MM)	E(MM)	F(MM)	G(MM)
SFSBE075	0.5 Ton	8	282	75	51	21	87	22.5	32
SFSBE100	1 Ton	10	345	100	62	20.5	112	26.5	38
SFSBE125	1.5 Ton	13	405	125	56	27	140	29.5	42
SFSBE150	2 Ton	16	450	150	78	27.5	170	35	51.5
SFSBE200	4 Ton	22	635	200	114	27.5	220	49	81
SFSBE250	5 Ton	22	745	250	136	35	275	49.5	83.5
SFSBE300	6 Ton	25	840	300	150	36	330	62	99

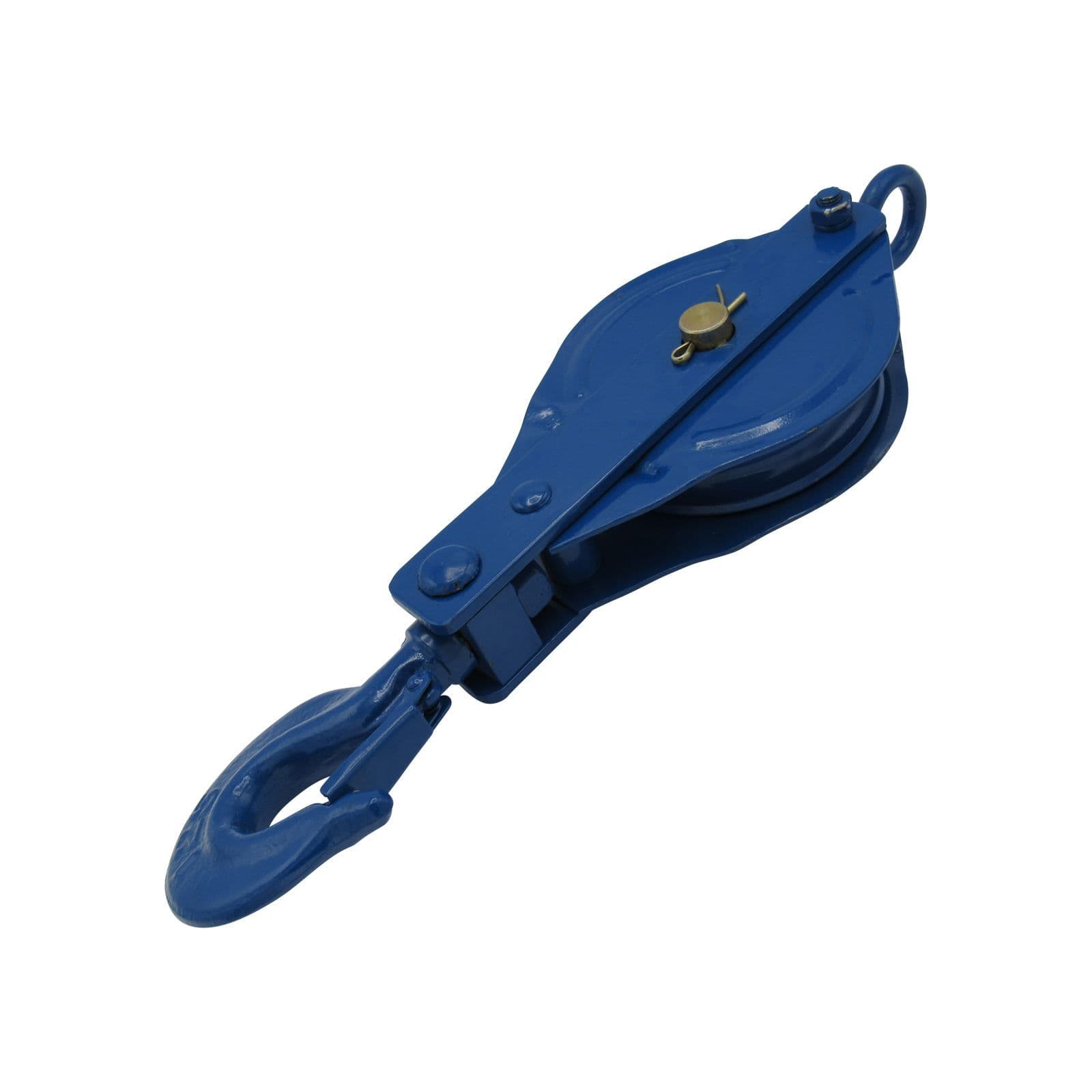

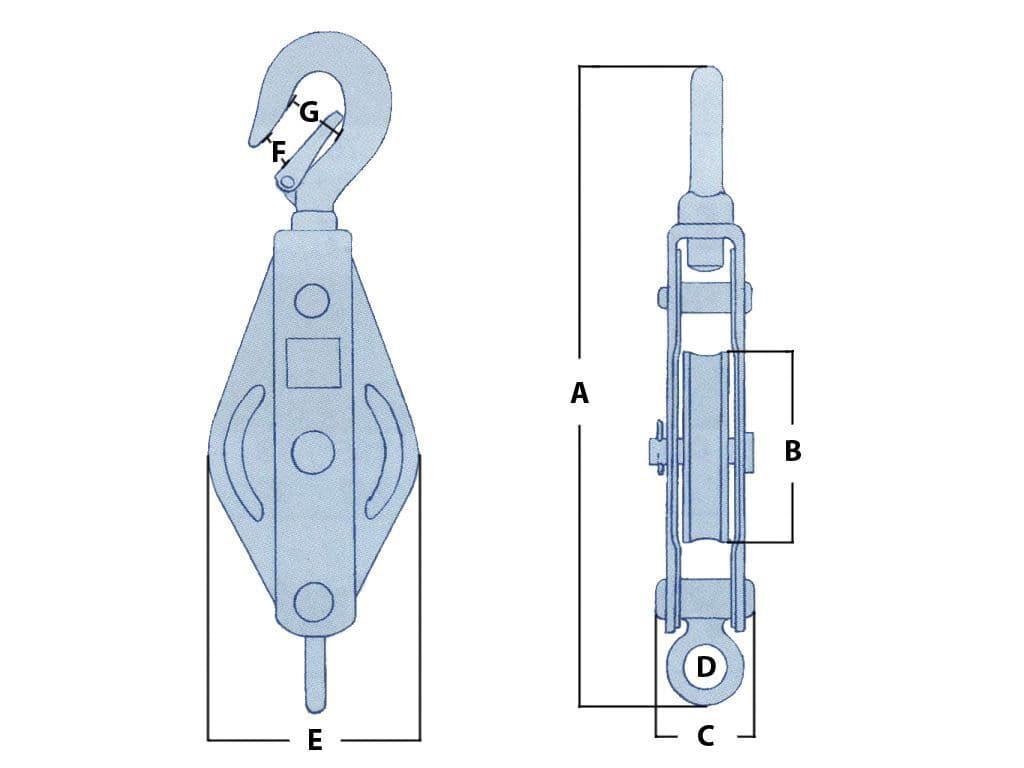

Single Lifting Block with Hook Dimensions

Product Code	Safe Working Load	Suits Rope (MM)	A(MM)	B(MM)	C(MM)	D(MM)	E(MM)	F(MM)	G(MM)
SFSBH100	1 Ton	10	345	100	61	20.5	112	18.5	27
SFSBH125	1.5 Ton	13	425	125	59	26	140	20	30
SFSBH150	2 Ton	16	485	150	69	27	170	30	40
SFSBH175	3 Ton	19	575	175	92	23	200	28	42
SFSBH200	4 Ton	22	675	200	113	27	220	33	46
SFSBH250	5 Ton	22	800	250	135	35	275	50	61
SFSBH300	6 Ton	26	900	300	156	35.5	370	58	66

Pulley Blocks Are Used For Various Lifting And Towing Applications. These Can Also Be Used For Re-Directing Rope.

Test Certificate Included (Sent via eMail)

Specifications

Wire Size

10MM

Sheave Size

100MM

Product Code

SFSBH075

Weight

Delivery & Returns

Delivery is free for all orders over £50. Otherwise, delivery is depending on the items you plan to purchase.Once your product has shipped, it usually takes 2 to 3 business days in UK, 3 to 8 in Europe. 5 to 15 for the rest of the world. You can return your product up to 14 days after receiving your order. Please make sure that the products are not used or damaged.

Customer Reviews

Single Sheave Lifting Blocks Swivel Eye or Swivel Hook from 0.5 Ton to 6 Ton

Item in Stock

Product Code SFSBH075

This Single Block With Swivel Eye Is Great For Various Lifting Uses.

Safe Working Load

Hook or Eye

Order within to get it by .

Product Description

Single Blocks in 0.5T, 1T, 2T, 3T, 4T, 5T or 6T with Swivel Hook or Swivel Eye

Specifications

Customer reviews

Delivery & Returns

Single Sheave Lifting Blocks Swivel Eye or Swivel Hook from 0.5 Ton to 6 Ton
