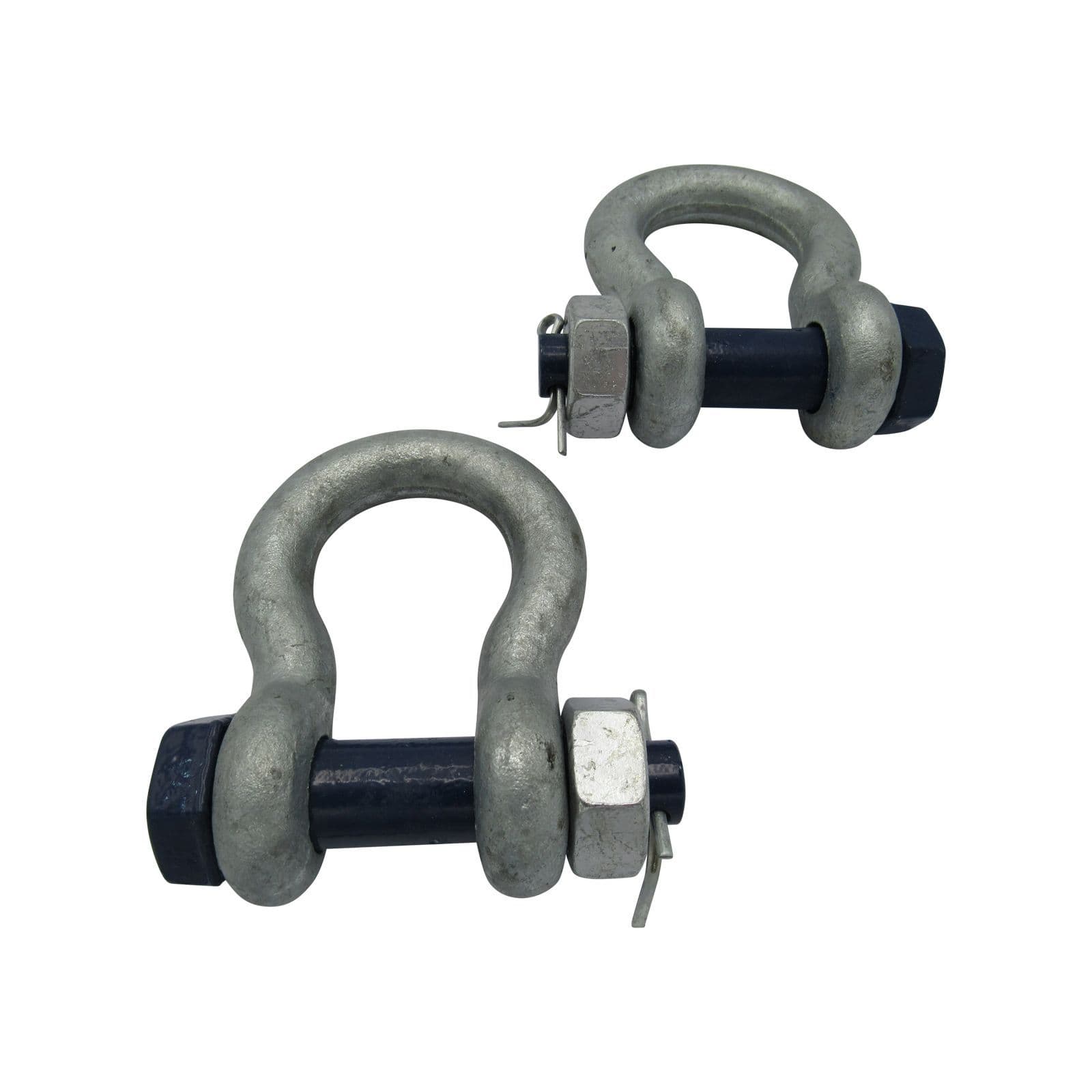

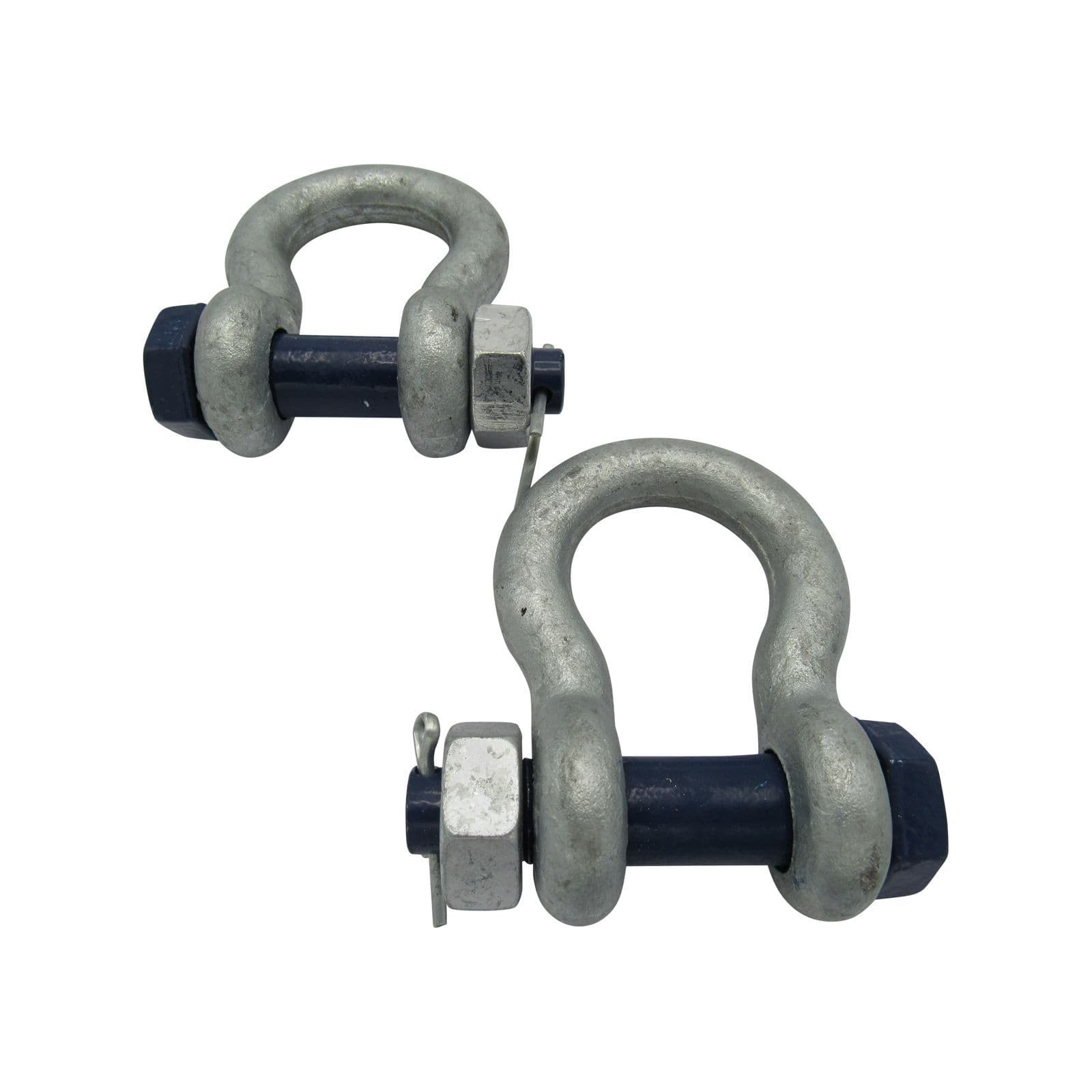

Bow Shackles With Safety Pin (US Specification)

Safety Pin Bow Shackles X2 - 2 Ton Galvanised 16MM 2000KG Omega

X2 2 Ton Safety Screw Pin Bow Shackles | SecureFix Direct

Safety Pin Bow Shackles X2 - 2 Ton Galvanised 16MM 2000KG Omega

£6.49
Stock Status: In Stock
Galvanised for corrosion protection and a safety pin for extra peace of mind. For all your lifting needs.
You Will Earn 6 points with this purchase
0

2T Bow Shackles with Safety Screw Pin


US Federal Specification RR-C-27IDIV

Body Finish: Hot Dipped Galvanised

Conforms To: BS EN 13889: 2003 + A1: 2008

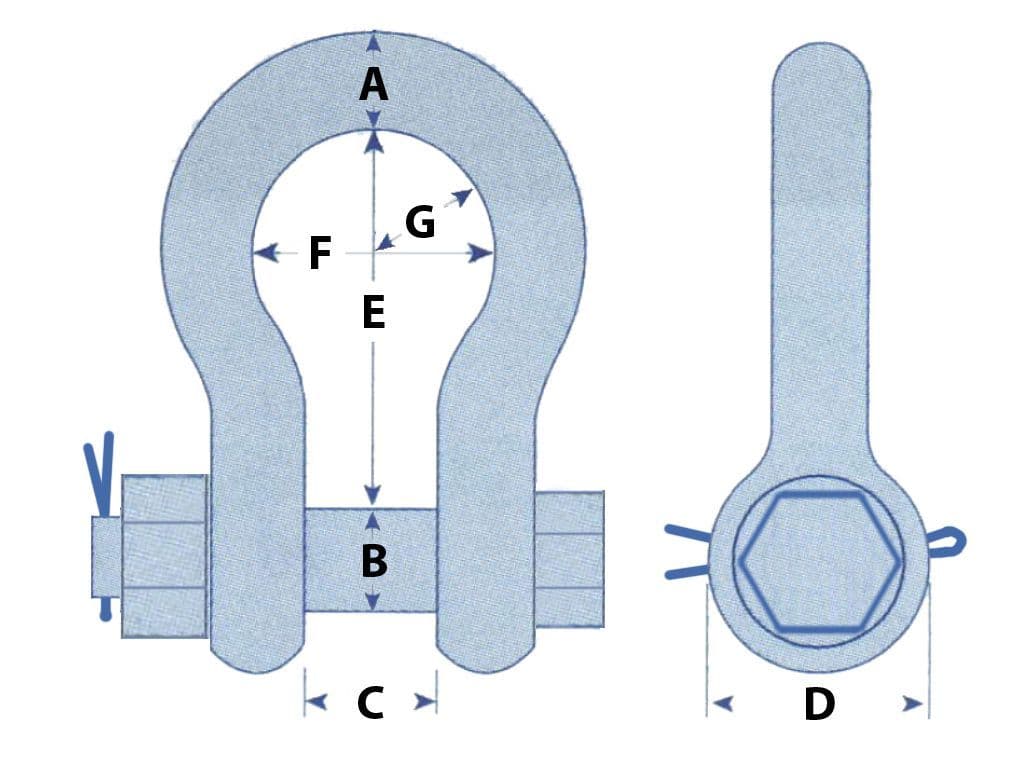

Product Code SWL (Ton) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM)
SFUSSAB0.5 0.5 6.5 8.2 13 17.7 28.7 18.5 9.25
SFUSSAB0.75 0.75 8.2 9.6 15 21 30.5 21 10.5
SFUSSAB1 1 9.9 11 17 25.5 35 25.5 12.75
SFUSSAB1.5 1.5 11 13 20 26.5 41.5 29 14.5
SFUSSAB2 2 1 15.5 21 30.5 47 33 16.5
SFUSSAB3.25 3.25 16 18.5 30 39.5 60.5 42.5 21.25
SFUSSAB4.75 4.75 19 22 33.5 46 71 49.5 24.75
SFUSSAB6.5 6.5 22.5 25 37.5 54 84.5 57 28.5
SFUSSAB8.5 8.5 25.5 28.5 42.5 59 93 66.5 33.25
SFUSSAB9.5 9.5 29.5 32 43.5 66.5 106 71 35.5
SFUSSAB12 12 33 35.5 52 75.5 115.5 80.5 40.25
SFUSSAB13.5 13.5 36 38.5 62 82.5 135 91.5 45.75
SFUSSAB17 17 39 42 64 92 149.5 97 48.5
SFUSSAB25 25 46.5 49.5 80 96.5 180 127 63.5
SFUSSAB35 35 51.4 55.1 87.6 128 195 140 71.58
SFUSSAB55 55 66.8 70.1 120.8 145 170 180 93.3
SFUSSAB85 85 79 80 127 160 335 190 95
SFUSSAB120 120 102 95 126.5 207 375 227.5 113.75
SFUSSAB150 150 101 108 144 231 370 271 135.5

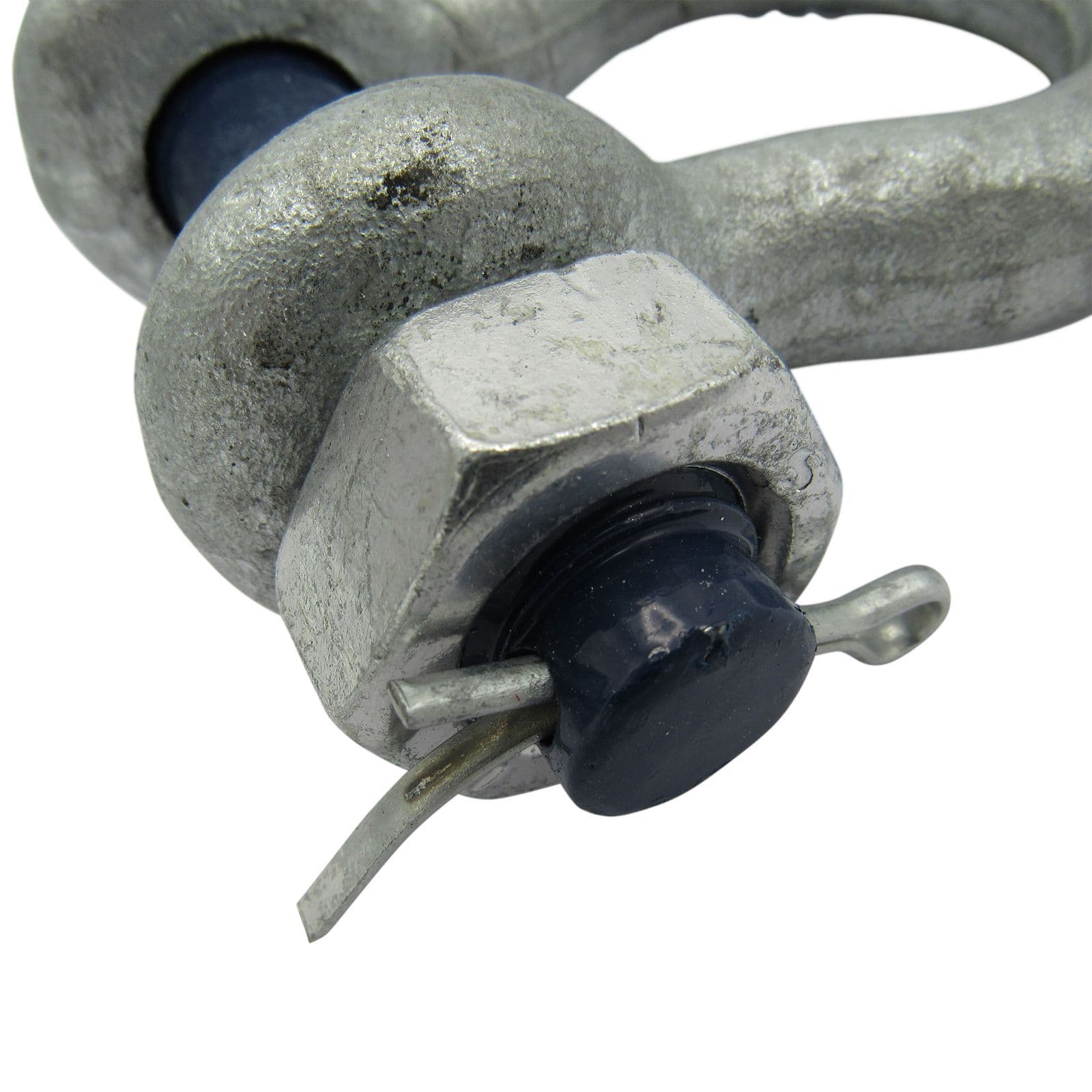

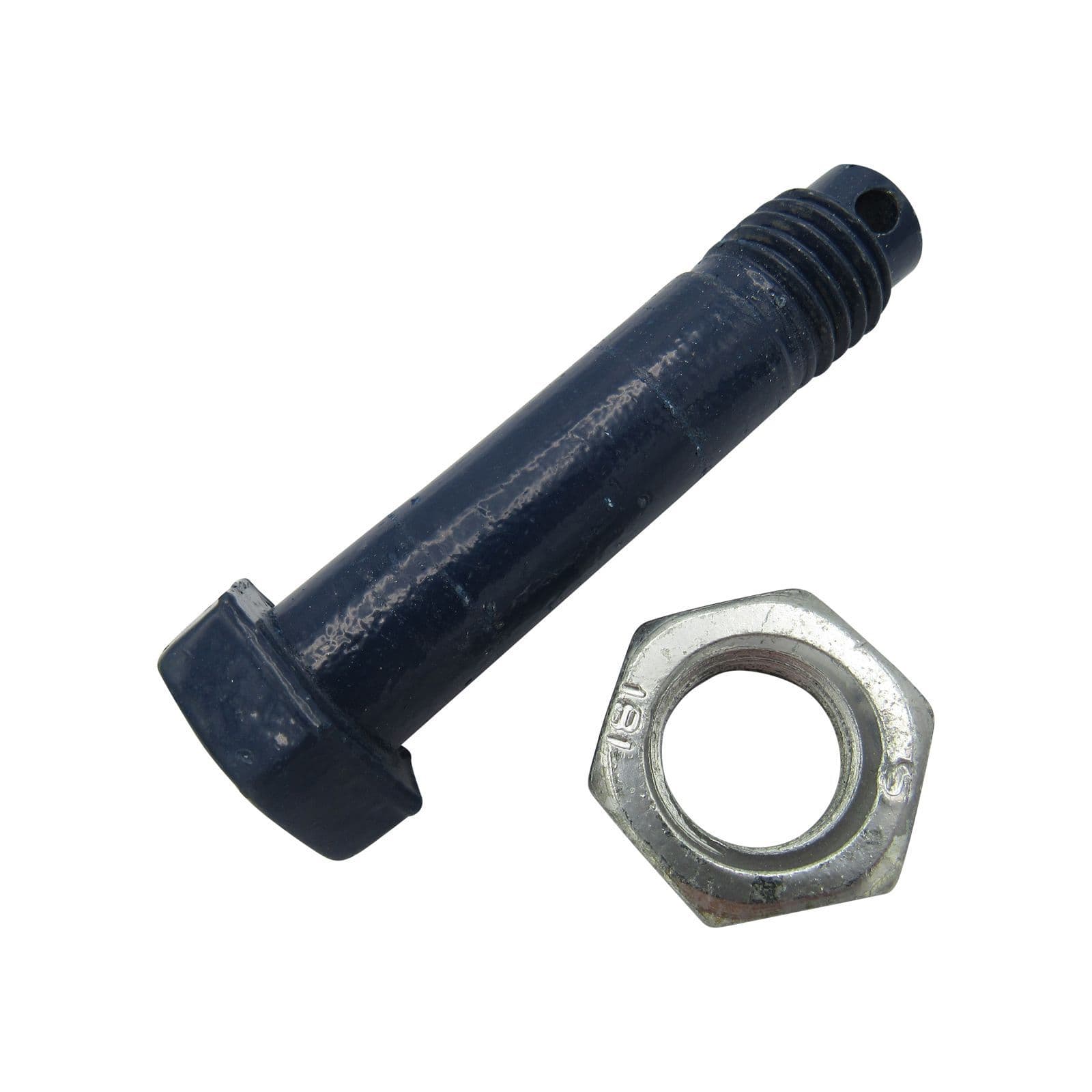

Our Drop Forged Bow Shackles have a safety factor of 5:1. These are fitted with a blue painted safety pin which prevents the pin from slipping, for that extra security and peace of mind.


Why a Bow Rather Than a Dee Shackle?

Bow shackles can be used for a variety of applications including lifting and towing, the bow shape allows for a wider lifting point compared to a Dee shackle. Unlike a Dee shackle, Bow shackles can be used for both in line lifting, and for lifting at up to a 45 degree angle.

A galvanised finish provides good resistance to rust keeping the shackle in optimum condition for longer than its self colour counterpart.

*Please note colour can vary to picture*

Test Certificate Supplied (Sent Via Email)
  • Product Code:
    SFUSSAB2
  • Product Weight:
    0.7kg
