Product Description

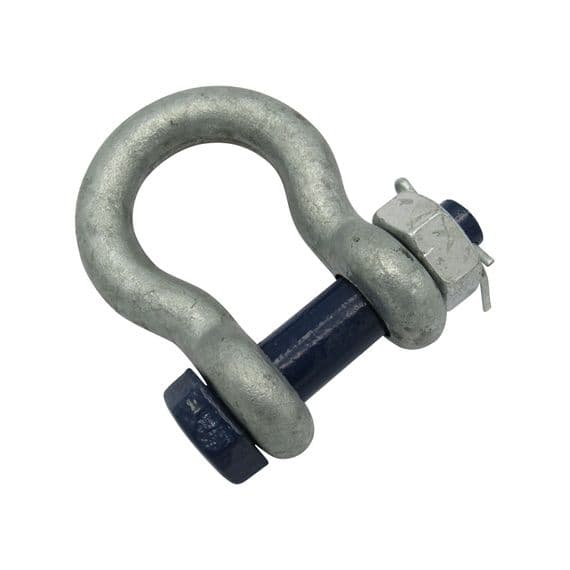

4.75T Bow Shackle with Safety Screw Pin

US Federal Specification RR-C-27IDIV

Body Finish: Hot Dipped Galvanised

Conforms To: BS EN 13889: 2003 + A1: 2008

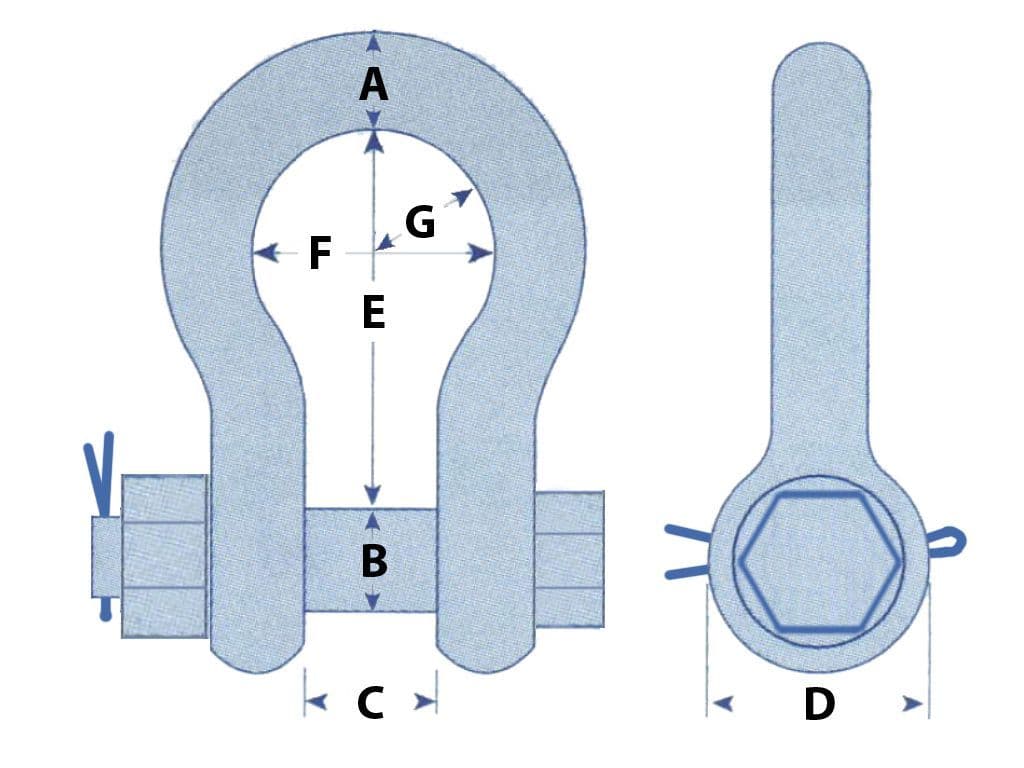

Product Code	SWL (Ton)	A (MM)	B (MM)	C (MM)	D (MM)	E (MM)	F (MM)	G (MM)
SFUSSAB0.5	0.5	6.5	8.2	13	17.7	28.7	18.5	9.25
SFUSSAB0.75	0.75	8.2	9.6	15	21	30.5	21	10.5
SFUSSAB1	1	9.9	11	17	25.5	35	25.5	12.75
SFUSSAB1.5	1.5	11	13	20	26.5	41.5	29	14.5
SFUSSAB2	2	1	15.5	21	30.5	47	33	16.5
SFUSSAB3.25	3.25	16	18.5	30	39.5	60.5	42.5	21.25
SFUSSAB4.75	4.75	20	23	32	47	70.5	48.5	24.25
SFUSSAB6.5	6.5	22.5	25	37.5	54	84.5	57	28.5
SFUSSAB8.5	8.5	25.5	28.5	42.5	59	93	66.5	33.25
SFUSSAB9.5	9.5	29.5	32	43.5	66.5	106	71	35.5
SFUSSAB12	12	33	35.5	52	75.5	115.5	80.5	40.25
SFUSSAB13.5	13.5	36	38.5	62	82.5	135	91.5	45.75
SFUSSAB17	17	39	42	64	92	149.5	97	48.5
SFUSSAB25	25	46.5	49.5	80	96.5	180	127	63.5
SFUSSAB35	35	51.4	55.1	87.6	128	195	140	71.58
SFUSSAB55	55	66.8	70.1	120.8	145	170	180	93.3
SFUSSAB85	85	79	80	127	160	335	190	95
SFUSSAB120	120	102	95	126.5	207	375	227.5	113.75
SFUSSAB150	150	101	108	144	231	370	271	135.5

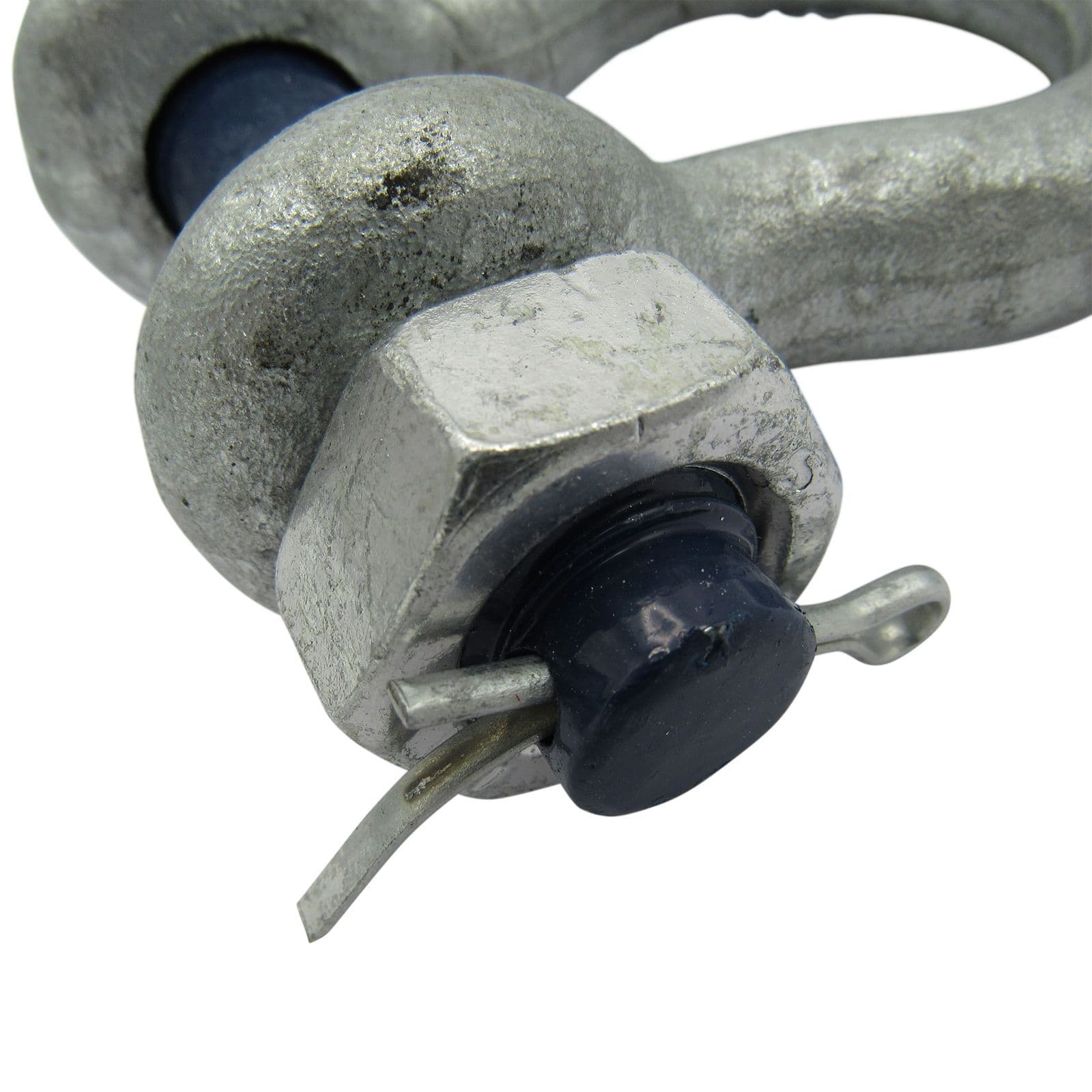

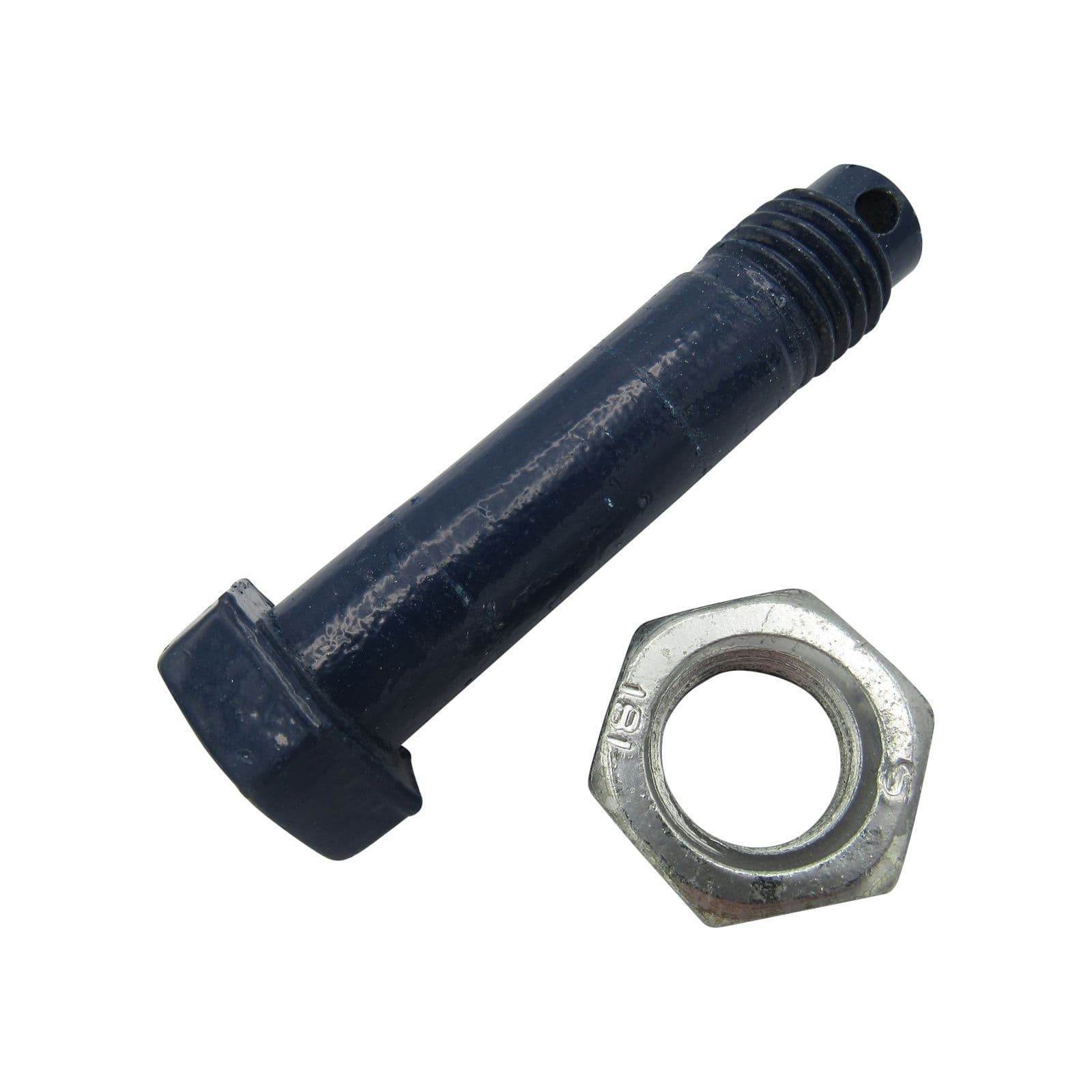

Our Drop Forged Bow Shackles have a safety factor of 5:1. These are fitted with a blue painted safety pin which prevents the pin from slipping, for that extra security and peace of mind.

Why a Bow Rather Than a Dee Shackle?

Bow shackles can be used for a variety of applications including lifting and towing, the bow shape allows for a wider lifting point compared to a Dee shackle. Unlike a Dee shackle, Bow shackles can be used for both in line lifting, and for lifting at up to a 45 degree angle.

A galvanised finish provides good resistance to rust keeping the shackle in optimum condition for longer than its self colour counterpart.

*Please note colour can vary to picture*

Test Certificate Supplied (Sent Via Email)

Specifications

Product Code

SFUSSAB4.75

Weight

1.06kg

Delivery & Returns

Delivery is free for all orders over £50. Otherwise, delivery is depending on the items you plan to purchase.Once your product has shipped, it usually takes 2 to 3 business days in UK, 3 to 8 in Europe. 5 to 15 for the rest of the world. You can return your product up to 14 days after receiving your order. Please make sure that the products are not used or damaged.

Customer Reviews

Safety Pin Bow Shackle - 4.75 Ton Galvanised 22MM 4750KG Omega

Item in Stock

Product Code SFUSSAB4.75

Our US spec Bow Shackle is versatile to suit a variety of applications to connect, lift or tow whatever you need.

Order within to get it by .

Product Description

4.75T Bow Shackle with Safety Screw Pin

Why a Bow Rather Than a Dee Shackle?

Specifications

Customer reviews

Delivery & Returns

Safety Pin Bow Shackle - 4.75 Ton Galvanised 22MM 4750KG Omega

You may also like

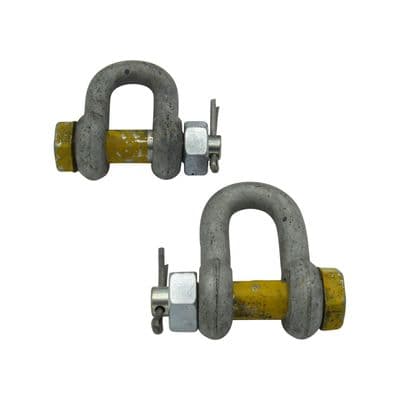

X2 2 Ton Safety Pin Galvanised Dee Shackle - 2000KG Upset Forged Tested Certified

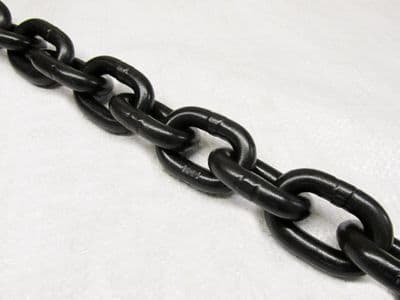

10MM Short Link Lifting Chain Grade 100 (4 Ton Heavy Duty 4T Side Welded)
