17 Ton Safety Screw Pin Bow Shackle | SecureFix Direct

Product Description

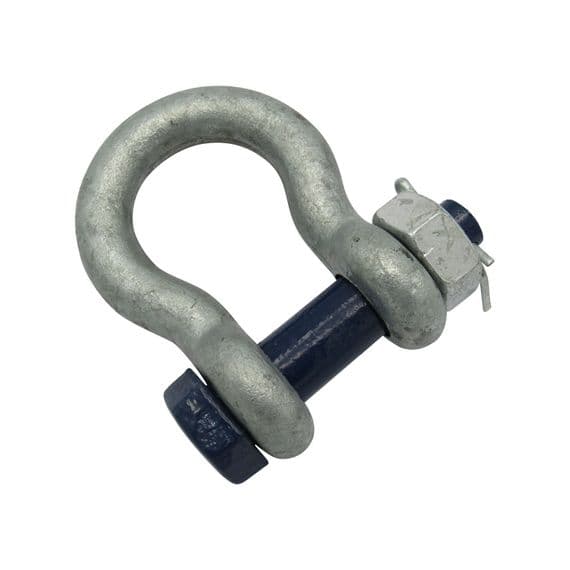

17T Bow Shackle with Safety Screw Pin

US Federal Specification RR-C-27IDIV

Body Finish: Hot Dipped Galvanised

Conforms To: BS EN 13889: 2003 + A1: 2008

Product Code	SWL (Ton)	A (MM)	B (MM)	C (MM)	D (MM)	E (MM)	F (MM)	G (MM)
SFUSSAB0.5	0.5	6.5	8.2	13	17.7	28.7	18.5	9.25
SFUSSAB0.75	0.75	8.2	9.6	15	21	30.5	21	10.5
SFUSSAB1	1	9.9	11	17	25.5	35	25.5	12.75
SFUSSAB1.5	1.5	11	13	20	26.5	41.5	29	14.5
SFUSSAB2	2	1	15.5	21	30.5	47	33	16.5
SFUSSAB3.25	3.25	16	18.5	30	39.5	60.5	42.5	21.25
SFUSSAB4.75	4.75	19	22	33.5	46	71	49.5	24.75
SFUSSAB6.5	6.5	22.5	25	37.5	54	84.5	57	28.5
SFUSSAB8.5	8.5	25.5	28.5	42.5	59	93	66.5	33.25
SFUSSAB9.5	9.5	29.5	32	43.5	66.5	106	71	35.5
SFUSSAB12	12	33	35.5	52	75.5	115.5	80.5	40.25
SFUSSAB13.5	13.5	36	38.5	62	82.5	135	91.5	45.75
SFUSSAB17	17	39	42	64	92	149.5	97	48.5
SFUSSAB25	25	46.5	49.5	80	96.5	180	127	63.5
SFUSSAB35	35	51.4	55.1	87.6	128	195	140	71.58
SFUSSAB55	55	66.8	70.1	120.8	145	170	180	93.3
SFUSSAB85	85	79	80	127	160	335	190	95
SFUSSAB120	120	102	95	126.5	207	375	227.5	113.75
SFUSSAB150	150	101	108	144	231	370	271	135.5

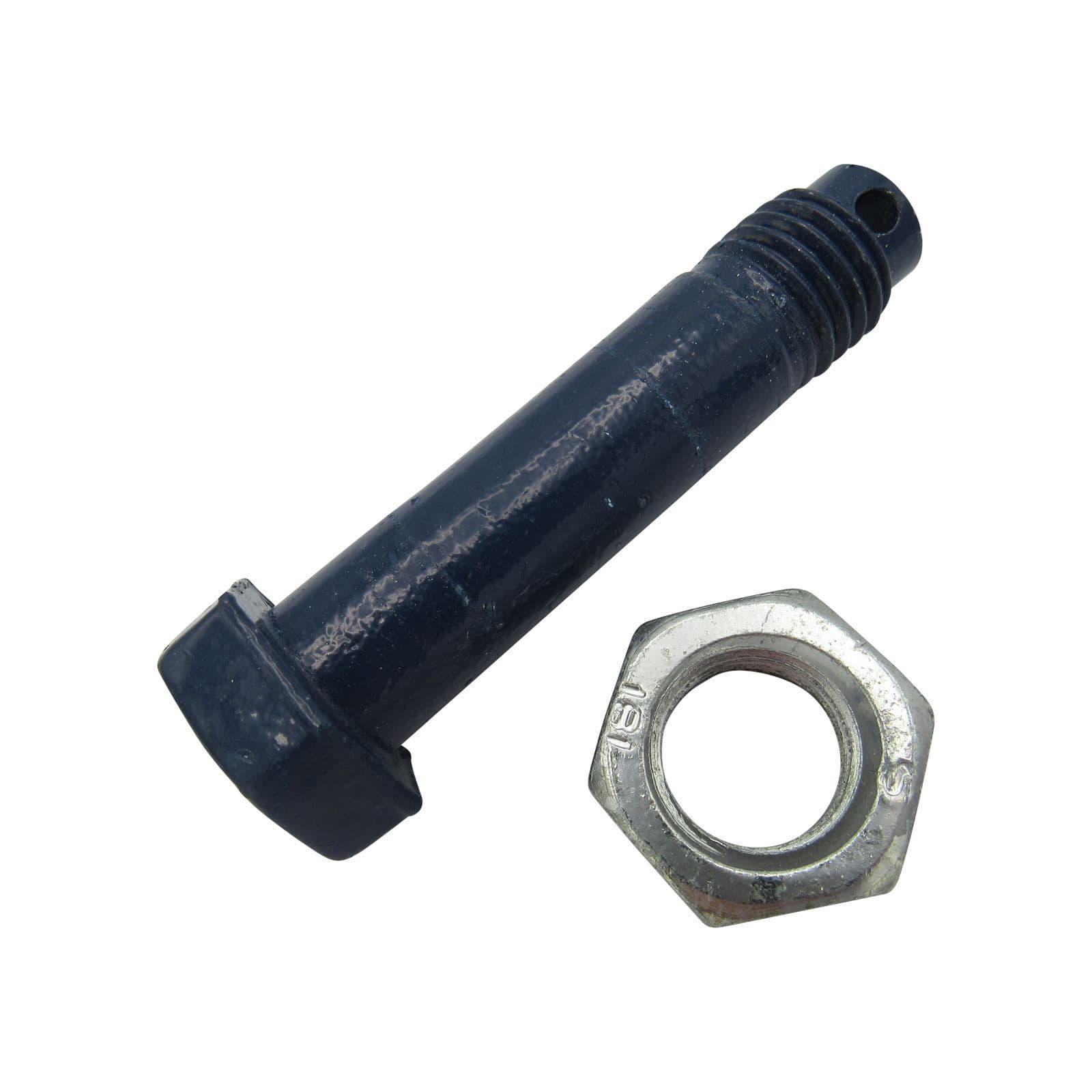

Our Drop Forged Bow Shackles have a safety factor of 5:1. These are fitted with a blue painted safety pin which prevents the pin from slipping, for that extra security and peace of mind.

Why a Bow Rather Than a Dee Shackle?

Bow shackles can be used for a variety of applications including lifting and towing, the bow shape allows for a wider lifting point compared to a Dee shackle. Unlike a Dee shackle, Bow shackles can be used for both in line lifting, and for lifting at up to a 45 degree angle.

A galvanised finish provides good resistance to rust keeping the shackle in optimum condition for longer than its self colour counterpart.

*Please note colour can vary to picture*

Test Certificate Supplied (Sent Via Email)

Specifications

Product Code

SFUSSAB17

Weight

8.54kg
