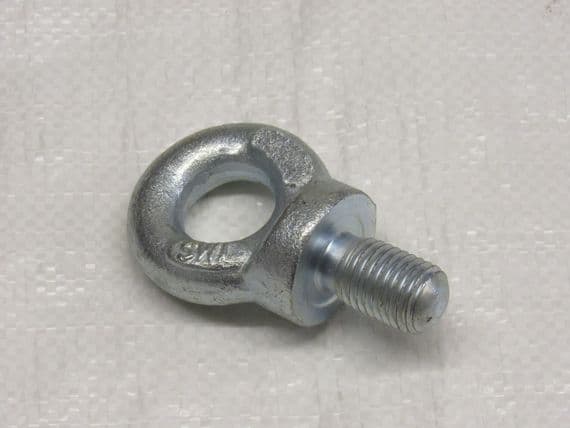

M36 Zinc Plated Lifting Eyebolt | SecureFix Direct

Product Description

36MM 6.3 Ton ZP Threaded Collar Eyebolt

Thread Diameter - 36MM

Conforms To - BS4278

Finish - Zinc Plated

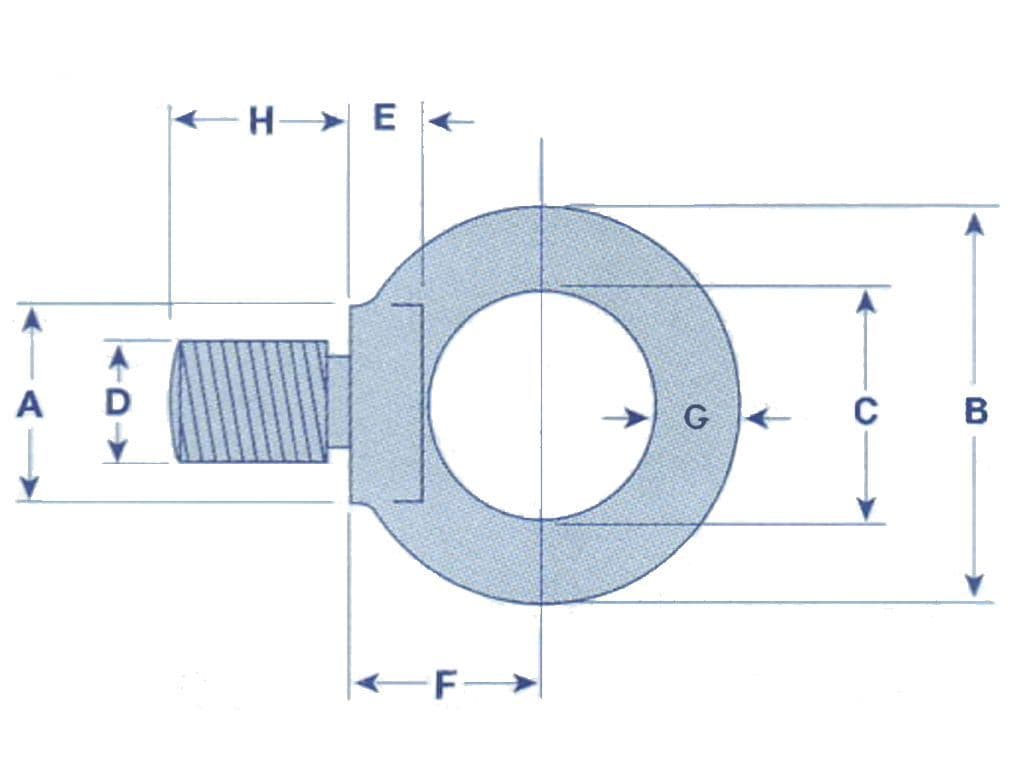

Code	SWL (Ton)	A (MM)	B (MM)	C (MM)	D (MM)	E (MM)	F (MM)	G (MM)	H (MM)	Pitch
SFMCE06	0.1	22	33	15.5	6	8	21	8.5	19	1.00
SFMCE08	0.15	22.5	33	14.5	8	8	20	9	19	1.25
SFMCE10	0.25	22.5	32.5	15	10	9	20	9	19.5	1.50
SFMCE12	0.4	22	33	14	12	9	21	13.5	9	1.75
SFMCE12ZP	0.4	23	32.5	14.5	11.5	9	19	9	19	1.75
SFMCE14	0.5	29	44	20.5	14	14	26	11.5	24.5	2.00
SFMCE16	0.8	29	44	20	16	11	25	12	24	2.00
SFMCE16ZP	0.8	28.5	44.5	20	16	11	26	11.6	25.5	2.00
SFMCE18	1	40	59	26.5	18	15.5	37	16	33.5	2.50
SFMCE20	1.6	40	59	27.5	20	17	36	15.5	33.5	2.50
SFMCE20ZP	1.6	40.5	58.5	27.5	20	16	38.5	16	33	2.50
SFMCE22	1.6	52.5	76.5	35.5	22	18	43.5	21	36	2.50
SFMCE24	2.5	51	76	35	24	22	45	21	40.5	3.00
SFMCE24ZP	2.5	51	76	35	24	22	45	21	40.5	3.00
SFMCE27	2.5	57.5	84	38	27	22.5	52	22.5	46	3.00
SFMCE30	4	67	96.5	43.5	30	27	58	26	53	3.50
SFMCE30ZP	4	64.5	95.5	42.5	30	27	59	27.5	47	3.50
SFMCE33	5	72	106	45	33	27	61	29	61	3.50
SFMCE36	6.3	80	117	54	36	33.5	72	32	64	4.00
SFMCE36ZP	6.3	80	117	54	36	33.5	72	32	64	4.00
SFMCE42	8	98	146	71	42	44	90	37	91	4.50
SFMCE52	12.5	110.5	160.5	77.5	52	79.5	97	48	100	5.00

Our high quality 6.3 Ton Short Shank Zinc Plated Eyebolts are excellent for numerous applications, and are rated to BS4278. They are hugely popular within the lifting industry as they are tested and certified for lifting. They can also be used for inclined lifts, however please note that the SWL will change dependant on the angle of lift.

Test Certificate included (sent via email).

Specifications

Product Code

SFMCE36ZP

Weight

3.11kg

Delivery & Returns

Delivery is free for all orders over £50. Otherwise, delivery is depending on the items you plan to purchase.Once your product has shipped, it usually takes 2 to 3 business days in UK, 3 to 8 in Europe. 5 to 15 for the rest of the world. You can return your product up to 14 days after receiving your order. Please make sure that the products are not used or damaged.

Customer Reviews

M36 Collar Lifting Eyebolt Threaded (36MM Zinc Plated 6.3 Ton)

Item in Stock

Product Code SFMCE36ZP

Our high-quality lifting Eye Bolts suitable for lifting at angles up to 45 degrees .
