Self Colour Bow Nut

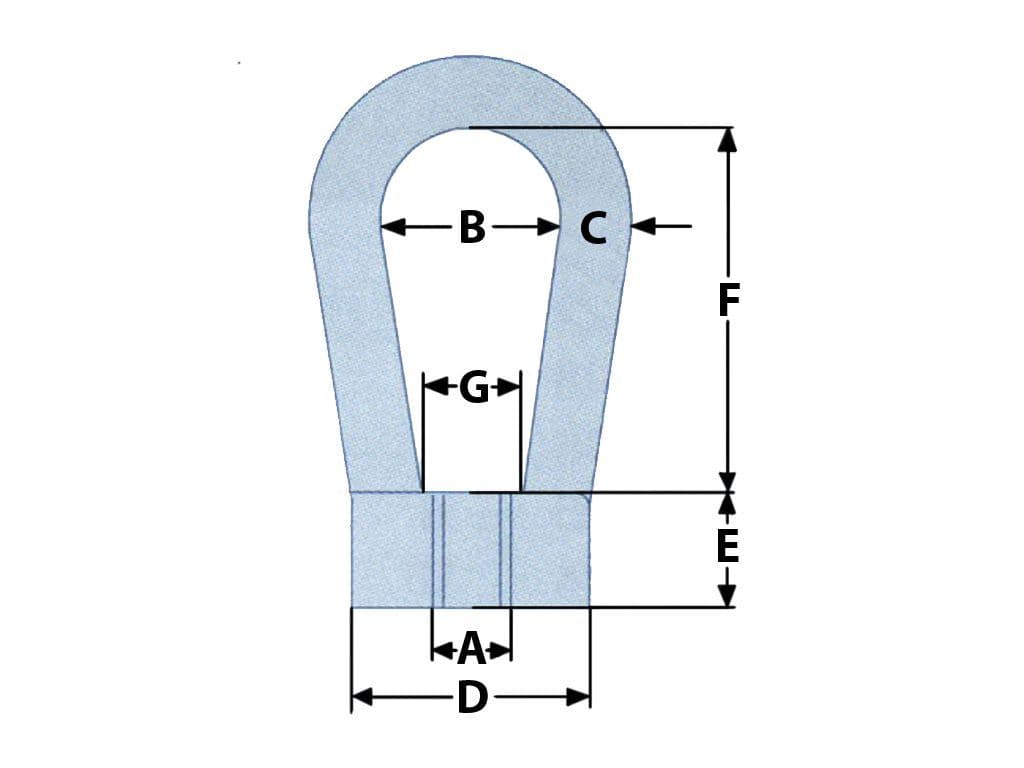

Product Code	A (MM)	B (MM)	C (MM)	D (MM)	E (MM)	F (MM)	G (MM)	Thread Pinch
SFBOW08	7.7	25	11.7	31	16.1	40	16.7	1.25
SFBOW10	9.7	24.7	11.7	30	18.2	40.4	17.6	1.5
SFBOW12	11.8	28.5	13.2	35.2	15.7	46.4	20	1.75
SFBOW16	15.1	28.6	12.8	36.1	17.5	46.7	19.6	2.00
SFIBOW16UNC	14.5	29.4	12.7	39.8	19.3	43.8	20	11 (Threads Per Inch)
SFBOW20	17	38	14	45	24	64	24	2.50
SFBOW24	21.5	47	18	54	31	77.5	26.5	3.00
SFBOW30	28.8	73.4	25.8	67.6	31.1	94	39	3.50
SFBOW36	34.5	74.7	28	67.8	29.3	97.5	39	4.00

These are hugely popular within the lifting industry due to their self colour finish and heavy duty qualities. Self colour allows you to apply your own paint or treatment to the Bow Nut, thus allowing you to adapt it for your lifting purposes.

Conforms To - BS 3974
Test Certification sent via Email.

Specifications

Product Code

SFBOW16

Weight

0.23kg

Delivery & Returns

Delivery is free for all orders over £50. Otherwise, delivery is depending on the items you plan to purchase.Once your product has shipped, it usually takes 2 to 3 business days in UK, 3 to 8 in Europe. 5 to 15 for the rest of the world. You can return your product up to 14 days after receiving your order. Please make sure that the products are not used or damaged.

Customer Reviews

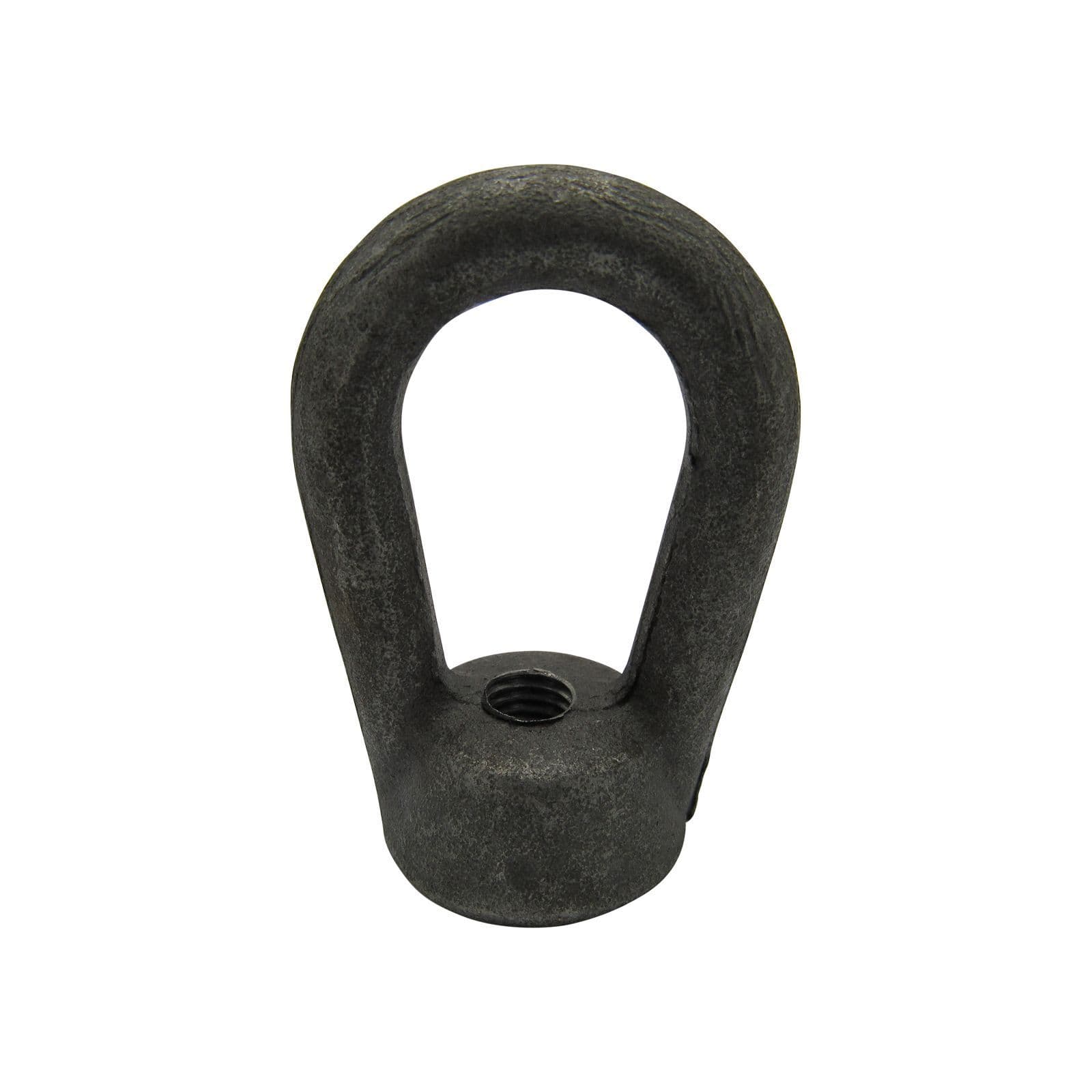

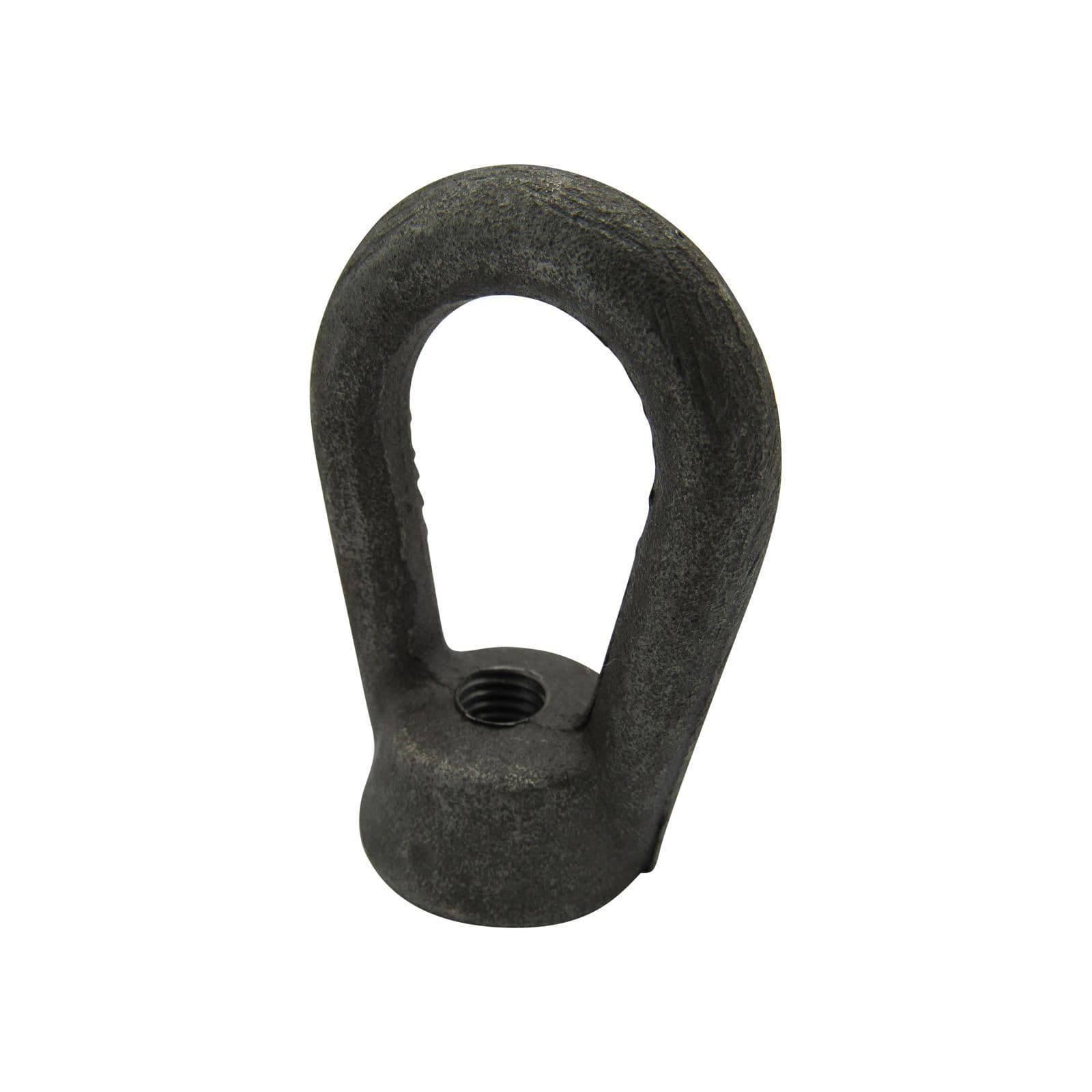

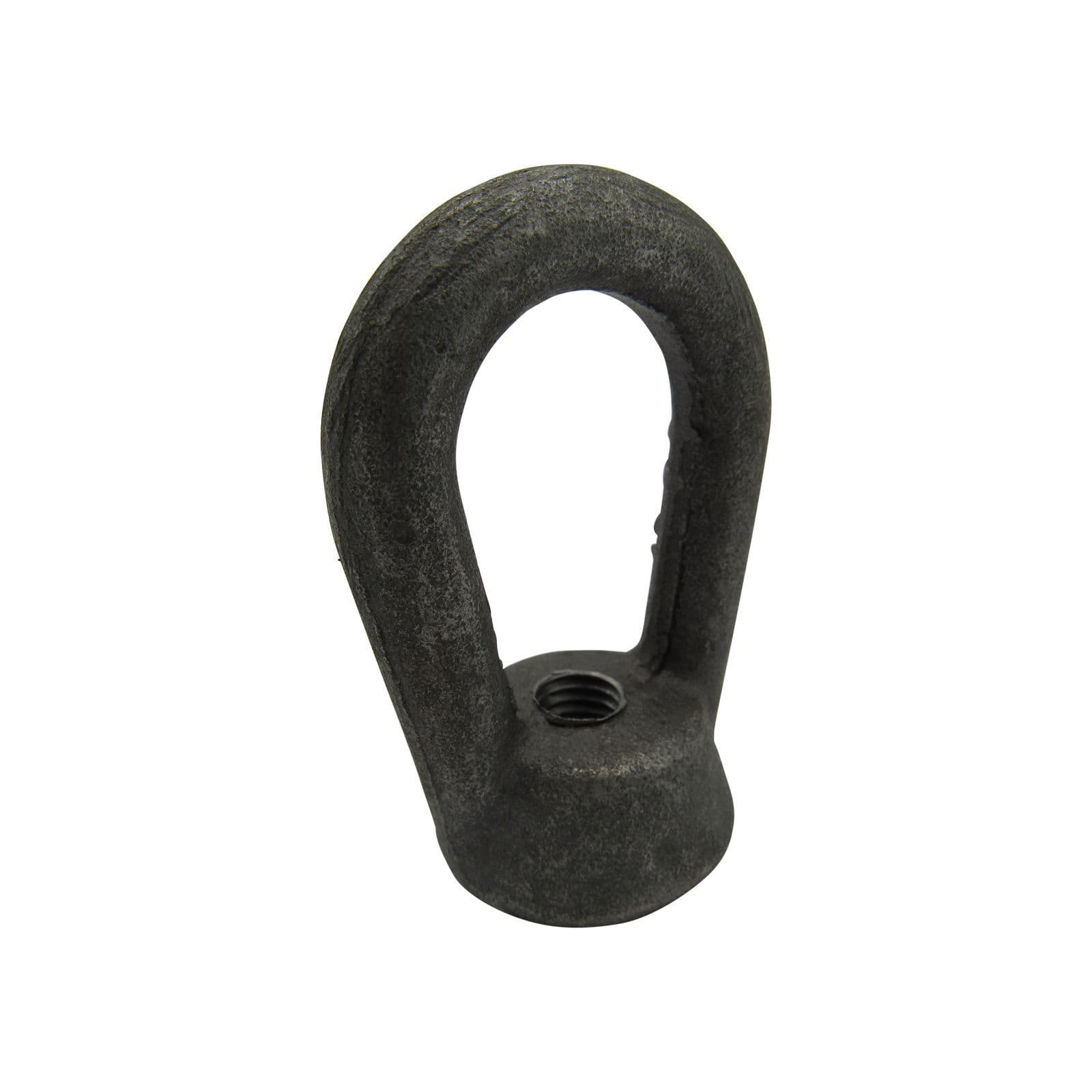

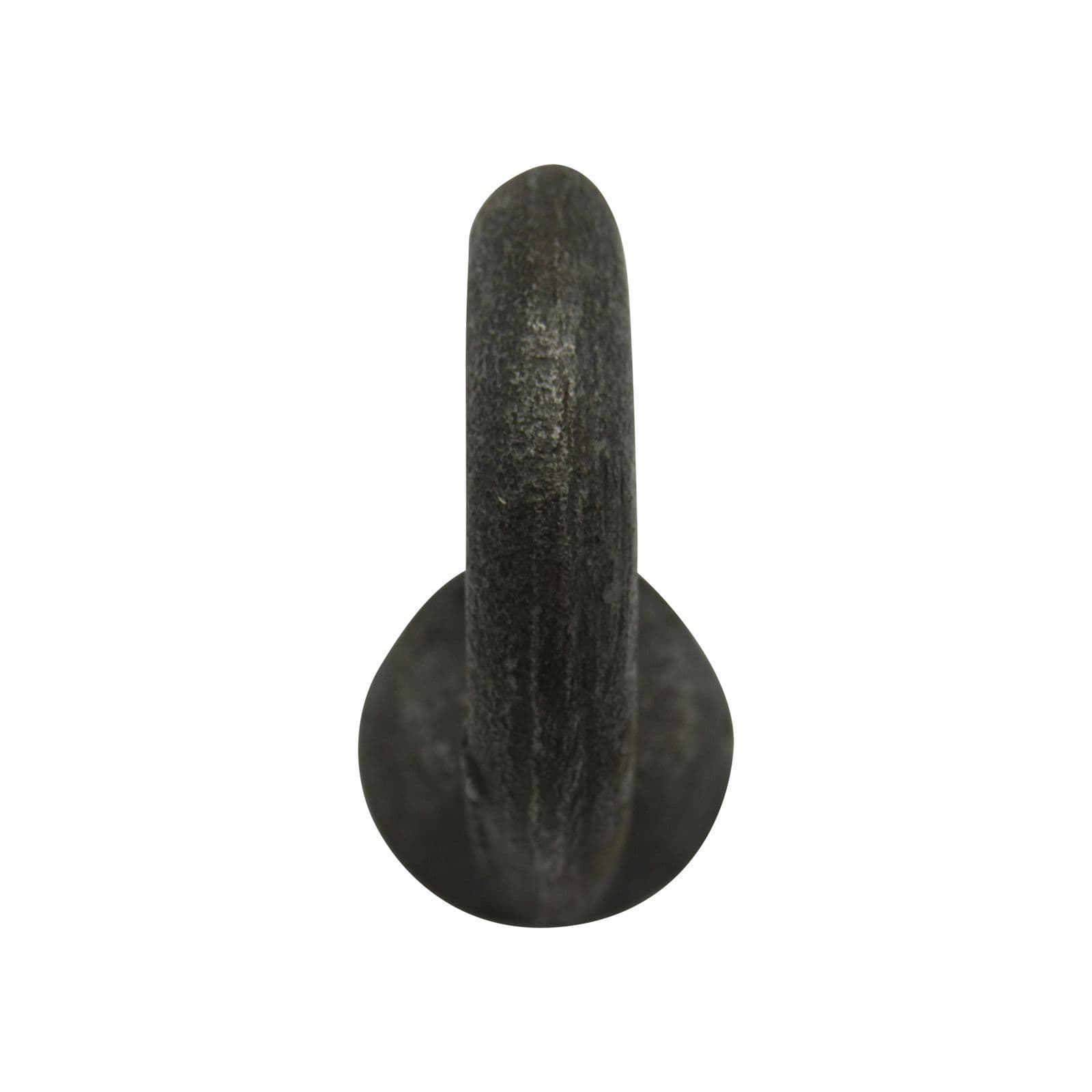

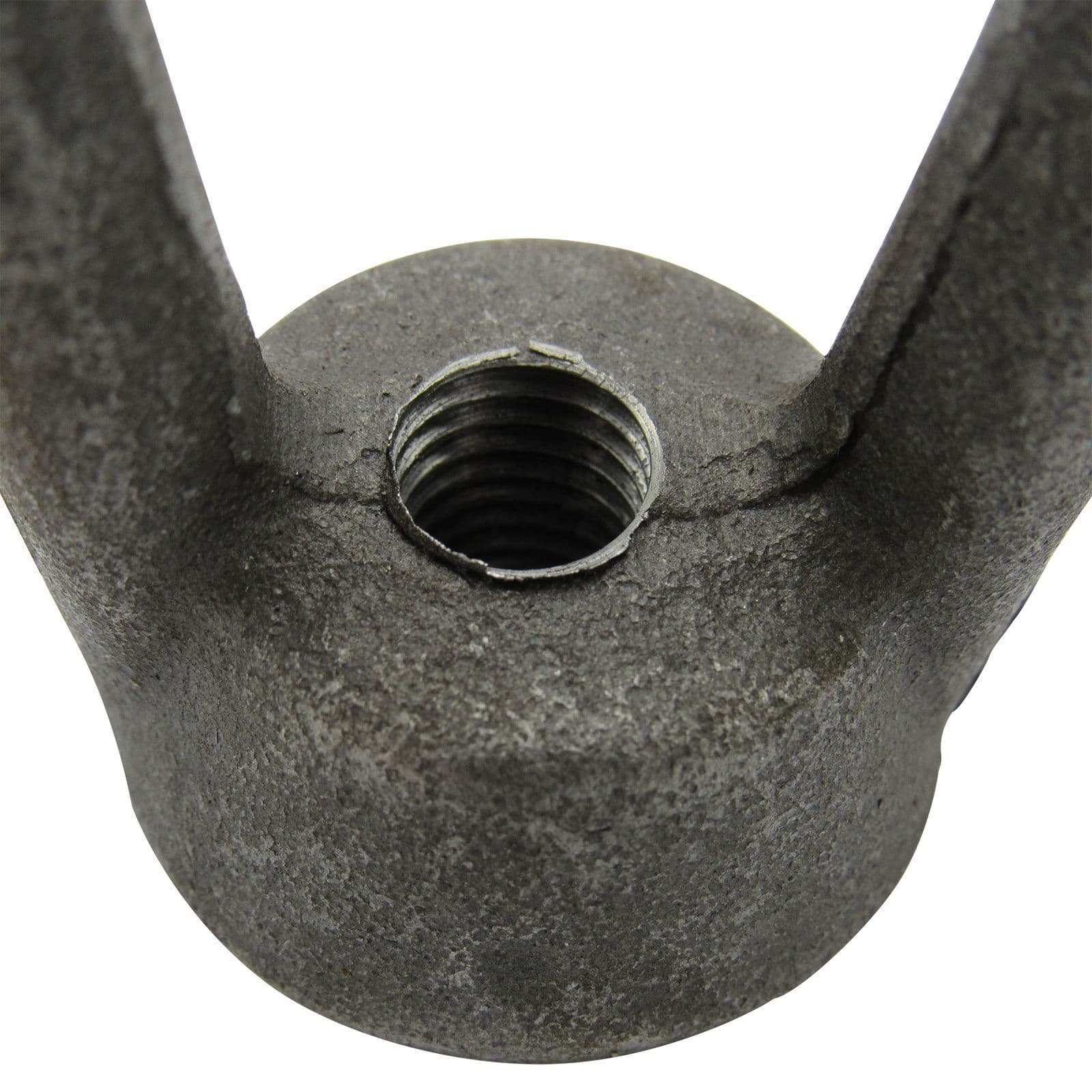

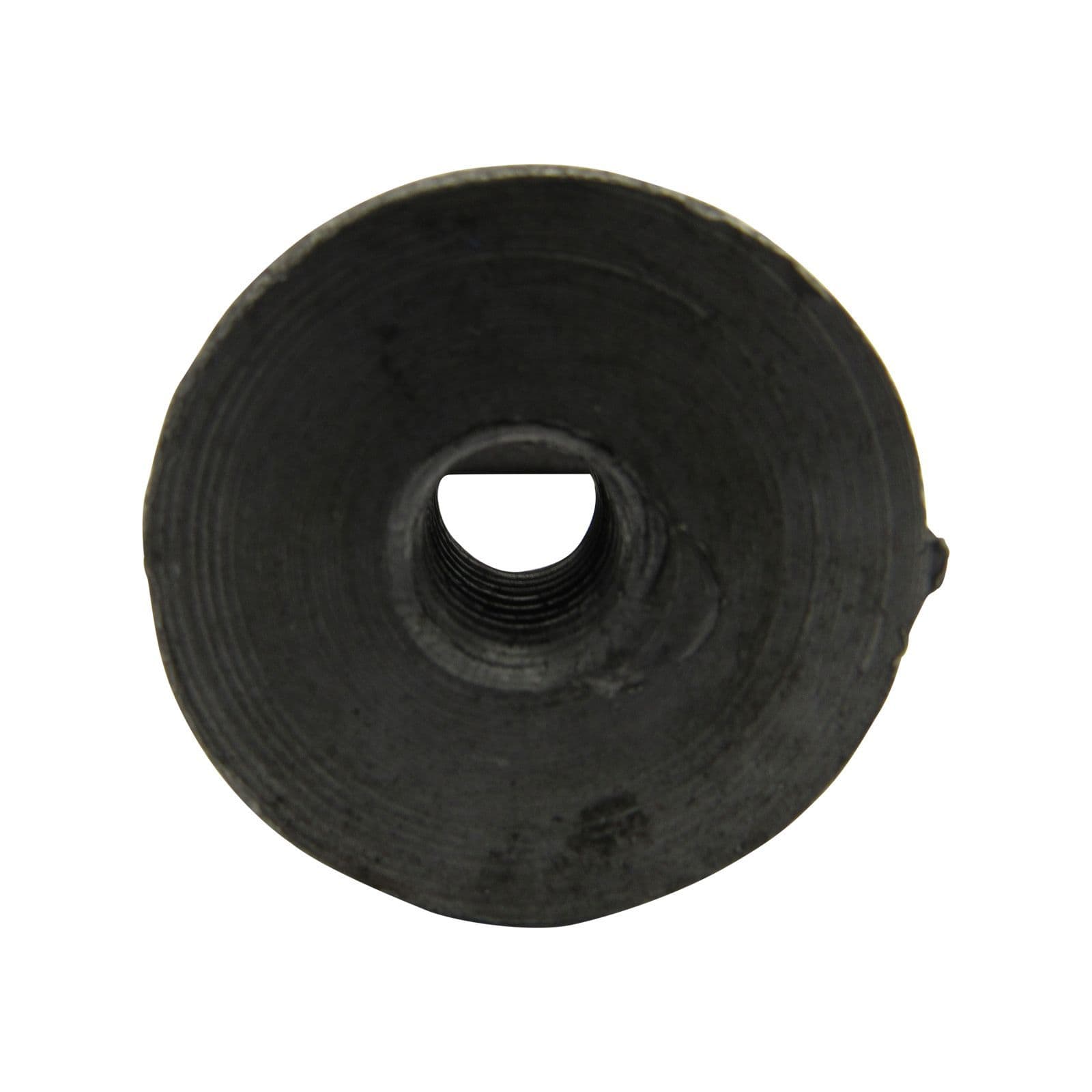

M16 1.01 Ton Self Colour Bow Nut - 16MM Drop Forged Eye Nut Lifting Bownut 1010KG

Item in Stock

Product Code SFBOW16

These Bow Nuts Are Excellent For Lifting And Restraint Of Loads.

Order within to get it by .

Product Description

Self Colour Bow Nut

Specifications

Customer reviews

Delivery & Returns

M16 1.01 Ton Self Colour Bow Nut - 16MM Drop Forged Eye Nut Lifting Bownut 1010KG
