Drop Forged Eye Nuts from M6, M8, M10, M12, M16, M20, M24, M30, M36, M42, M48, M56, M64 in Self Colour & Zinc Plated

Thread Diameter - M6, M8, M10, M12, M16, M20, M24, M30, M36, M42, M48, M56, M64
Conforms To - DIN582
Finish - Self Colour & Zinc Plated

Product Code	SWL (Ton)	A (MM)	B (MM)	C (MM)	D (MM)	E (MM)	F (MM)	G (MM)	Pitch
SFDINEN06	0.07	19.8	36.1	19.6	6	9.2	19	9.5	1.00
SFDINEN06ZP	0.07	19.5	36.3	19.9	6	9	19	9	1.00
SFDINEN08	0.14	20.1	36.3	19.4	8	9	18.3	9.2	1.25
SFDINEN08ZP	0.14	20	36	19.7	8	9	19	9	1.25
SFDINEN10	0.23	25.3	44.6	25	10	11	22	10	1.50
SFDINEN10ZP	0.23	24.3	45.3	24.4	10	11	23	10.7	1.50
SFDINEN12	0.34	30.5	54	29.5	12	15	27	12	1.75
SFDINEN12ZP	0.34	30.7	54	29.4	12	12	26.5	13.5	1.75
SFDINEN16	0.7	35	62.6	33.7	16	15	30	15	2.00
SFDINEN16ZP	0.7	34.7	62.7	33	16	15	30	15.4	2.00
SFDINEN20	1.2	41	72	38.5	20	18	36.8	16.8	2.5
SFDINEN20ZP	1.2	40	71.5	38.5	20	19	36.5	16.5	2.5
SFDINEN24	1.8	50	90	48.5	24	22	46	22.5	3.00
SFDINEN24ZP	1.8	50	89.4	49.4	24	21	44	21.1	3.00
SFDINEN30	3.2	64.5	108	58.6	30	29	61.5	24.3	3.5
SFDINEN30ZP	3.2	65	108	59	30	26	58.4	24.5	3.5
SFDINEN36	4.6	74	125	66.8	36	25	65.8	30.6	4
SFDINEN42	6.3	85	144	78.5	42	30.5	77	34	4.50
SFDINEN48	8.6	100	164	89.6	48	40	83	38	5.00
SFDINEN56	11.5	110	180	100	56	38	95	46	5.50
SFDINEN64	16	120	202	104	64	50	105	49	6.00

Our range of Eyenuts are excellent for numerous applications within the lifting industry. Our Eye Nuts are tested, conform to the DIN582 standard, and are supplied with a Test Certificate, sent to your email address upon purchase.

Specifications

Product Code

SFDINEN06

Weight

0.05kg

Delivery & Returns

Delivery is free for all orders over £50. Otherwise, delivery is depending on the items you plan to purchase.Once your product has shipped, it usually takes 2 to 3 business days in UK, 3 to 8 in Europe. 5 to 15 for the rest of the world. You can return your product up to 14 days after receiving your order. Please make sure that the products are not used or damaged.

Customer Reviews

Lifting Eye Nuts DIN582 from M6 to M64 with Self Colour or Zinc Plated Finish

Item in Stock

Product Code SFDINEN06

Used as a lifting point, our Eyenut provides an excellent way to lift your item.

Thread Diameter

Finish

Product Description

Drop Forged Eye Nuts from M6, M8, M10, M12, M16, M20, M24, M30, M36, M42, M48, M56, M64 in Self Colour & Zinc Plated

Specifications

Customer reviews

Delivery & Returns

Lifting Eye Nuts DIN582 from M6 to M64 with Self Colour or Zinc Plated Finish

You may also like

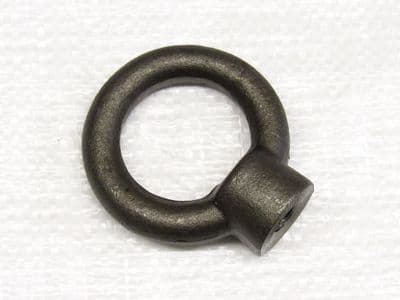

M12 Commercial Eyenut Self Colour - Eye Nut Metric Drop Forged
