Product Description

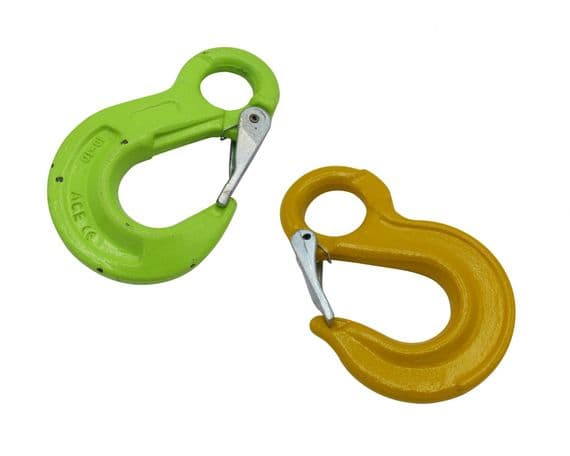

Eye Type Sling Hook With Safety Catch

Grade 80 Sling Hook

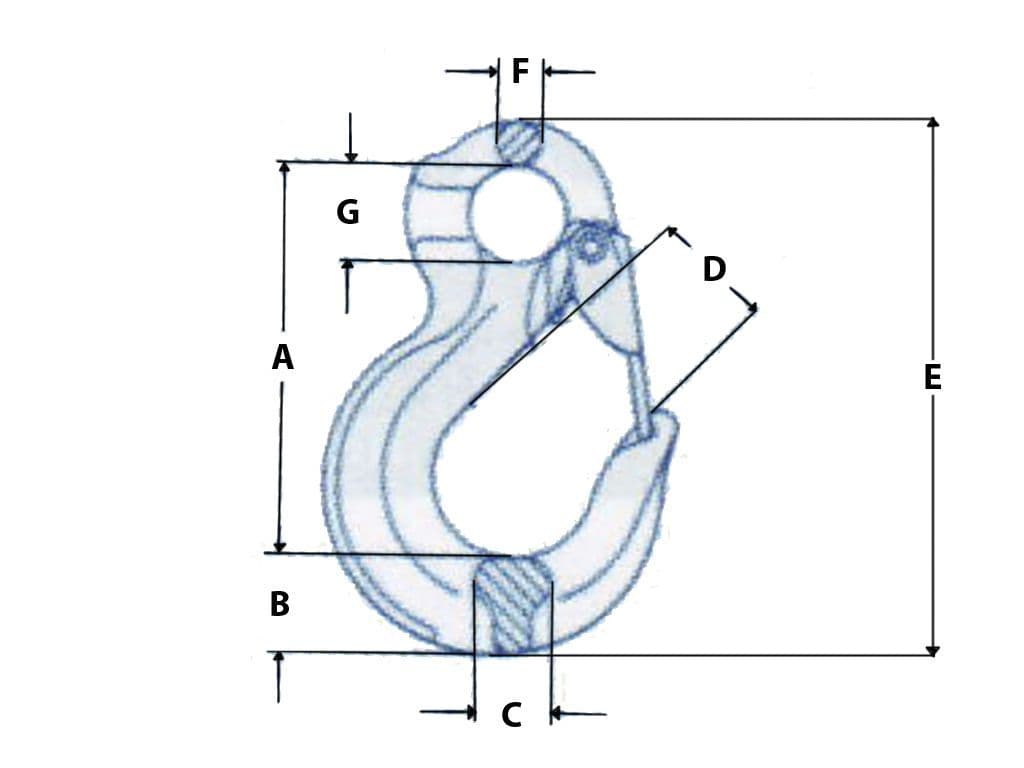

SIZE SWL(TON) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM)
7MM 2 96.5 24.5 18 34 132 11.5 24.5
10MM 3.15 117 32 21 36 167 14.8 37.8
13MM 5.3 151 42 27.5 38.5 219 20 42
16MM 8 184.5 49 35 54.5 250 23 49.5
20MM 12.5 218 60 42 47 302 24 62
22MM 15 236 77 45 73 345 33 61
26MM 21.2 357 85 60 88.5 395 35 62.5
32MM 31.5 435 94 65 104 475 40 87

Grade 100 Sling Hook

SIZE SWL(TON) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM)
6MM 1.4 79 22 17 22 110 10.5 19.5
8MM 2.5 97.5 29 18.5 26.5 137 10.5 24.5
10MM 4 119.5 37 26.5 29 170 16 33
13MM 6.7 155 45 32 39 220 20 42
16MM 10 183 54 40 44.5 255 25 49.5

These Are A High Quality Piece Of Lifting Gear. These Are Mainly Used In The Lifting Gear Industry For Chain Slings.

The Eye On This Product Allows It To Be Attached To Various Objects.

Grade 100 Products Are Lighter Yet Stronger Than Their Grade 80 Counterparts.

Factor Of Safety - 4:1

Conforms To: ASTM A952

*Test Certificate Will Be Supplied Via Email*

*Please Note We Supply A Huge Variety Of Lifting Gear*

Specifications

Product Code
SFYASESH07
Weight
0.42kg

Customer Reviews

Lifting Chain Sling Hook Safety Catch Grade 80/100 6MM - 32MM (Fixed Eye Latch G80 G100)

Item in Stock

Product Code SFYASESH07

Our Eye Sling Hook Is Perfect For Use In Lifting And Towing.

Order within to get it by .
