Product Description

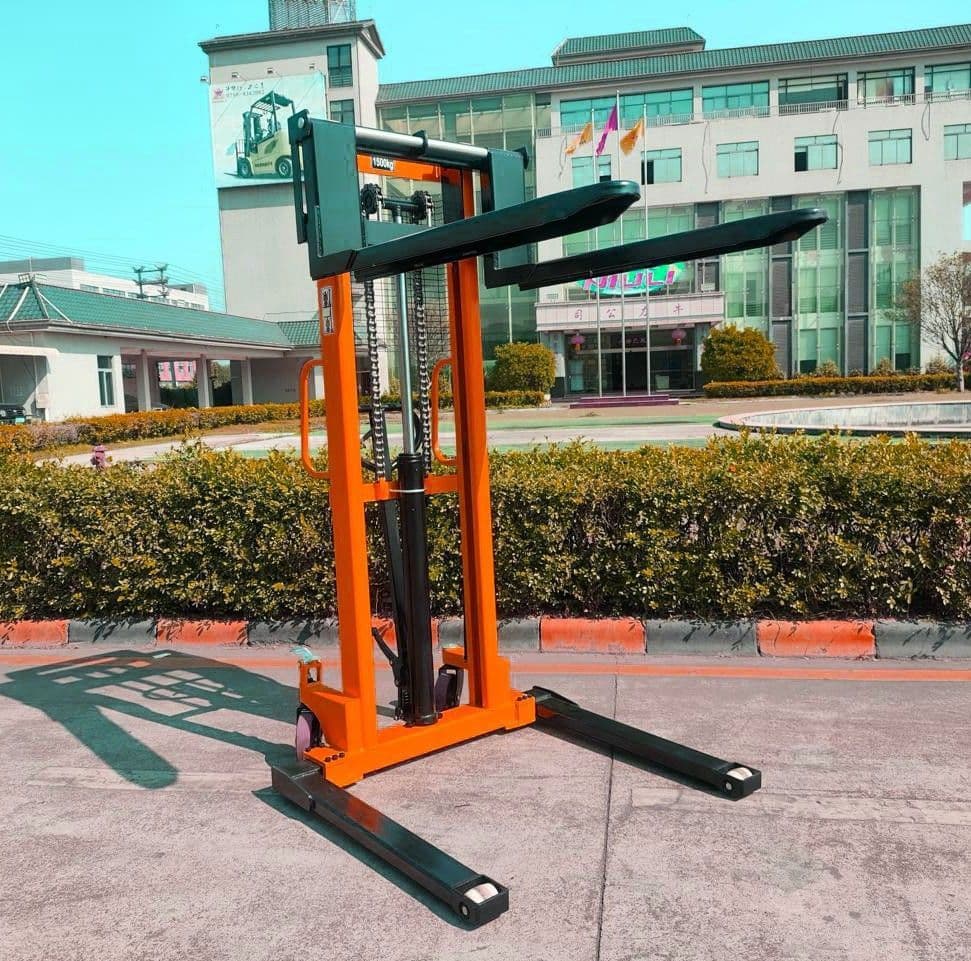

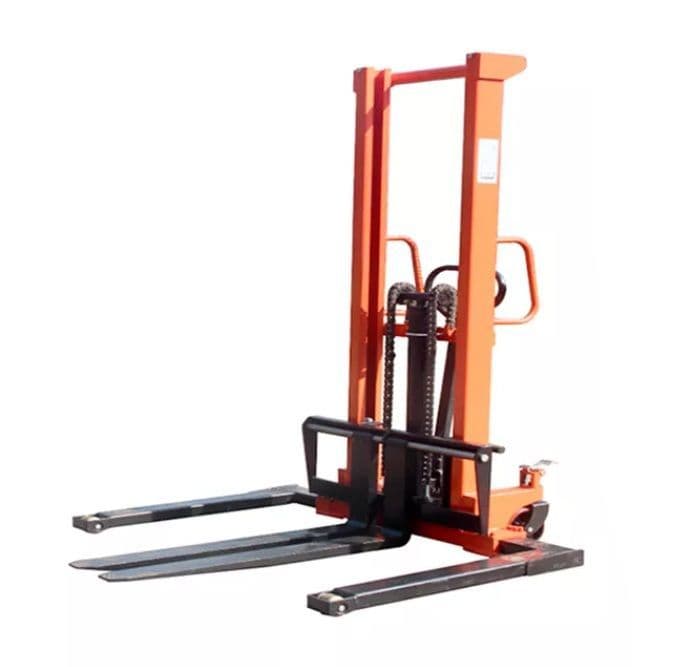

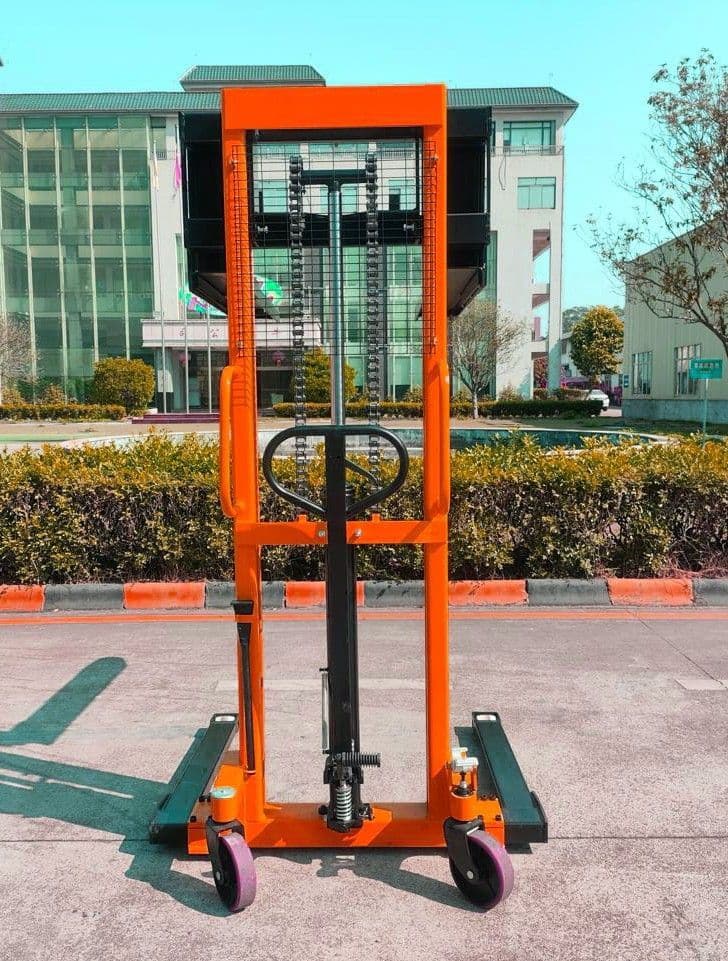

Adjustable Straddle Wide Leg Hand Stackers

Here at SecureFix Direct we stock a huge range of competitively priced, high quality Material Handling Products including Pallet Trucks, Sack Trucks, Drum Lifters and much, much more, and we are extremely excited to present to you the latest addition to our huge range; allow us to introduce our Adjustable Straddle Leg Pallet Stackers.

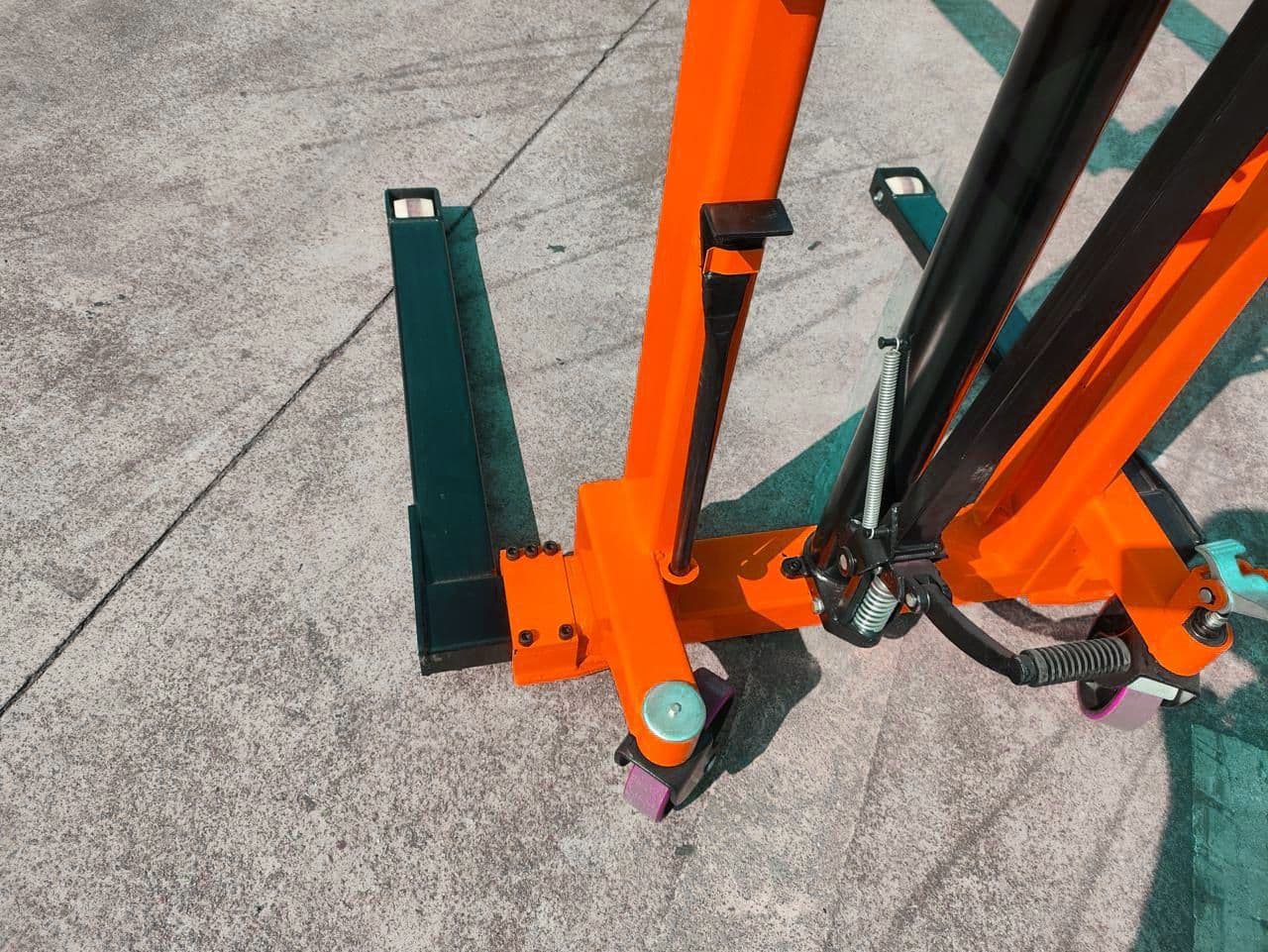

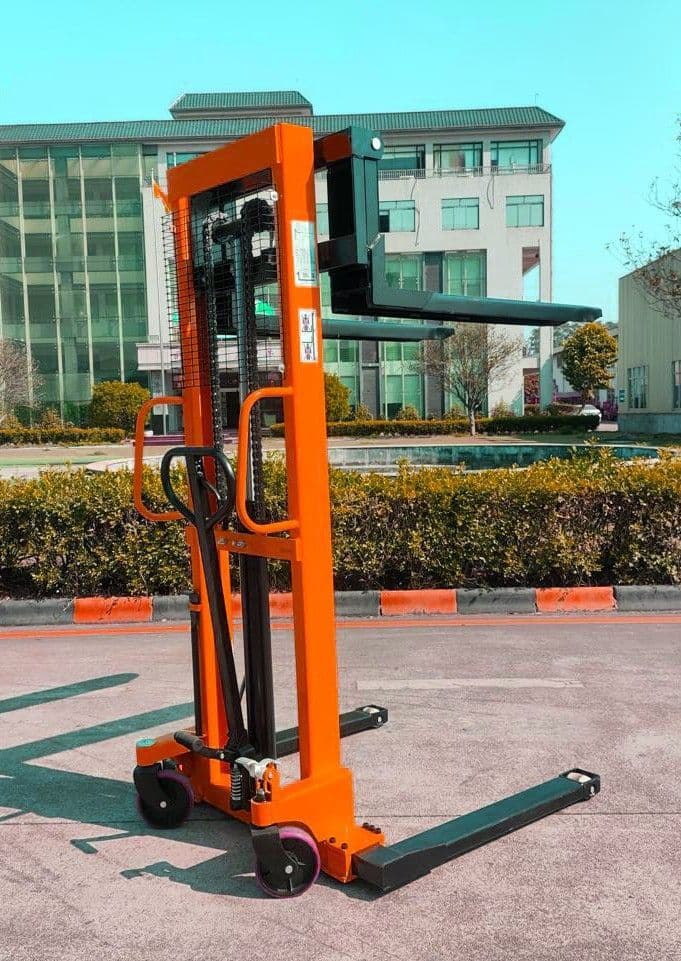

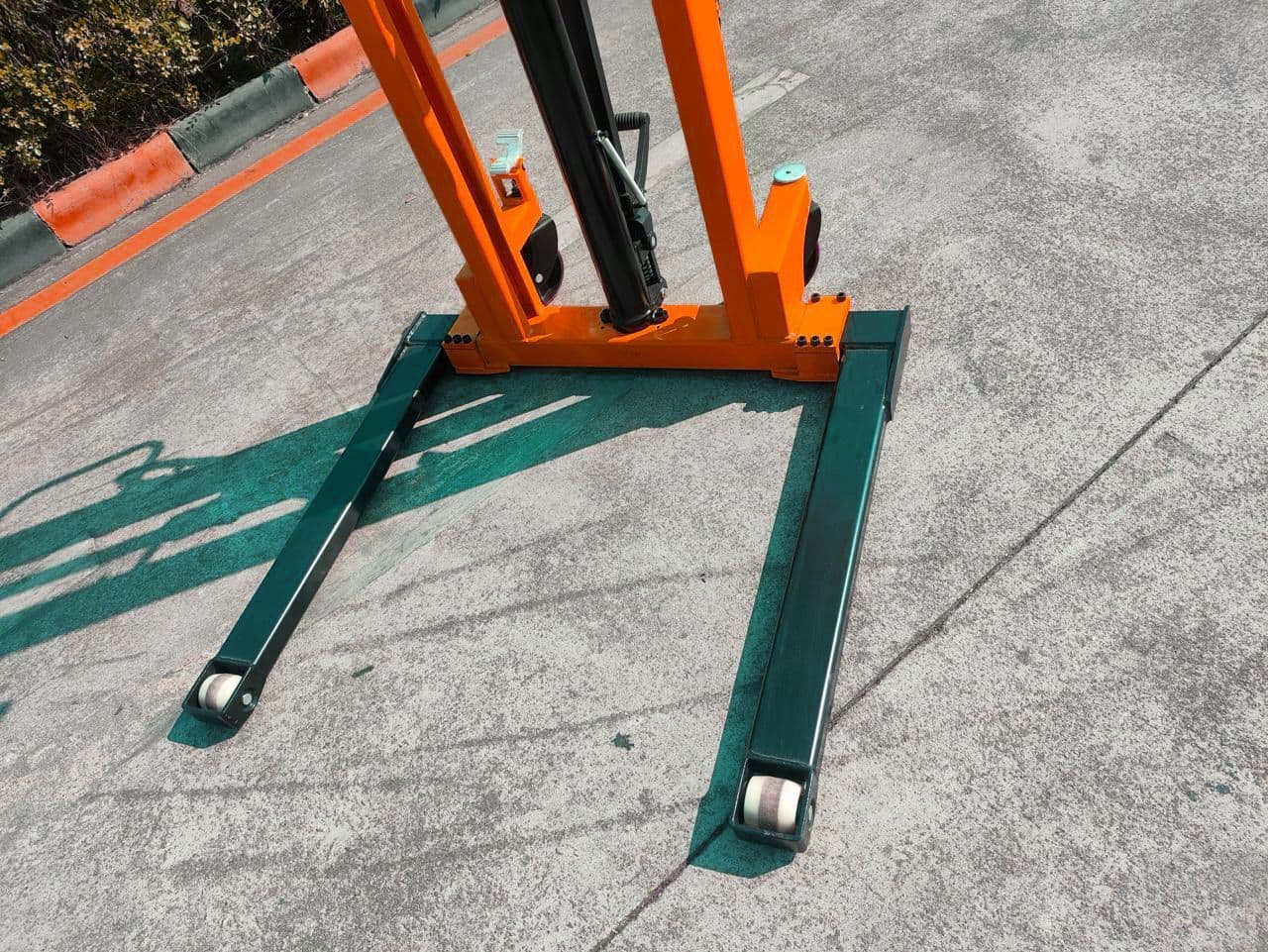

Straddle Leg Hand Stackers are incredible pieces of equipment as they allow for the quick and easy movement and stacking of pallets and other large items. The main advantage of Wide Leg Stackers over more traditional forklift trucks is that they are much smaller and much more highly manoeuvrable allowing them to be used in narrow aisles where space is restricted. They are perfectly suited to a warehouse environment and can even eliminate the need for large, expensive, and cumbersome forklift trucks. Our Wide Leg Stackers offer even greater efficiency than regular pallet stackers, thanks to the wide Straddle Legs which can be adjusted to suit your needs. The adjustable legs ensure that unlike regular pallet stackers these are suitable for closed bottomed pallets. The forks can easily enter the pallet without the legs getting in the way, which also reduces the risk of a pallet breaking and helps to improve efficiency. The wide legs also help to provide extra stability.

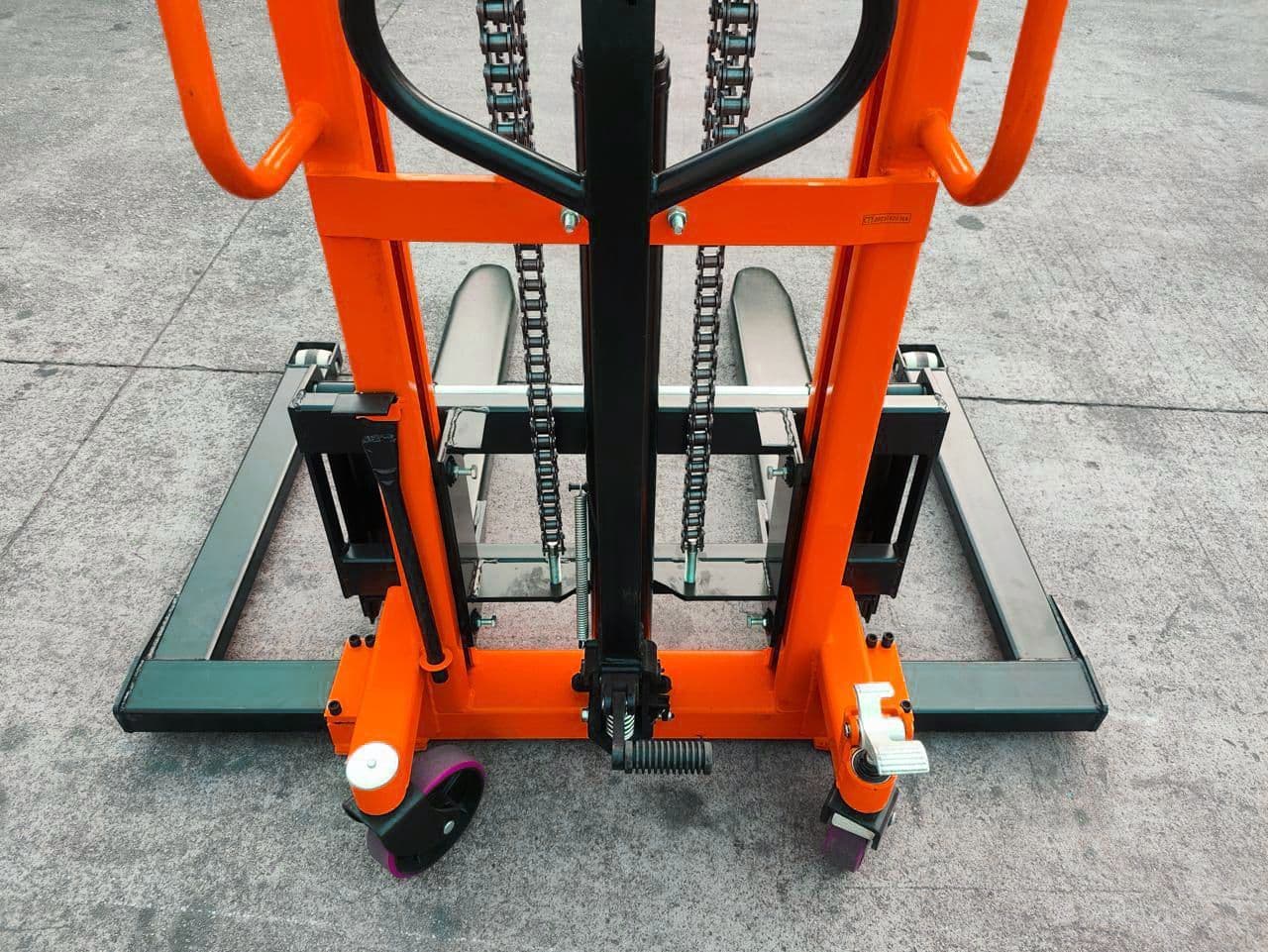

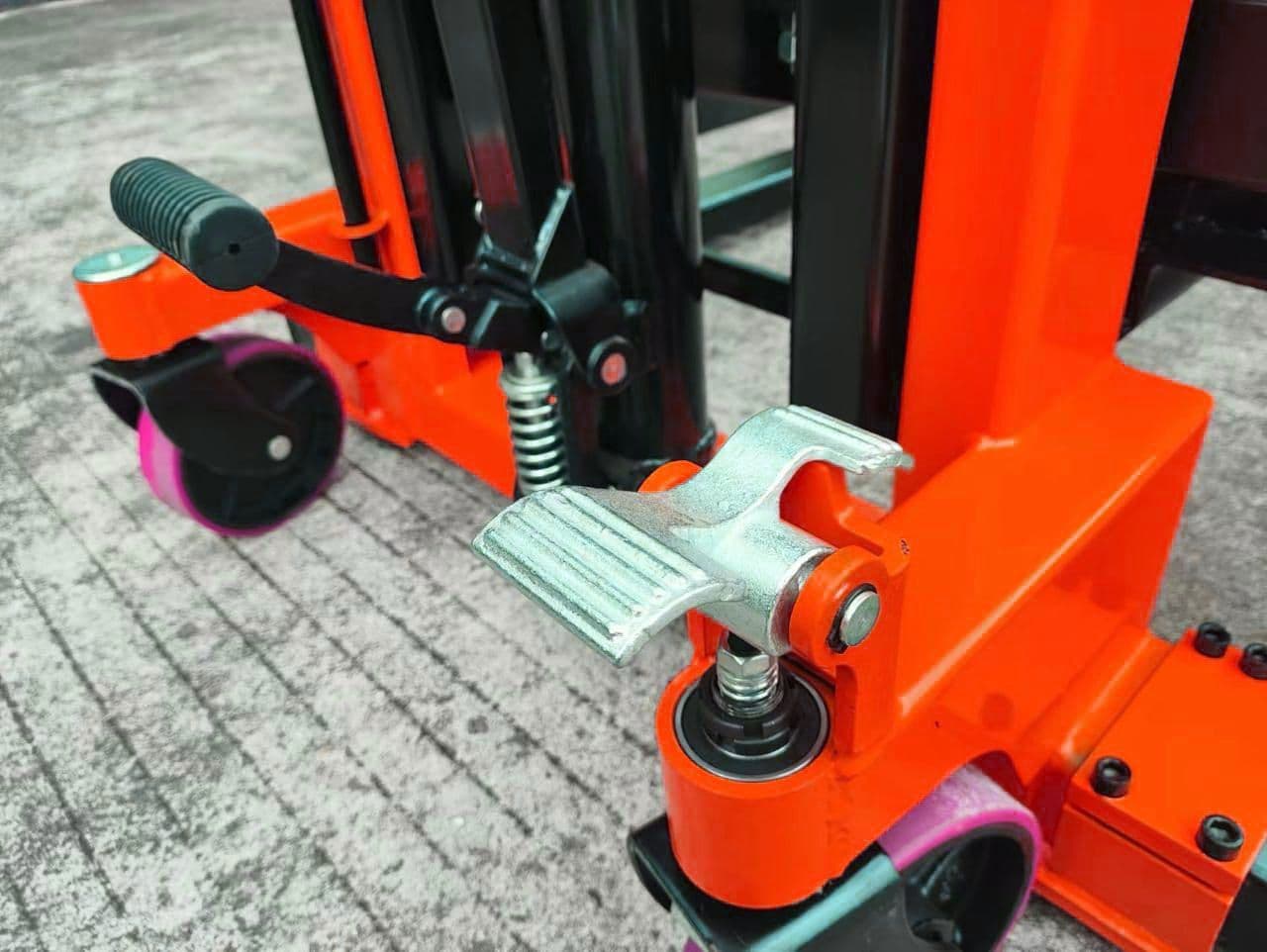

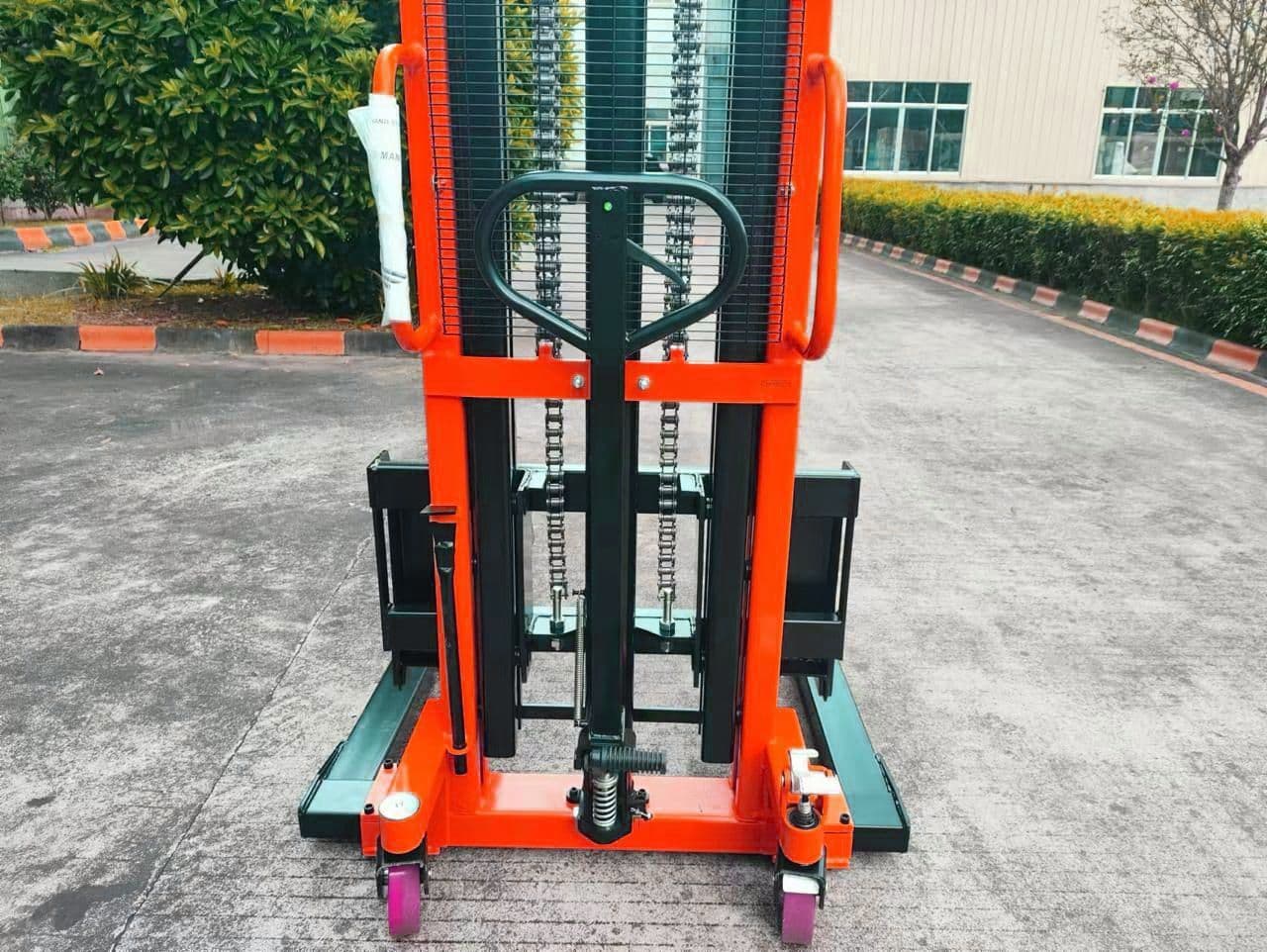

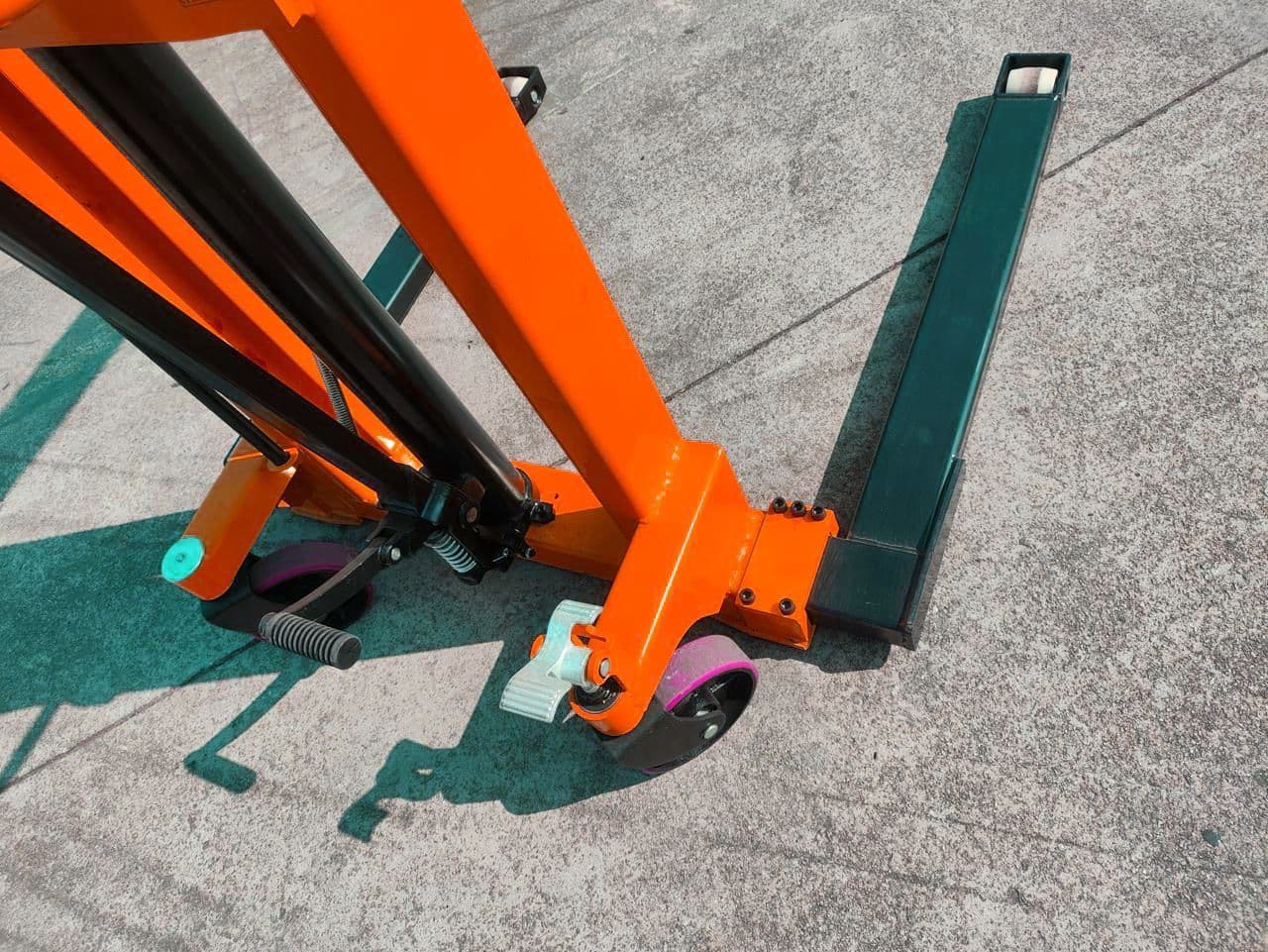

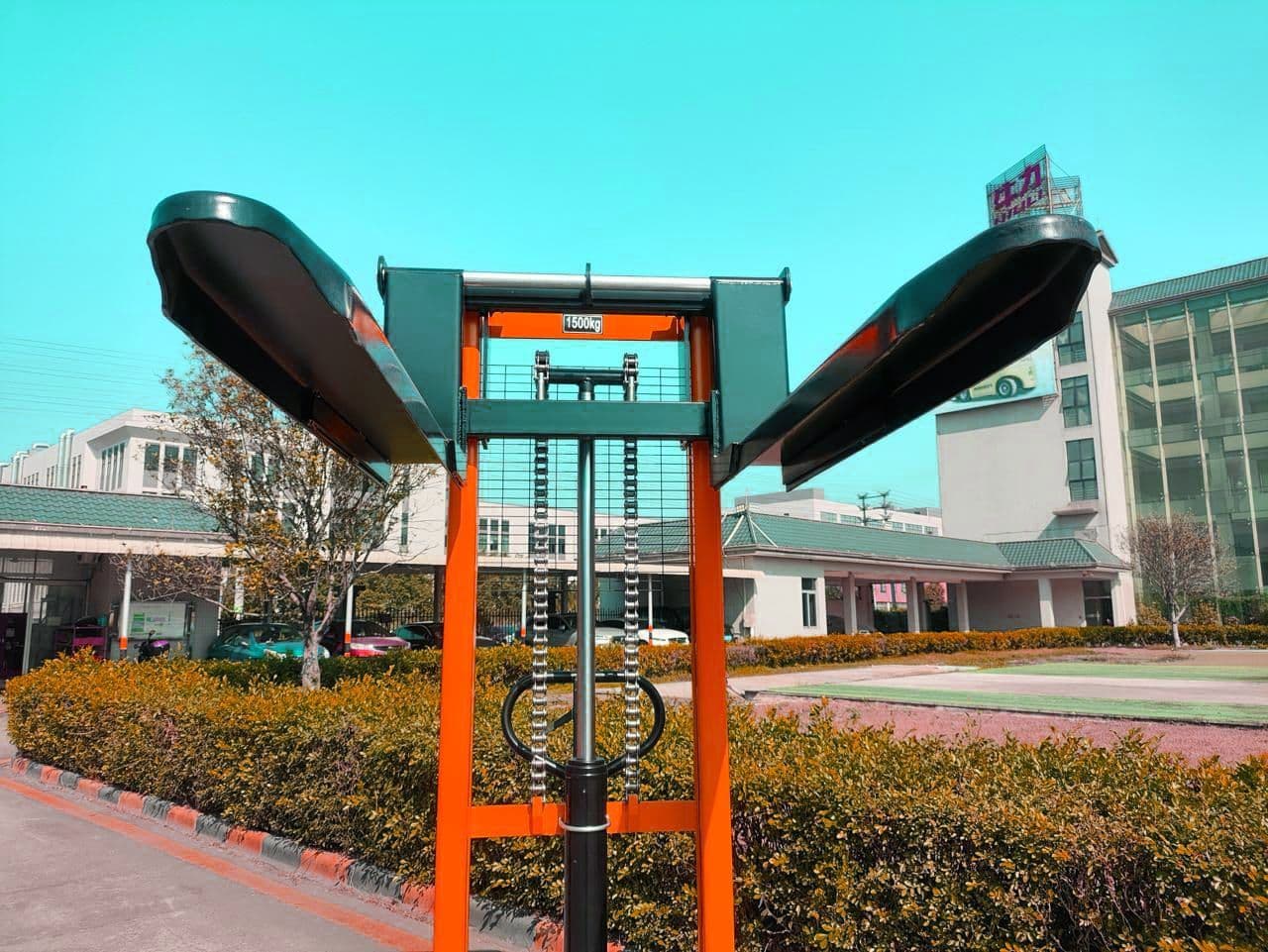

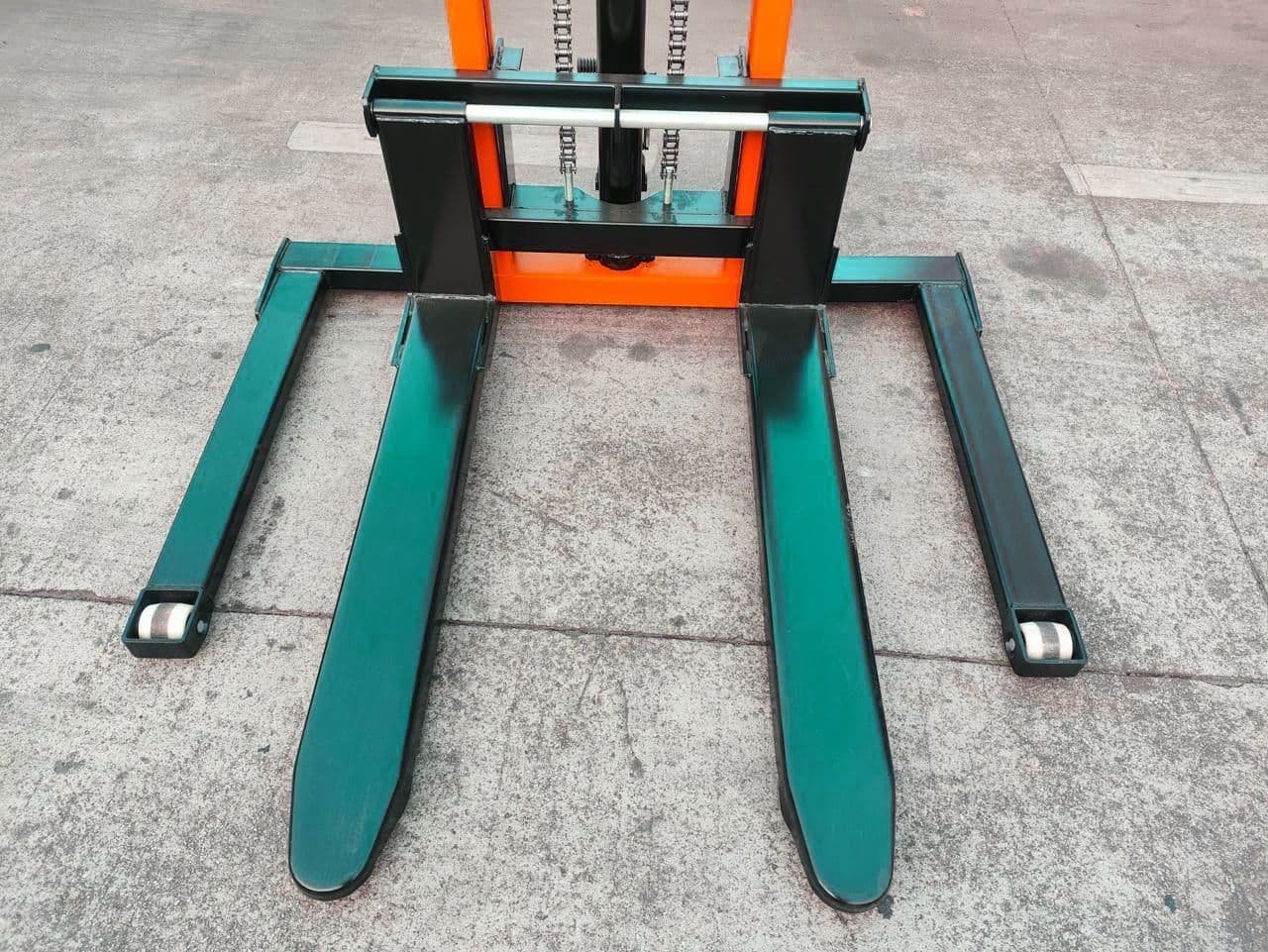

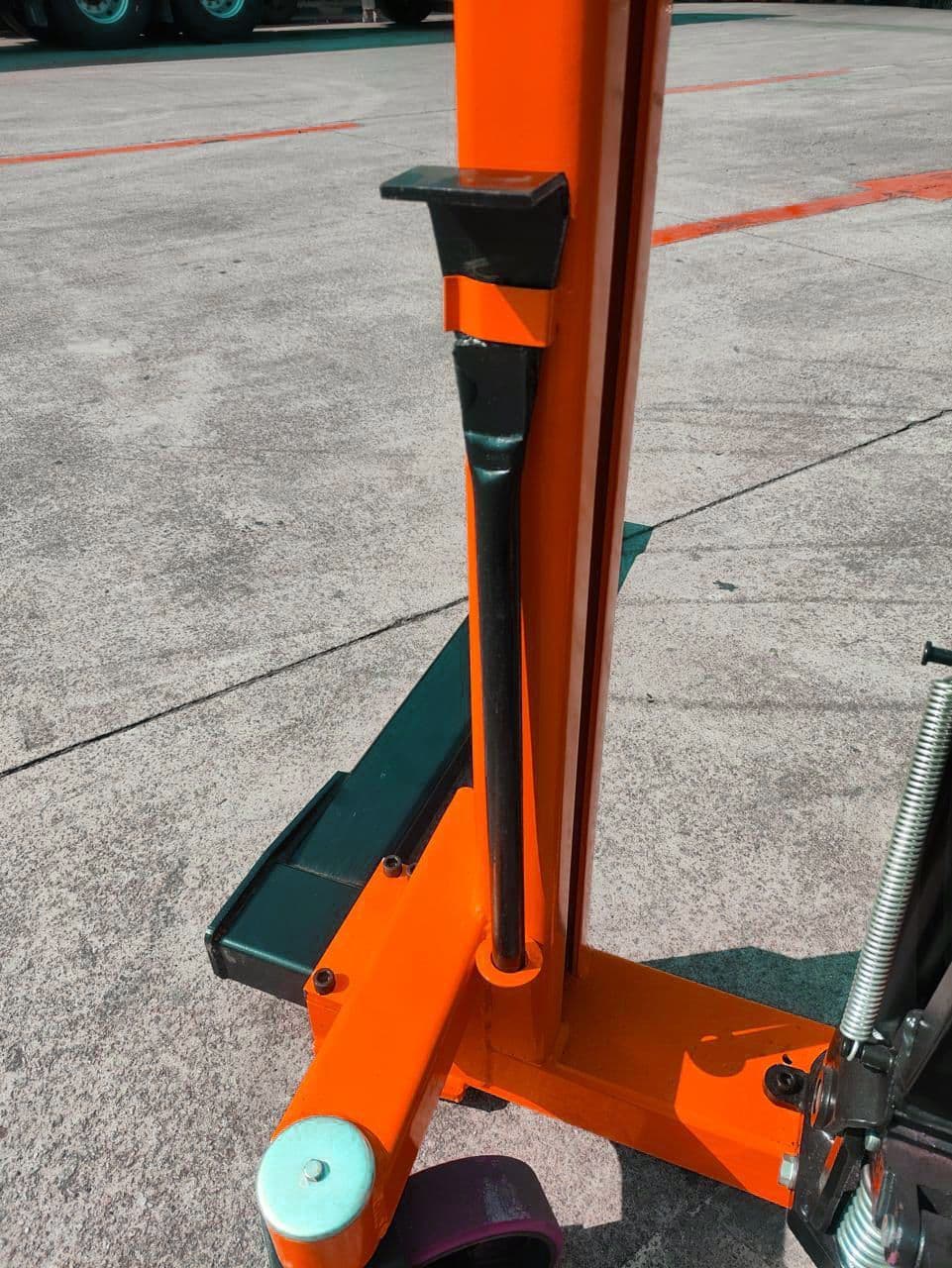

We currently have on offer 4 models of Manual Straddle Stackers all of which are incredibly powerful thanks to their hydraulic lifting system. They all have adjustable legs and forks allowing for even greater versatility. They also have strong 360-degree rotating caster wheels which can turn on the spot providing excellent manoeuvrability in even the tightest of spaces. The wheels also have a safety brake for complete peace of mind. With a simple one-man operation, these Hand Pallet Stackers are uncomplicated to control and come with an ergonomically designed handle to raise the forks with a quick release foot pedal being utilised to lower them. The trucks have received a coat of bright orange paint allowing them to be easily seen, further improving their safety in your work place.

Lifting Capacity (KG) Maximum Fork Height (MM) Low Fork Height (MM) Fork Length (MM) Adjustable Width of Forks (MM) Adjustable Width of Legs (MM)  Lift Speed (MM Per Stroke) Front Wheel Size (MM) Rear Wheel Size (MM) External Dimensions (LxWxH) (MM)
1000 1600 65 900 210 - 850 1116 - 1516 20 74 x 70 180 x 50 1455 x 1116 x 2115
1500 1600 65 900 210 - 850 1116 - 1516 14 74 x 70 180 x 50 1455 x 1116 x 2115
1000 2500 65 900 210 - 850 1116 - 1516 20 74 x 70 180 x 50 1475 x 1116 x 1830
1500 3000 65 900 210 - 850 1116 - 1516 14 74 x 70 180 x 50 1475 x 1116 x 2080

These stackers are brand new.

Minor surface marks may be present due to handling during storage and transportation, but these do not affect the product’s functionality or performance.

Specifications

Height
1830MM
Width
1116MM
Capacity
1000KG
Lift Height
1.6M
Lifting Height
1.6M
Fork Adjustment Width
210MM - 850MM
Leg Adjustment Width
1116MM - 1516MM
Fork Length
900MM
Product Code
SFAPGT1015
Weight
280kg

Customer Reviews

Hydraulic Adjustable Manual Straddle Stacker 1T - 1.5T 1.6M - 3M (Wide Leg Fork Lift Truck)

Item in Stock

Product Code SFAPGT1015

Our Adjustable Straddle Leg Stackers can help improve efficiency in your warehouse and are able to lift closed bottomed pallets easily.
