Product Description

G8 / G10 Lifting Component Connector Coupling from 6MM, 7MM, 8MM, 10MM, 13MM, 16MM, 20MM, 22MM, 26MM & 32MM

S.W.L : 1.12 Ton - 31.5 Ton

Suits Chain Size : 6MM - 32MM

Finish : Yellow / Green

Factor Of Safety : 4:1

Grade 80 Component Connector Dimensions :

Size	SWL (Tonne)	A (MM)	B (MM)	C (MM)	D (MM)	E (MM)	F (MM)
6MM	1.12	14.96	17.05	42.52	7.41	57.57	8.43
7MM	2	15	23.5	57	9	76	11
10MM	3.15	20	29	71	12.5	96	13.5
13MM	5.3	22	33	84	16	115	19
16MM	8	26	43	106	21	144	21
20MM	12.5	33	45.5	116	23	165	26
22MM	15	38	55.5	138	29	190	27.5
26MM	21.2	42	62.5	157	32	220	30
32MM	31.5	46	84	195	41	280	34

Grade 100 Component Connector Dimensions:

Size	SWL (Tonne)	A (MM)	B (MM)	C (MM)	D (MM)	E (MM)	F (MM)
6MM	1.5	13.5	20.5	45.5	7	61	8.5
8MM	2.5	18.7	26.8	61	10.2	81.7	11.4
10MM	4	23	28	70	13	95	7
13MM	6.7	27.3	38.1	90.2	17.1	123.5	18.8
16MM	10	33.5	45.5	102.5	21.5	144	25

Chain Connectors are incredibly useful items usually utilized in the manufacturing of Chain Slings, they allow for a safe, secure connection of your chain to the masterlink.

These can also do a brilliant job when making a permanent connection between a chain and a permanent lifting point.

These are available in either Grade 80 or Grade 100 material both of which are incredibly strong and durable.

Test Certificate supplied via email

Specifications

Suits Chain Size

10MM

Material

Grade 100 (G10)

Finish

Light Green (May Vary)

Factor Of Safety

4:1

Conforms To

ASTM A952

Product Code

SFYASCC06

Weight

0.07kg

Delivery & Returns

Delivery is free for all orders over £50. Otherwise, delivery is depending on the items you plan to purchase.Once your product has shipped, it usually takes 2 to 3 business days in UK, 3 to 8 in Europe. 5 to 15 for the rest of the world. You can return your product up to 14 days after receiving your order. Please make sure that the products are not used or damaged.

Customer Reviews

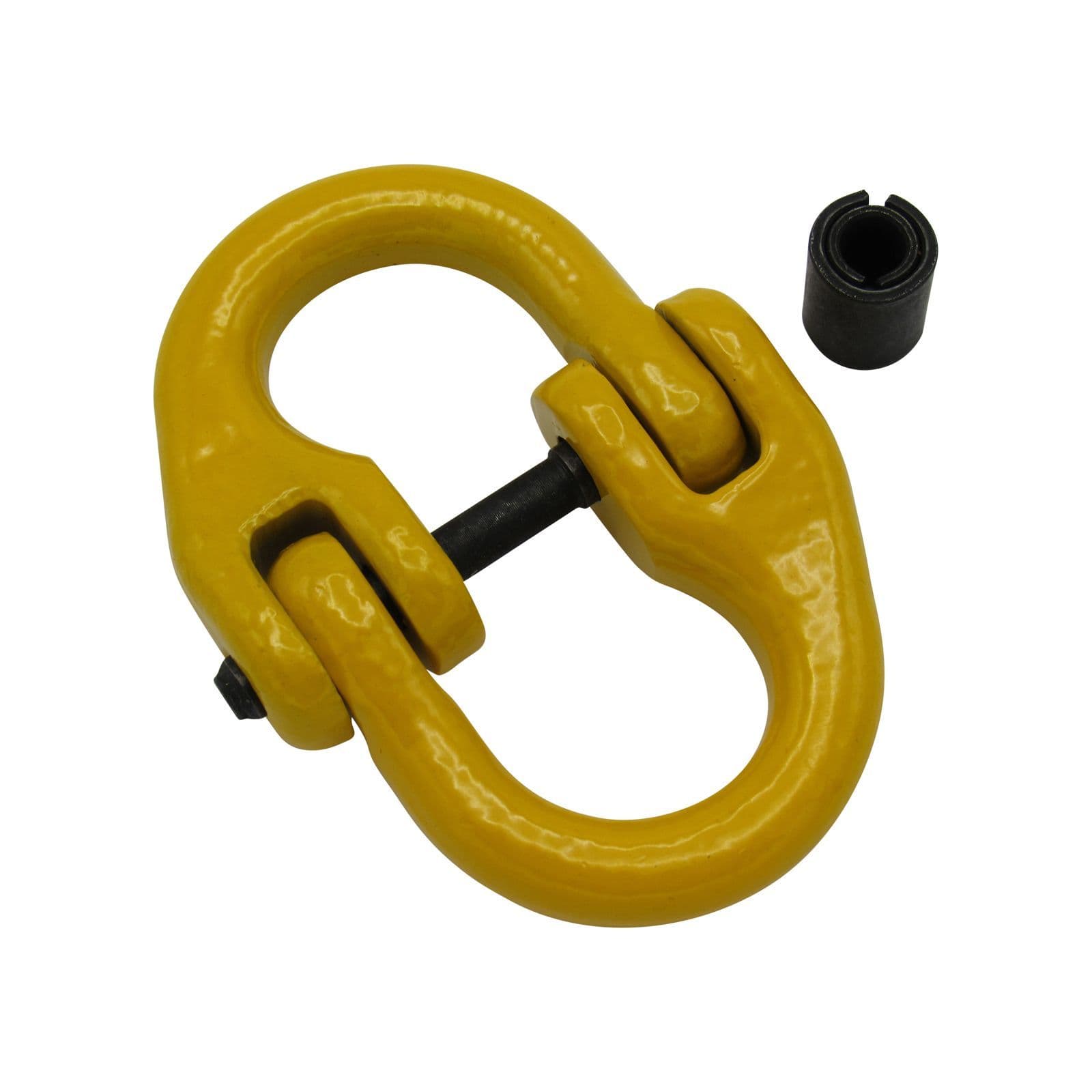

Hammer Lock Chain Connector Links 6MM - 32MM (Grade 80/100 Heavy Duty Lifting Coupling Component)

Item in Stock

Product Code SFYASCC06

Ideal for connecting a chain to you masterlink.

Grade

Size

Order within to get it by .
