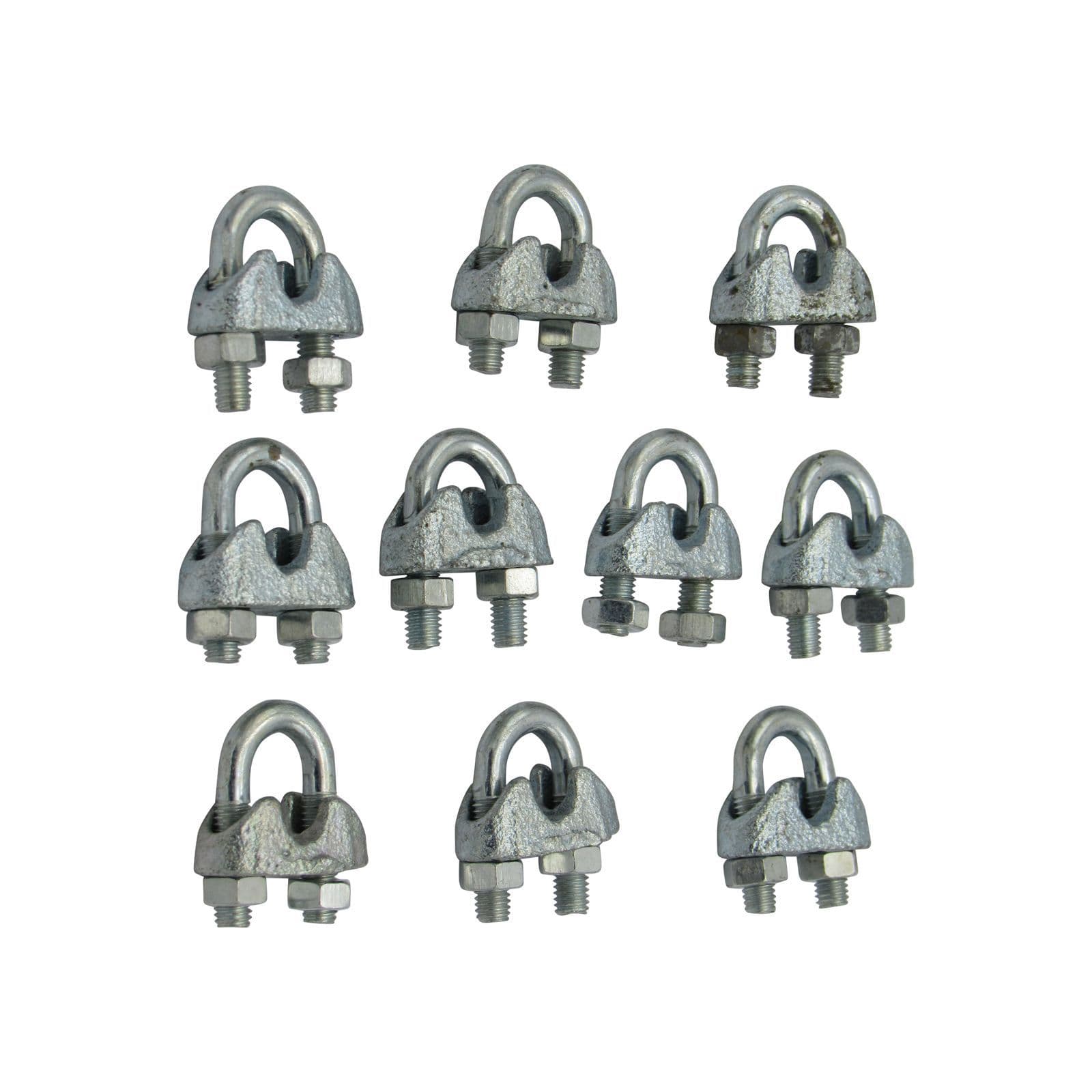

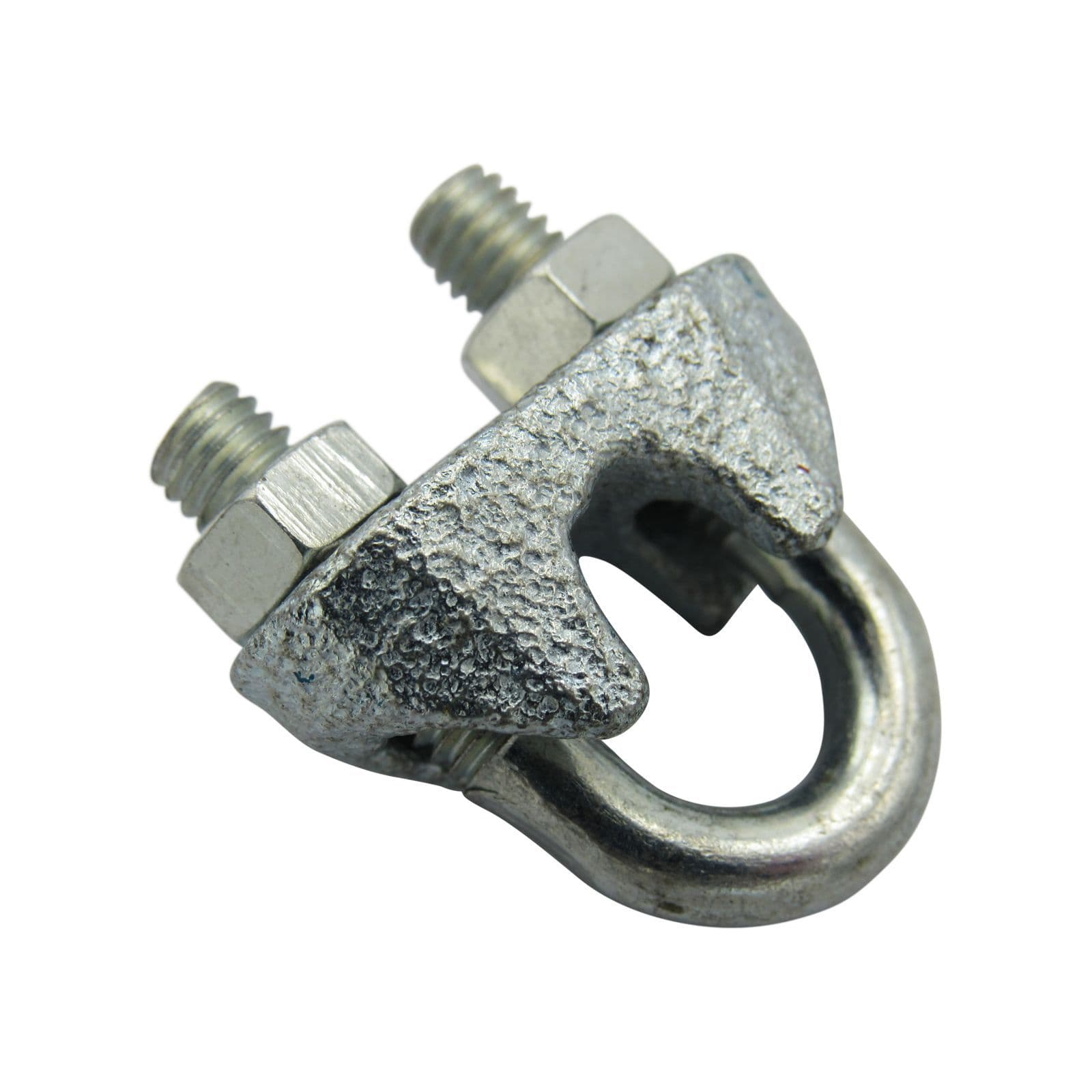

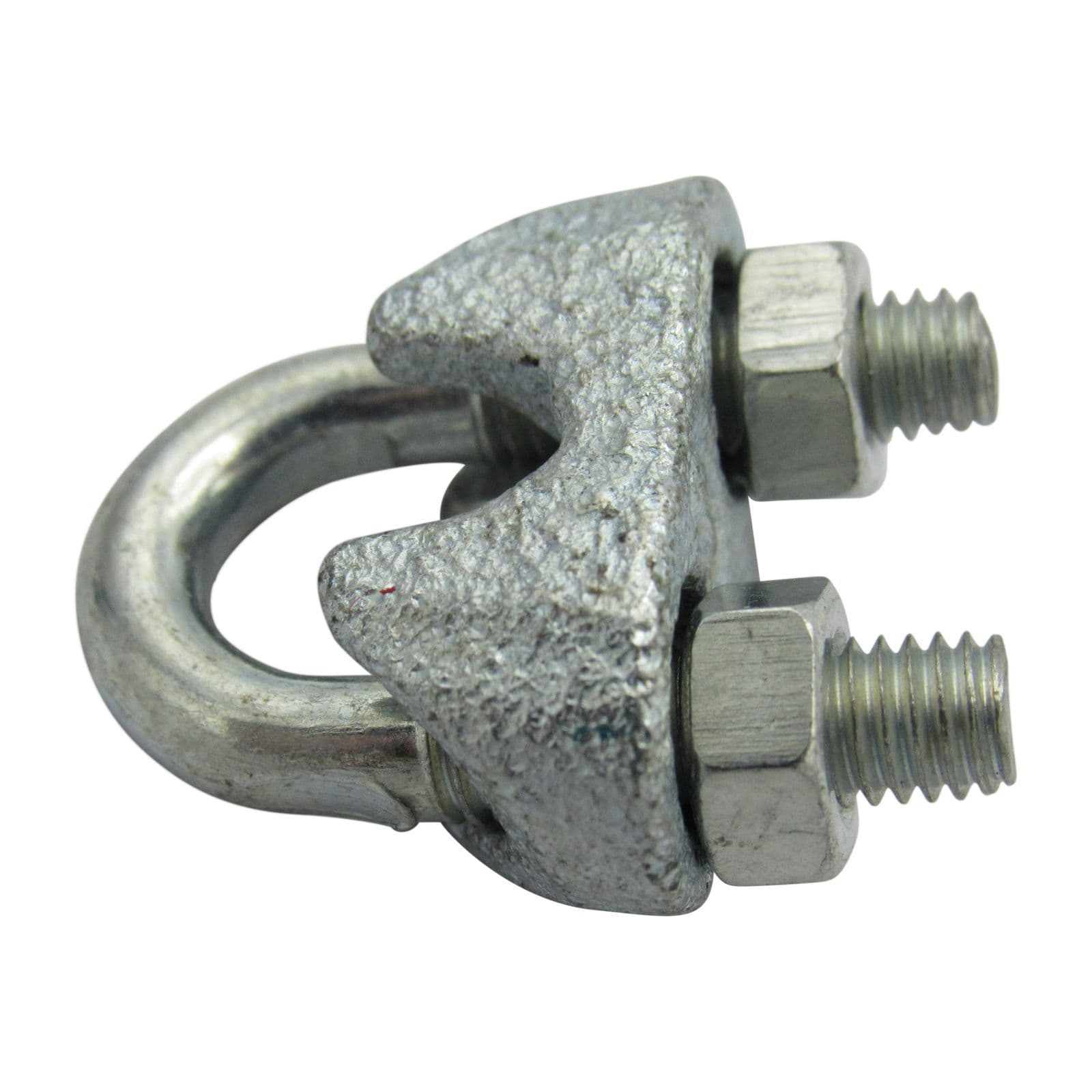

Our Wire Rope Grips, manufactured from mild steel with a galvanised coating for corrosion resistance, are suitable for use on board boats in a rigging setup, or similar applications on land. The main use of these grips is to create loops of wire in a rope assembly, or when a temporary join is needed.

The galvanised finish gives excellent corrosion resistance.

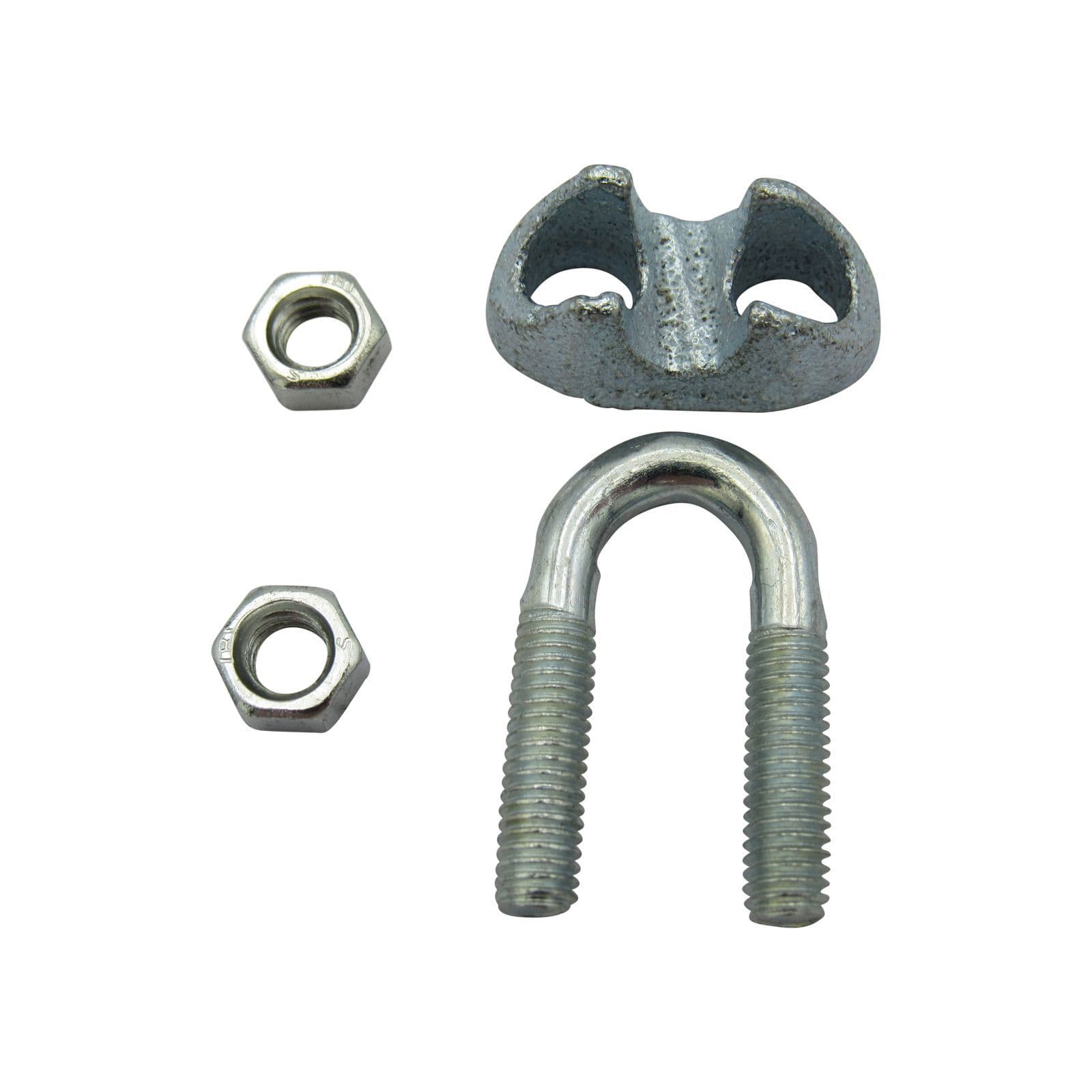

Notes on assembly and use.

1 - Prior to fitting, the threads on the nuts and bolts should be well greased.

2 - Spacing between the grips should be at least 6 times the diameter of the rope.

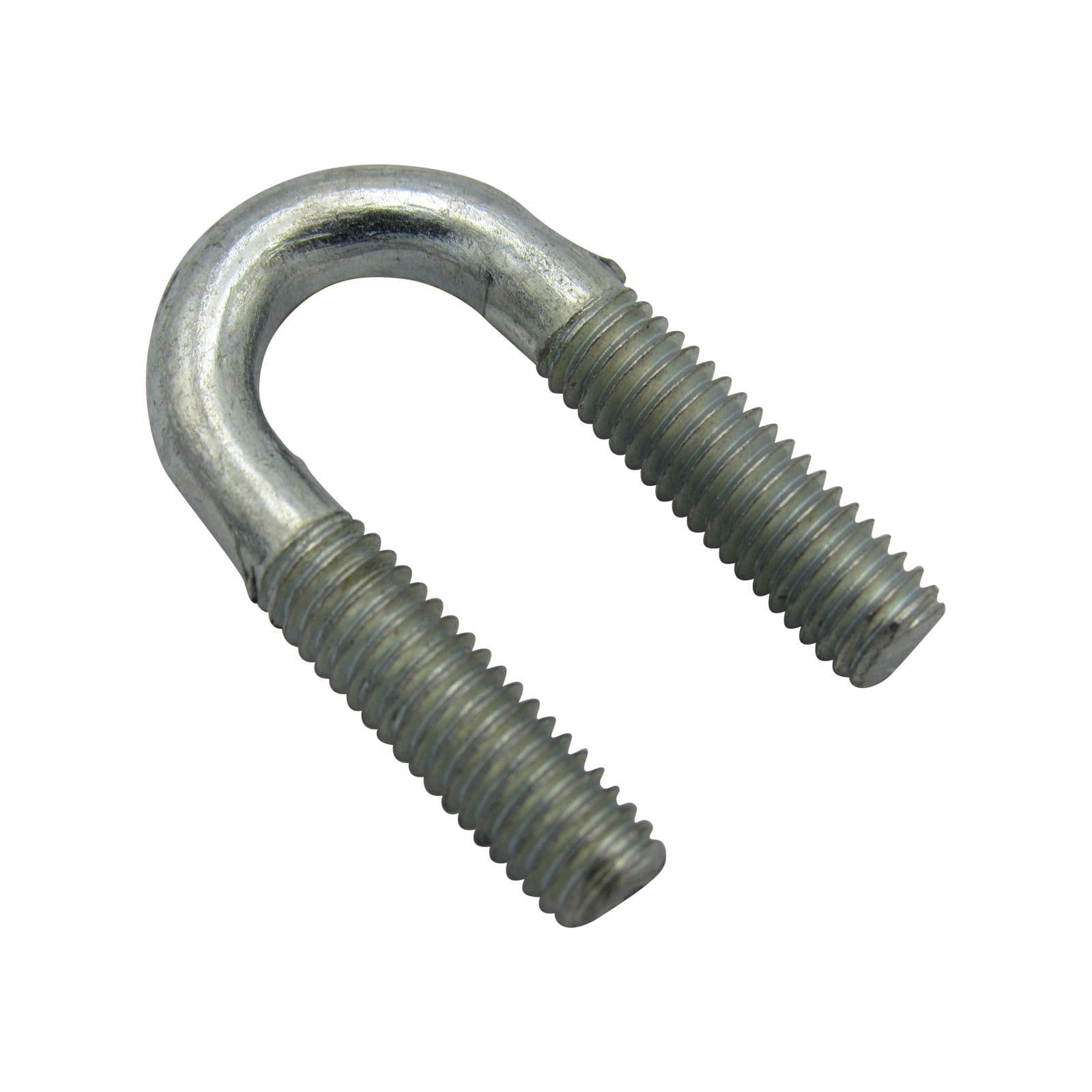

3 - Ensure the grip is always orientated correctly, the 'u' bolt should placed on the unloaded end of the rope.

4 - Tighten each nut evenly and in turn to achieve the recommended torque settings.

5 - Leave unused for 24 hours and check torque setting again, re-tighten if necessary.

6 - After first application of the load, re-check torque setting, re-tighten if necessary.

7 - During service periodically check the torque setting.
