2x 1.5 Ton Bow Shackles With Screw Pins

US Federal Specification RR-C-27IDIV

Manufactured: Drop Forged

Body Finish: Hot Dipped Galvanised

Pin: Painted

Finish: Galvanised

Weight: 0.378kg

Safety Factor: 5:1

Safe Working Load - 1.5 Tonnes

Conforms To: BS EN 13889: 2003 + A1: 2008

PRODUCT CODE	SWL (Ton)	A(MM)	B(MM)	C(MM)	D(MM)	E(MM)	F(MM)	G(MM)
SFUSSPB0.33	0.33	5.5	6	9	15	21	16	8
SFUSSPB0.5	0.5	7	8	12	18	28	19	10
SFUSSPB0.75	0.75	8	9	12.5	21	31.5	20	11
SFUSSPB1	1	10	11	16	25	36	25	12.75
SFUSSPB1.5	1.5	11	13	18	27	42	28	14.5
SFUSSPB2	2	13	16	22.5	32	45.5	31.5	15.75
SFUSSPB3.25	3.25	17	18.5	27	39	60.5	41	22
SFUSSPB4.75	4.75	19	22	29.5	47	69.5	48	25
SFUSSPB6.5	6.5	22	25.5	37	55	86	57.5	31
SFUSSPB8.5	8.5	26	29	44.5	59	93	67	35.5
SFUSSPB9.5	9.5	29	33	47	66.5	104.5	74	37
SFUSSPB12	12	32	35	53	75	119	80	40
SFUSSPB13.5	13.5	35	37.5	60	83	134	93	40.5
SFUSSPB17	17	39	42	63	91	150	75	37.5
SFUSSPB25	25	44	50	74	107	175	125	55
SFUSSPB35	35	51	55	85	123	195	145	69
SFUSSPB55	55	64	69	105	150	265	182	91
SFUSSPB85	85	75	81	135	160	320	195	97.5

These have a high factor of safety to ensure optimum protection when in use.

*Colour might vary from image*

Test Certificate Supplied (Sent Via Email)

Specifications

Product Code

SFUSSPB1.5

Weight

0.378kg

Delivery & Returns

Delivery is free for all orders over £50. Otherwise, delivery is depending on the items you plan to purchase.Once your product has shipped, it usually takes 2 to 3 business days in UK, 3 to 8 in Europe. 5 to 15 for the rest of the world. You can return your product up to 14 days after receiving your order. Please make sure that the products are not used or damaged.

Customer Reviews

Galvanised Lifting Bow Shackle Screw Pin 1.5 Ton X2 (1.5T Towing Rigging 1500KG)

Name: Galvanised Lifting Bow Shackle Screw Pin 1.5 Ton X2 (1.5T Towing Rigging 1500KG)
SKU: SFUSSPB1.5
Price: 7.50 GBP
Availability: InStock

Item in Stock

Product Code SFUSSPB1.5

These Galvanised Screw Pin Bow Shackles are perfect use as a chain connecting link.

Order within to get it by .

Product Description

2x 1.5 Ton Bow Shackles With Screw Pins

Specifications

Customer reviews

Delivery & Returns

Galvanised Lifting Bow Shackle Screw Pin 1.5 Ton X2 (1.5T Towing Rigging 1500KG)

You may also like

4.5 Ton Swivel Hook With Safety Catch (4500KG Red Painted Tested Certified)

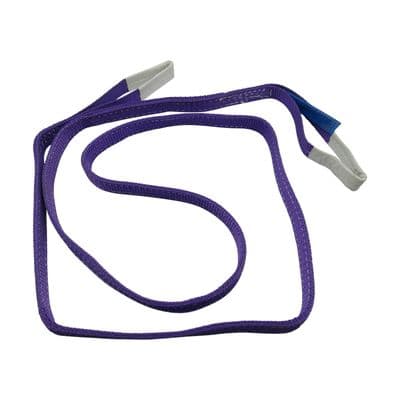

Duplex Lifting Sling Polyester Webbing (1T - 15T, 1M - 12M Web Strap Pulling Strop)
