Product Description

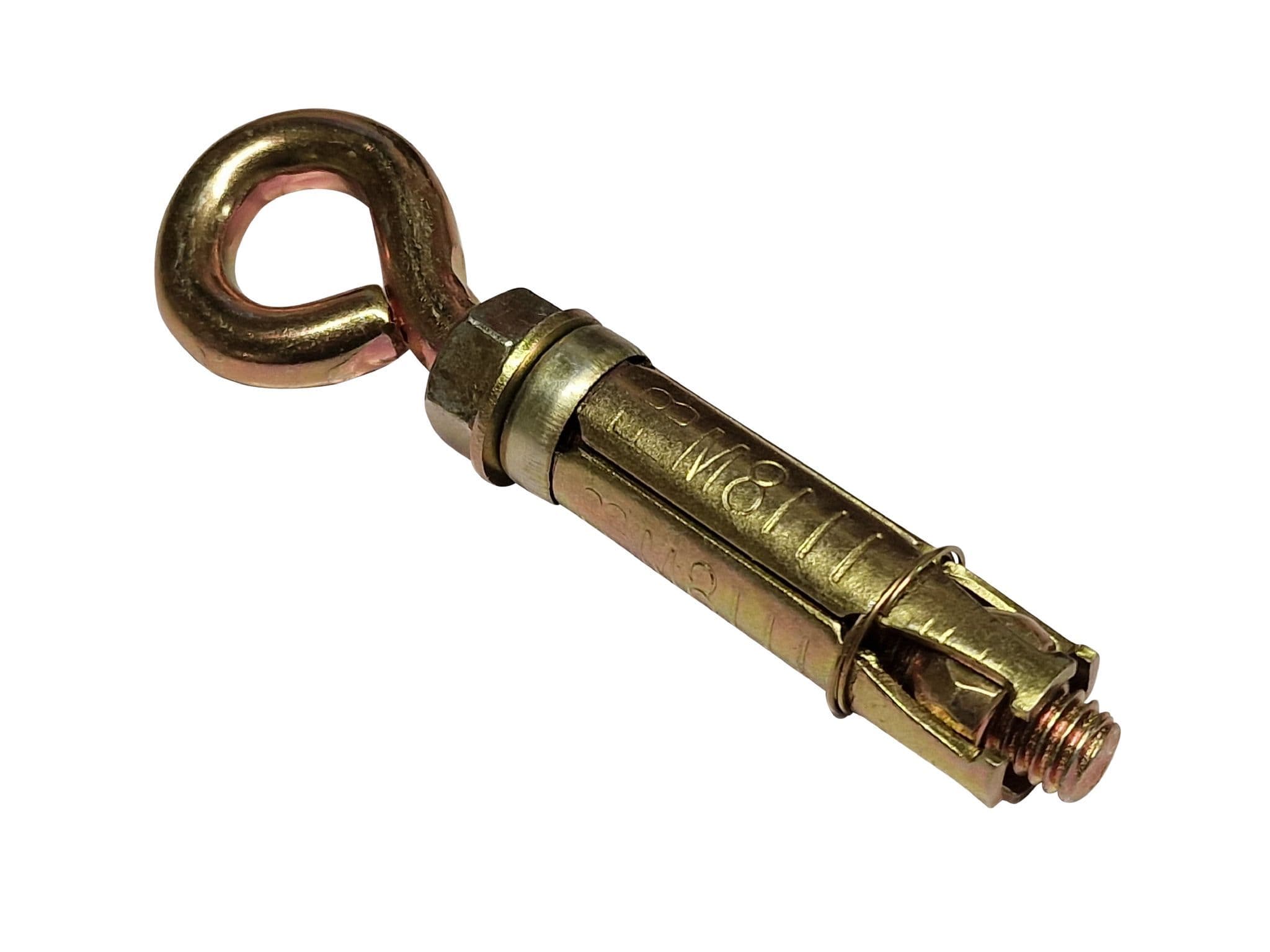

Yellow Passivated Concrete Anchor Bolts M8 M10 M12

A secure fixing point is essential when installing plant, machinery and other items that require support. At SecureFix Direct, we supply a wide range of Ground Anchor Bolts to suit your requirements.

The Expansion Anchor Eye Bolts are available with 8MM, 10MM and 12MM threads and will therefore suit a wide range of applications. The Threaded Anchor Bolts slot into a pre drilled hole in the concrete or cement. By then screwing the Anchor Shield Bolt into the slot, the bottom of the Anchor Bolt will begin to expand, securely fixing the Wedge Anchor Eye Bolt in place.

The Ground Anchor Eyebolts are manufactured with an eye to allow for a range of items to be connected to this eye, such as hooks or shackles. The Anchor Bolts are finished in a Yellow Passivated Zinc coating allowing for a corrosion resistant, durable and long lasting fixing point.

Size  Overall Length  Width  Thread Length  Eye Length  Eye Diameter Internal Eye Diameter  Pull Test Loading
M8 93MM 13.5MM 60MM 33MM 25MM 13MM 15.4KN
M10 109MM 16MM 72MM 27MM 32MM 15MM 24.4KN
M12 140MM 20MM 90MM 50MM 39MM 19MM 35.4KN

Specifications

Product Code
SFGAB0860/01
Weight
0.063kg

Customer Reviews

Concrete Ground Anchor Eye Bolts - M8, M10 or M12 (Threaded Shield Expansion Plug Masonry Cement)

Item in Stock

Product Code SFGAB0860/01

A strong fixing point for your heavy machinery
