Voltage - 12V DC

Open Flow Rate - 3700 Gallons Per Hour

Max Head Lift - 2.5 Metres

Amp's - 16.0, Fuse - 25.0 Max

Outlet DIA / Hose - 40MM

Height x Base Width - 185MM x 122MM

Connection Wires (Positive & Negative) - 1 Metre

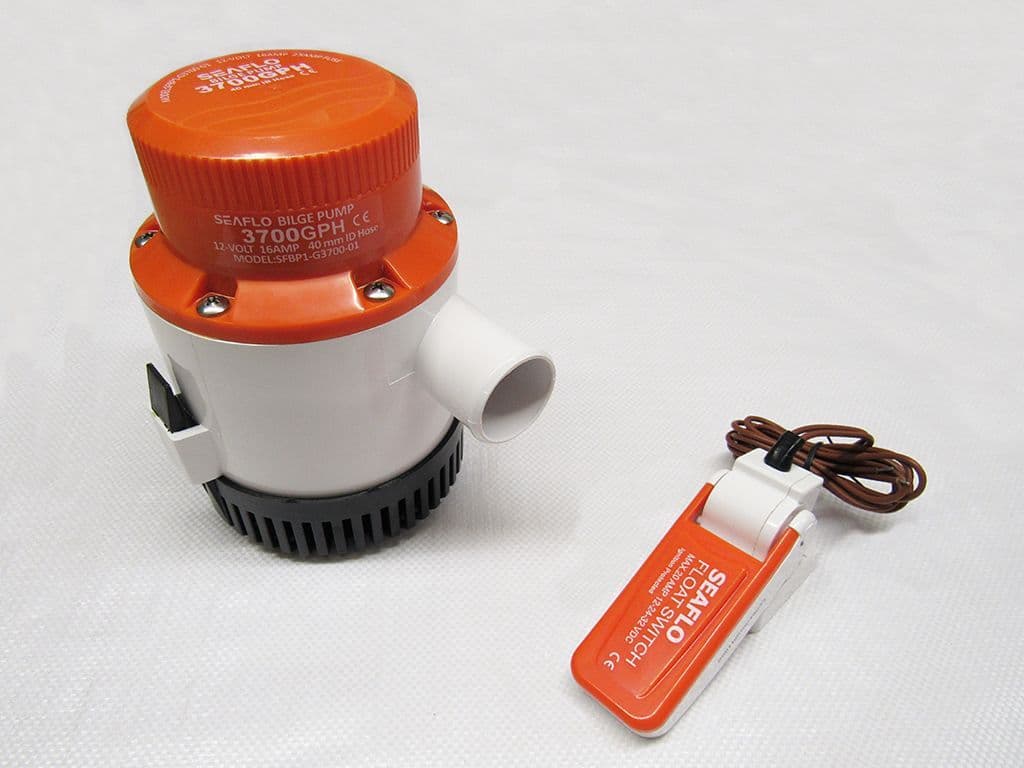

This Compact, Efficient Pump Features A Heavy Duty Motor With Stainless Steel Shafts And Tough Thermoplastic Bodies. They Are Totally Submersible, Ignition Protected And Made To All Existing Safety Standards And CE Certifications So You Can Be Sure Of Maximum Safety. The Motors Are Water Cooled For Long Life With An Anti Airlock Design And Moisture Tight Seals With A No Burn Out If Run Dry. The Strainer Bases Are Snap-Lock For Easy Installation And Removal When Cleaning.

Max Head Stated Is When Using The Above Outlet Hose Size, Using A Smaller Hose Size Will Increase Max Head Lift

THESE ARE ONLY DESIGNED FOR USE IN THE BILGE OF A BOAT

Colours May Vary To Picture, Specifications Will Be The Same

Auto Float Switch

Suitable For - 12V, 24V, 32V Applications

Wire Size x Length - 16 Gauge x 28 Inch

Activates Bilge Pump - 50MM Of Water

De-Activates Bilge Pump - 19MM Of Water

Base Size - 66MM x 44MM

These Auto Float Switches Are Used For Automatically Turning On And Off Bilge Pumps. These Help To Reduce Wear On The Bilge Pump But Will Also Pro Long The Battery As It Is Not In Constant Use. This Model Has A Detachable Base For Easy Cleaning And Maintenance. This Float Switch Does Not Contain Any Mercury.

Always Use The Correct Fuse For The Voltage That This Float Switch Is Used For. This Is Not To Be Used With 110V Applications.

Product Code - SFBP37/SFAFS
