Product Description

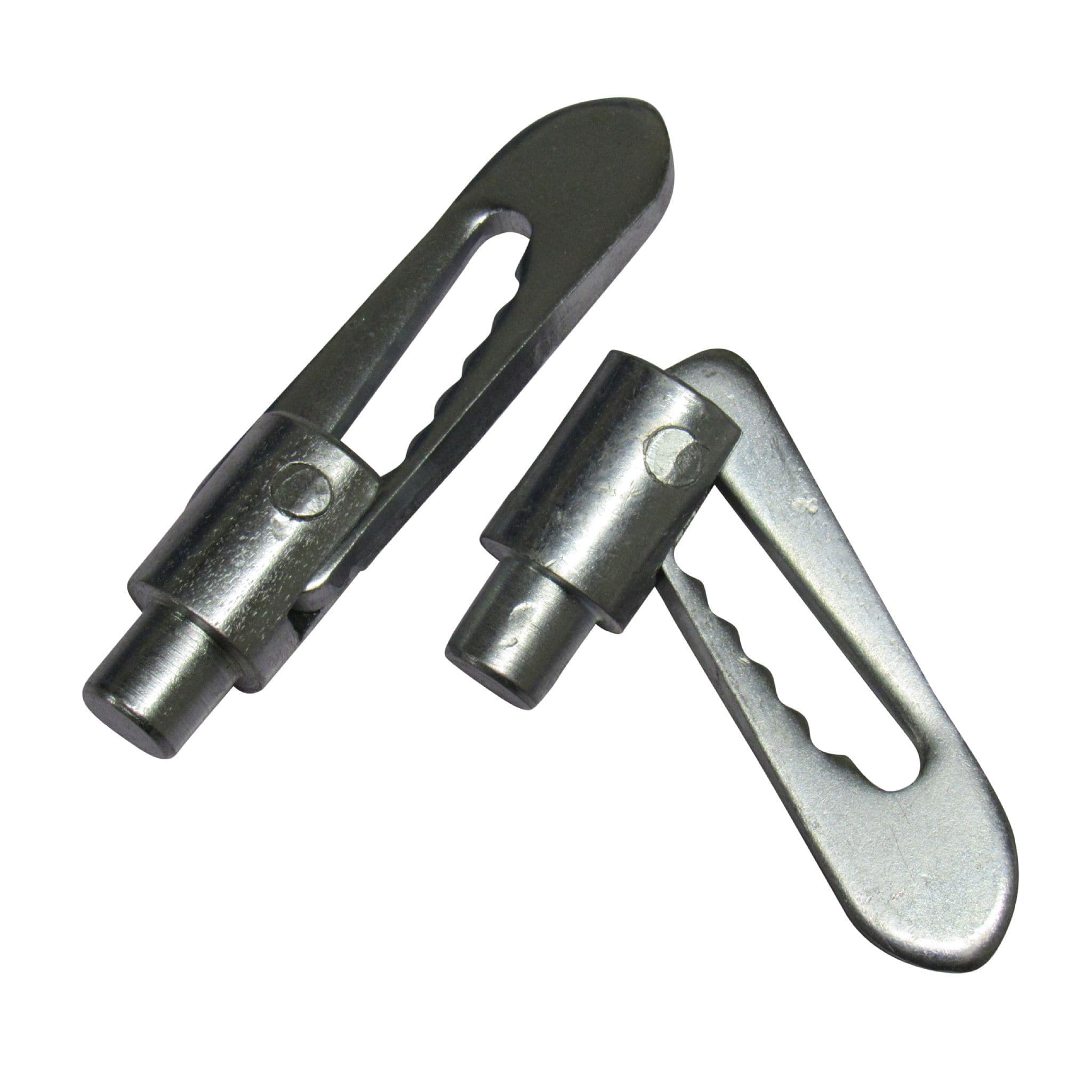

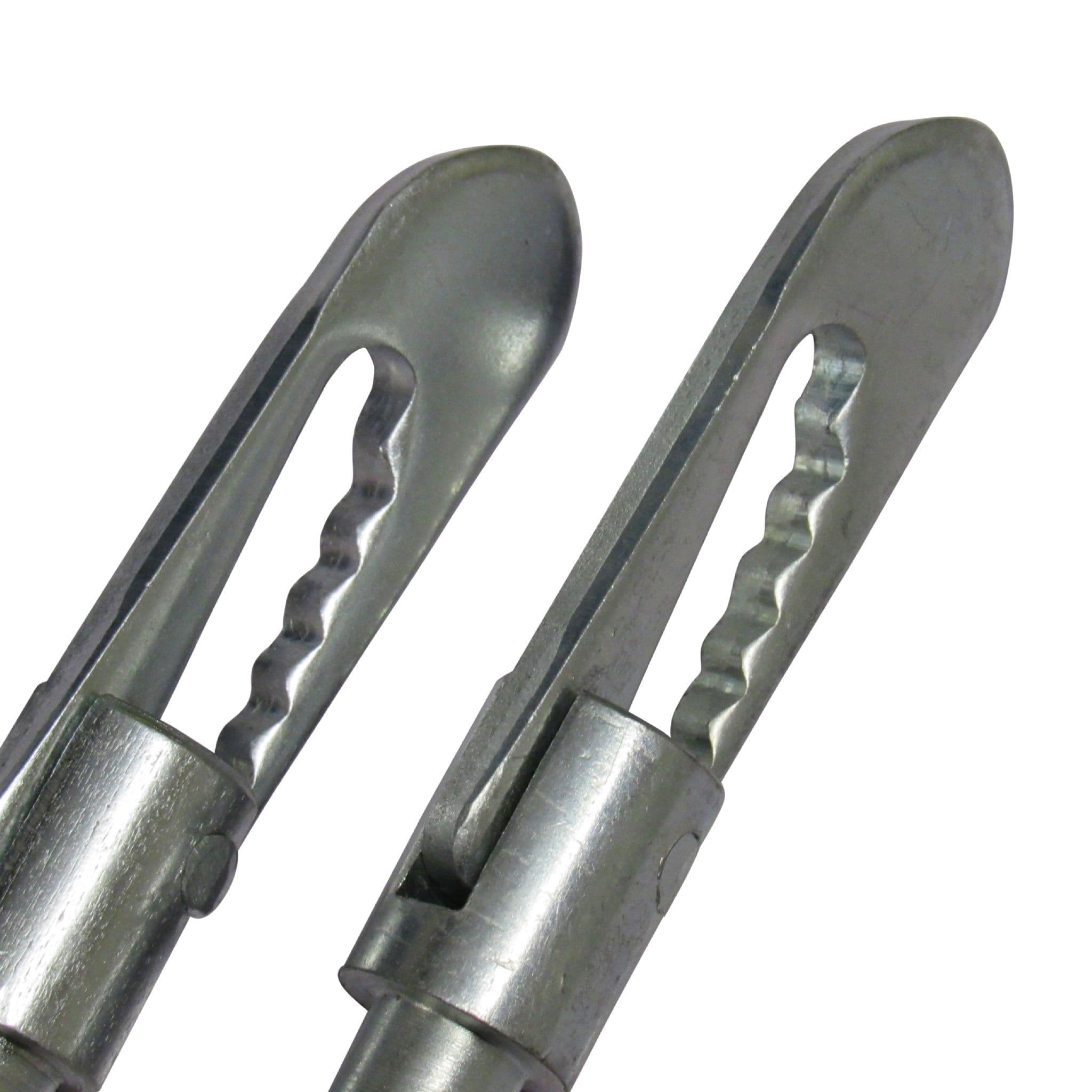

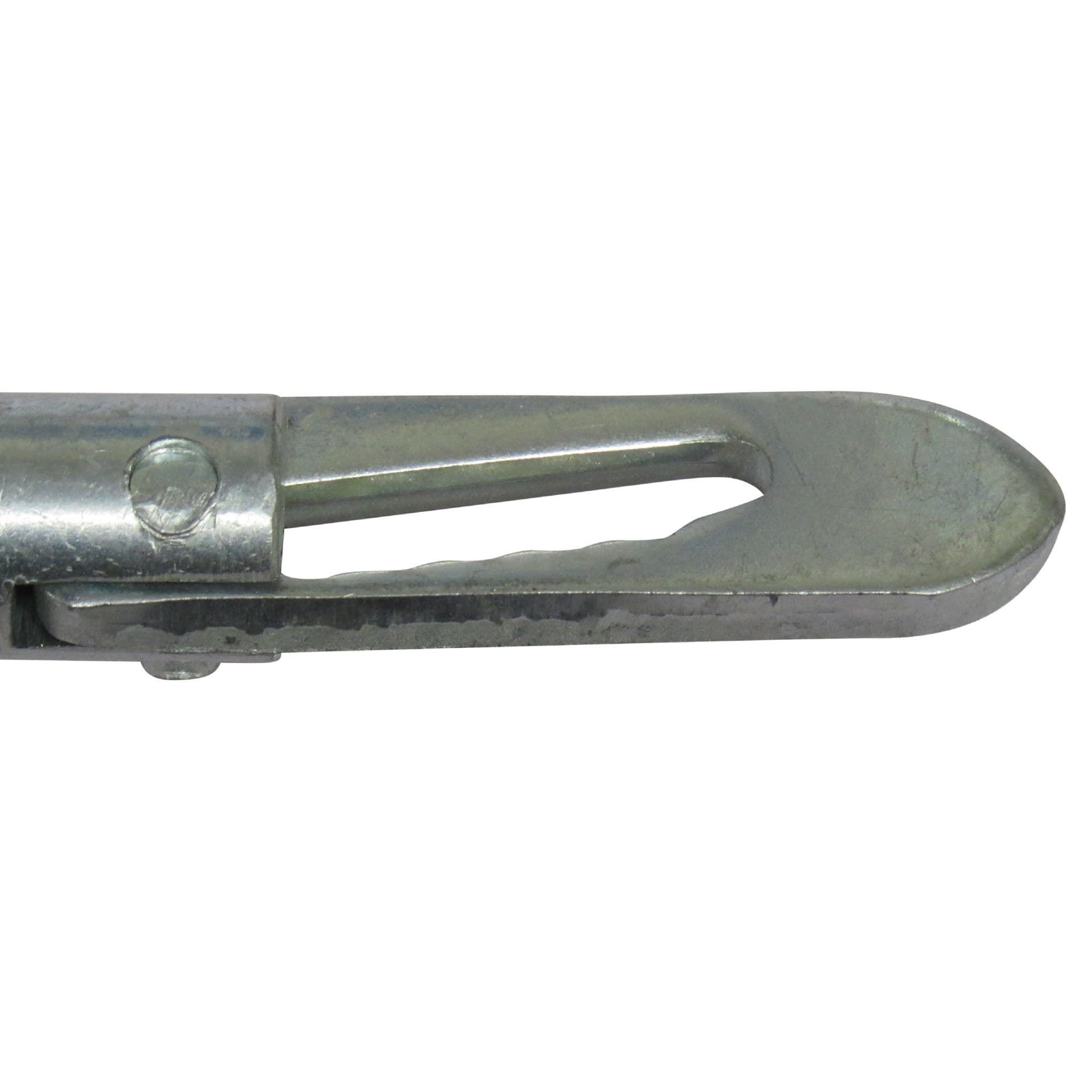

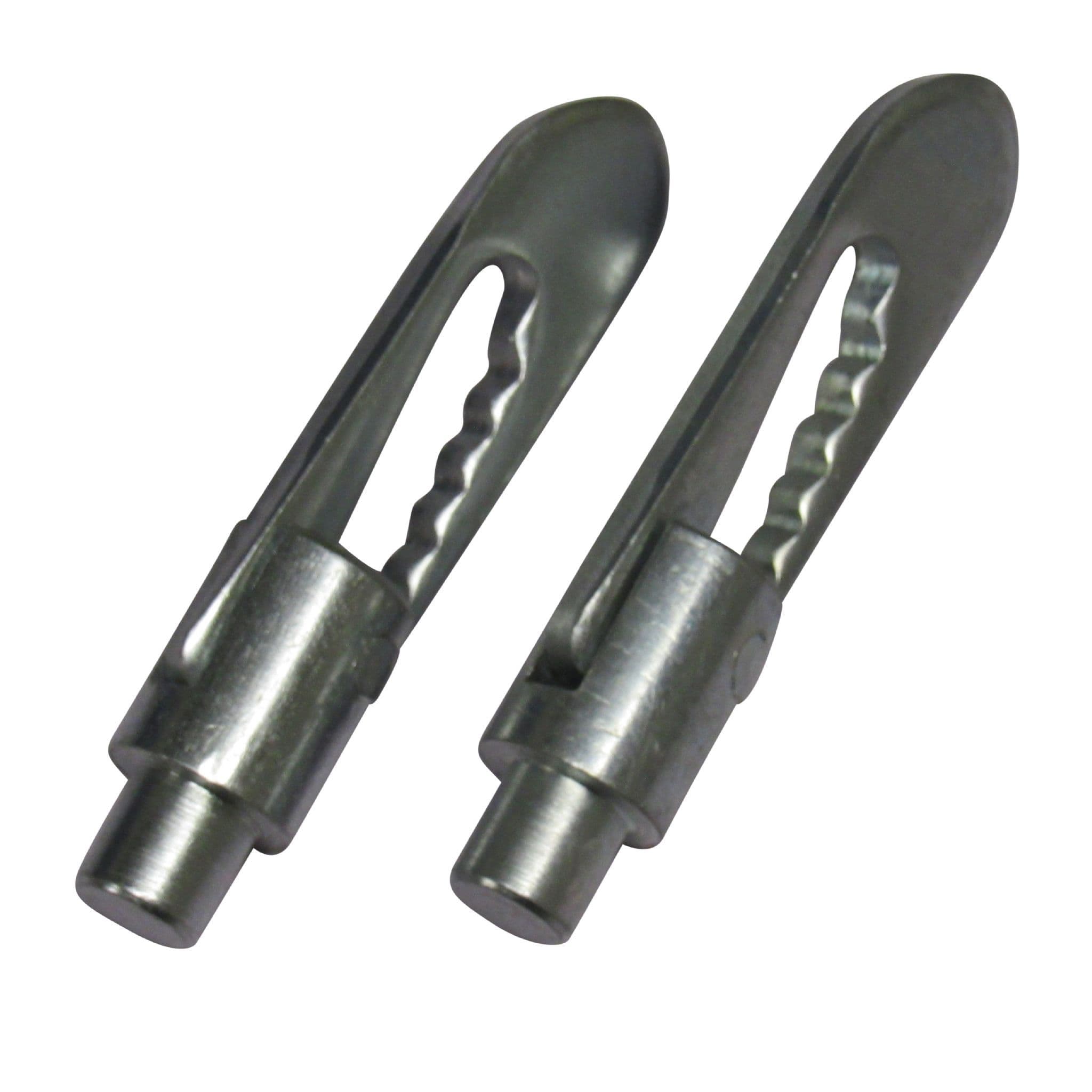

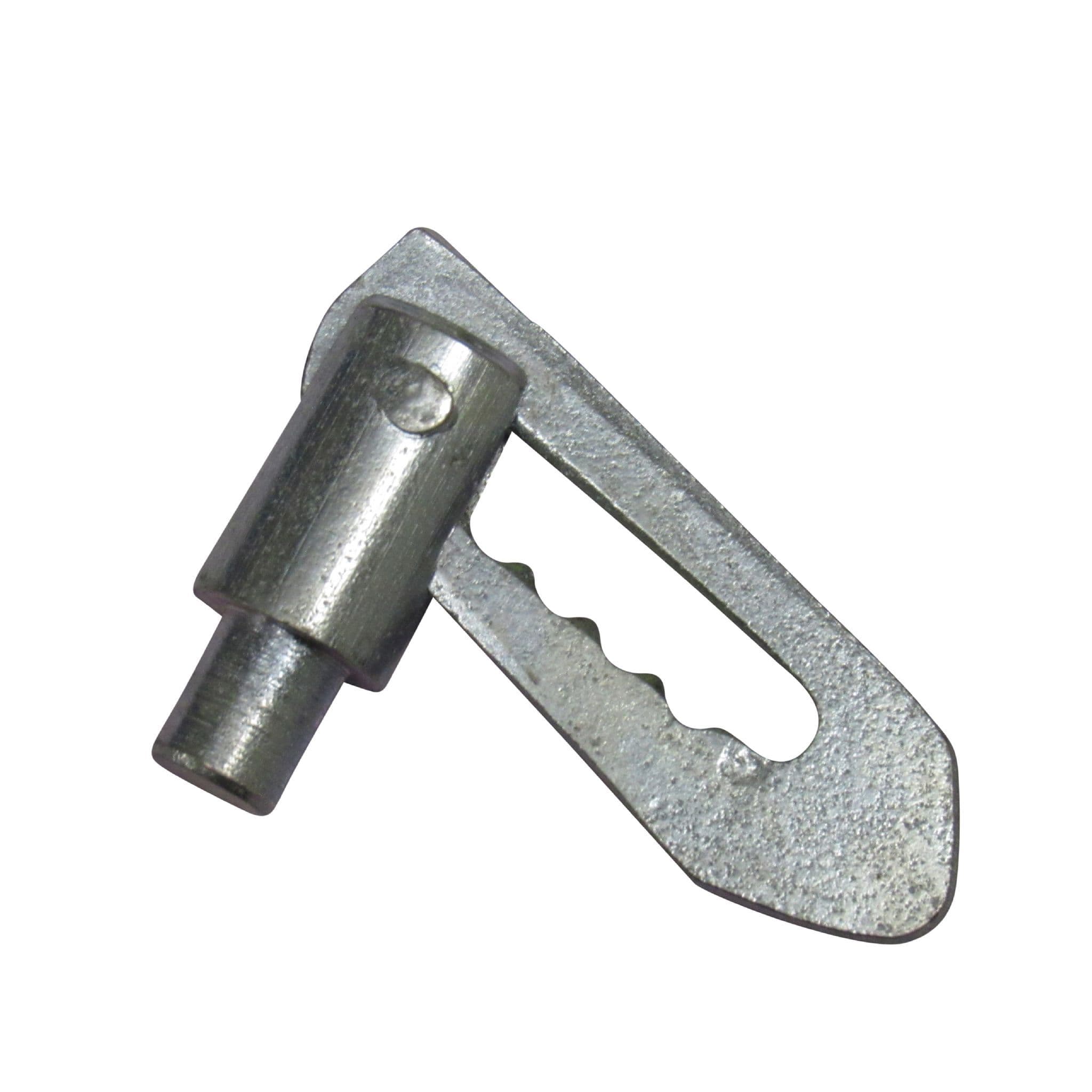

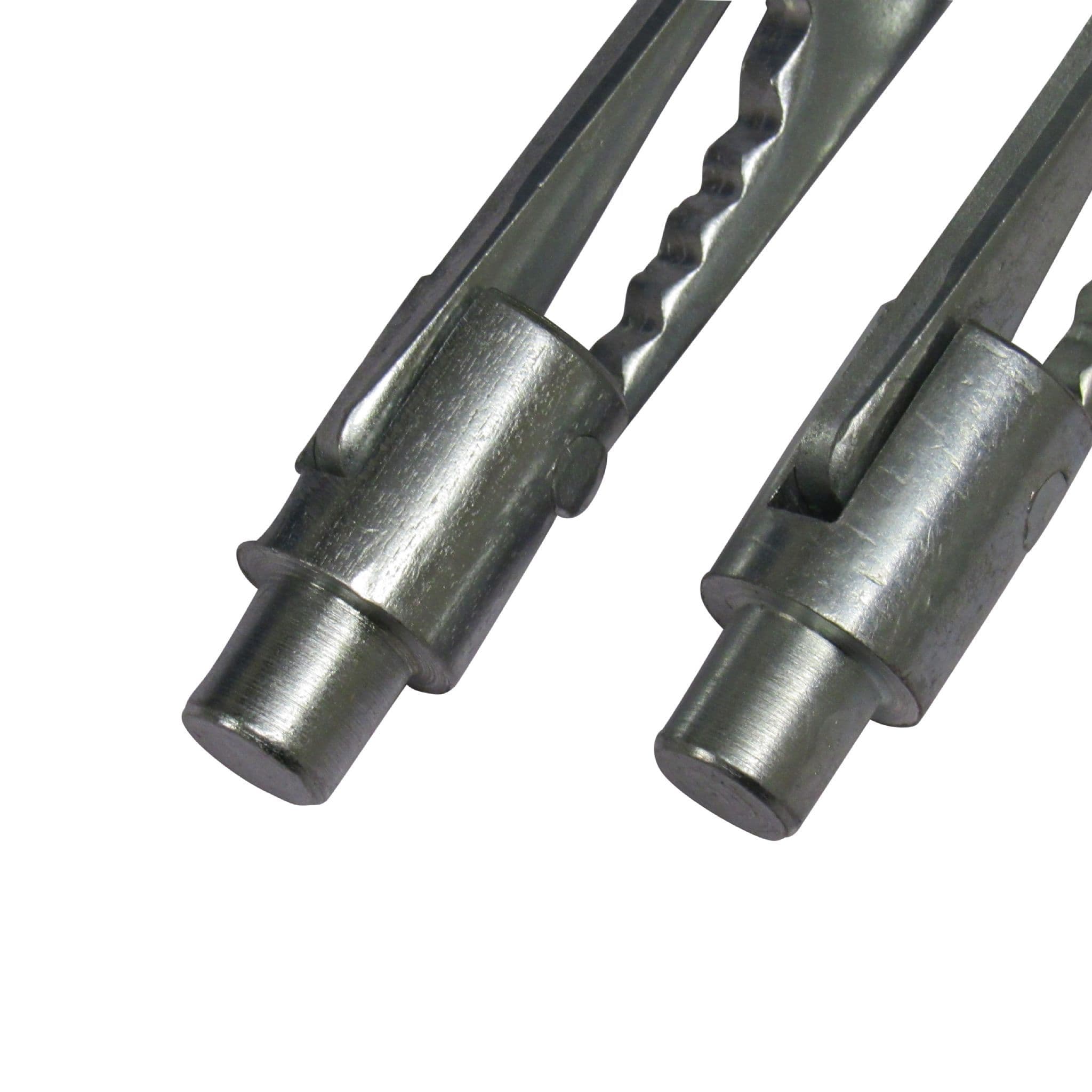

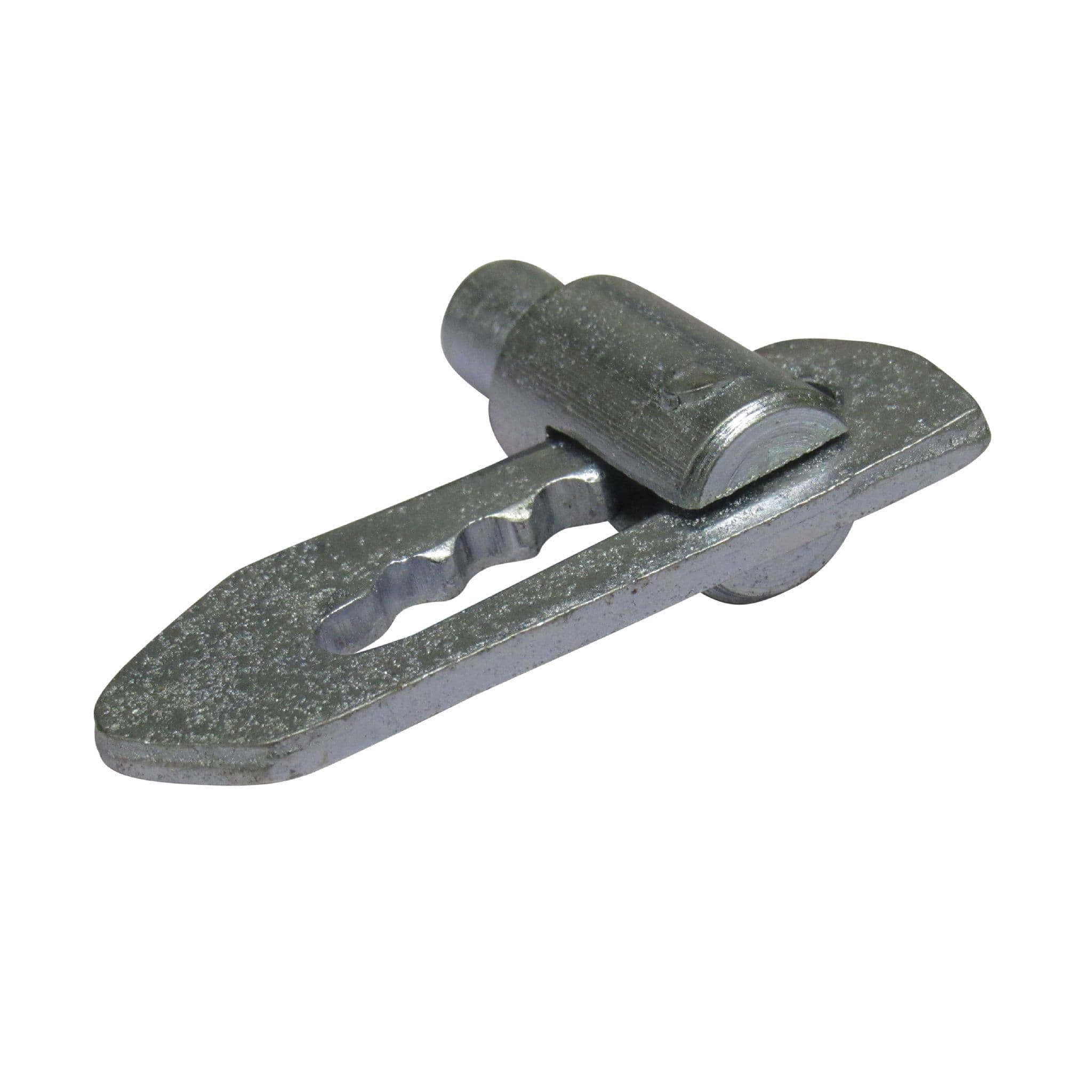

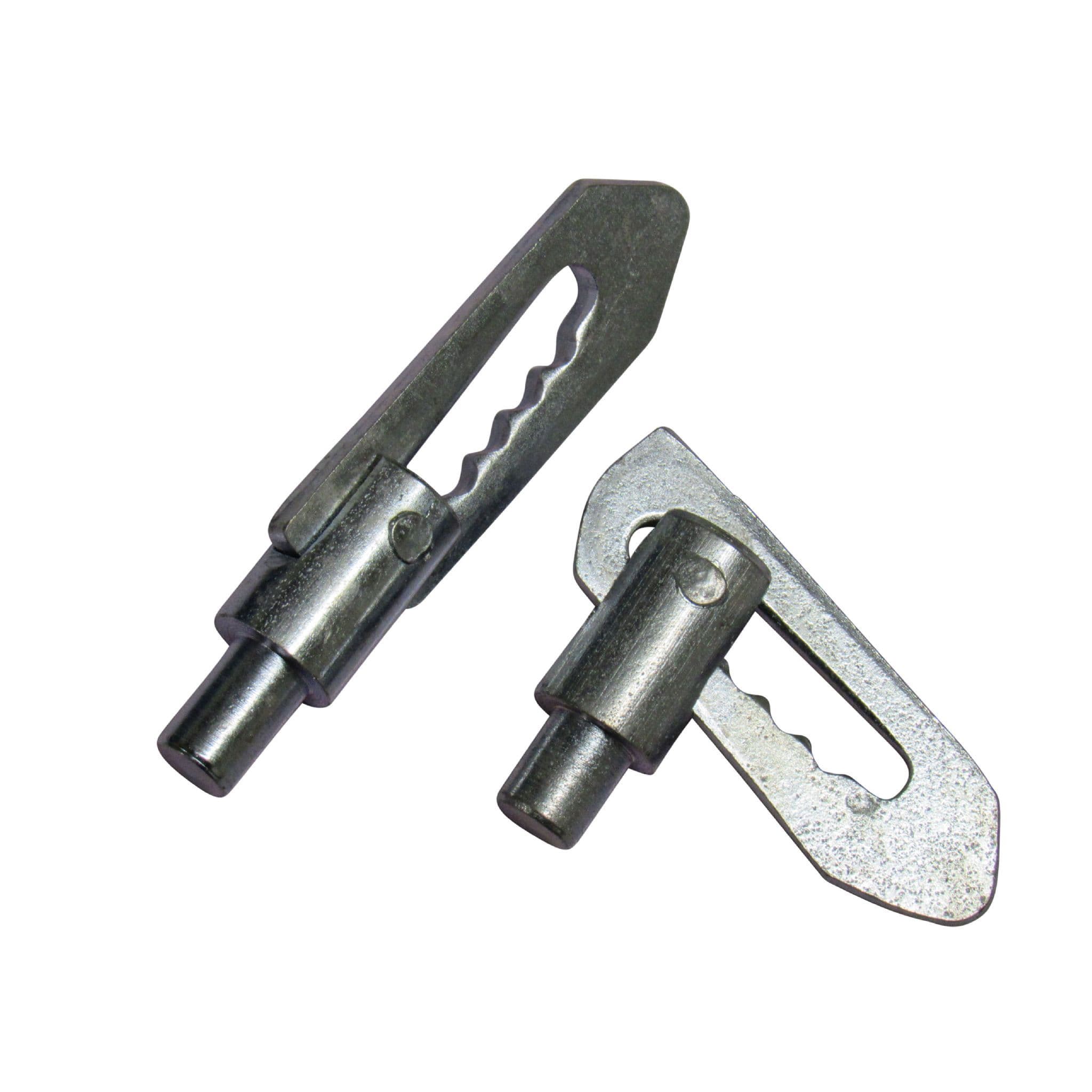

Anti Luce Drop Lock Pins Pack of 2

Here at SecureFix Direct we provide a wide range of Trailer Accessories, the latest addition to this range is these Antiluce Fasteners.

These Drop Lock Pins have a variety of uses but are primarily used on any vehicle that requires panels to be dropped and raised. Our Zinc Plated Pins are especially useful for dropping and raising trailer tailgates, lorry side panels, and horse box tailboards quickly and easily. When the panel needs to be lifted again, the pin is used to secure it back in place. Antiluce Drop Catch Pins can also be used on packing crates to securely fasten them together eliminating the need to use chains to secure the crate panels in place.

Our Anti Luce Fasteners are made from steel and have been zinc-plated for corrosion resistance allowing long lasting use.

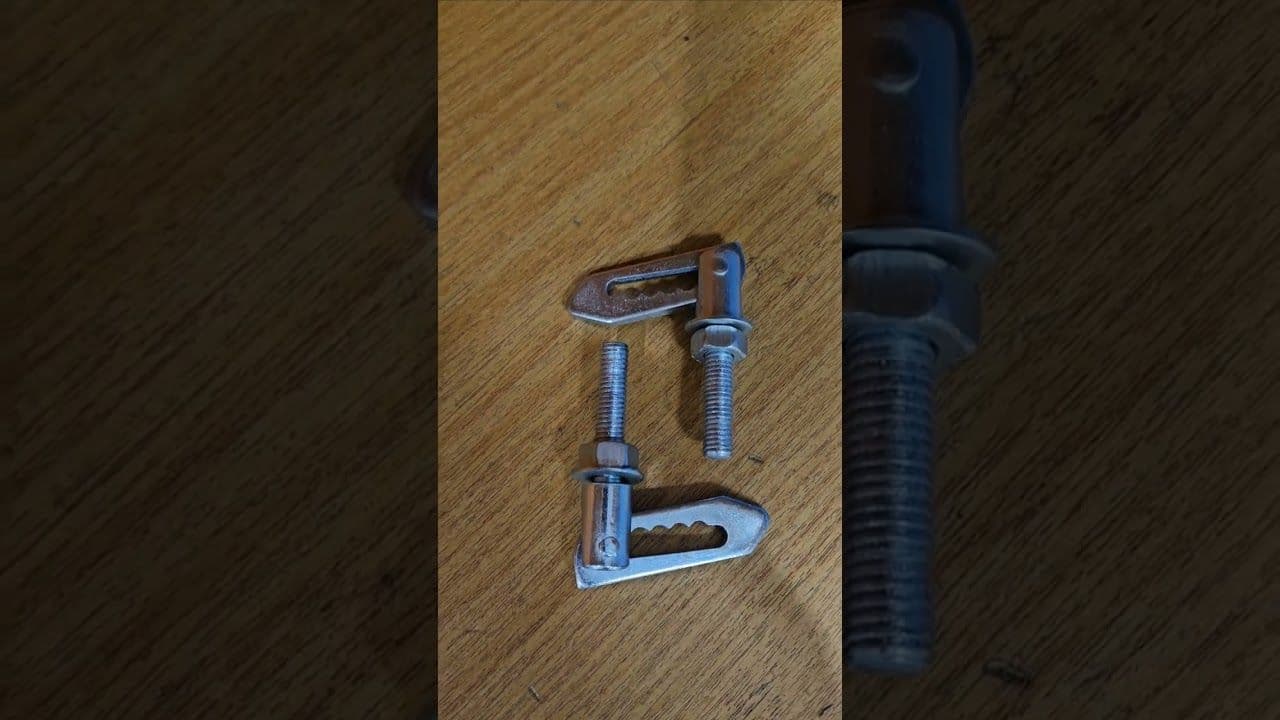

These Antiluce pins are available in sizes 8MM and 12MM with weld on or bolt on options to choose from.

Size & Style

Thread

Diameter

(MM)

Thread

Length

(MM)

Pin

Diameter

(MM)

Pin

Length

(MM)

Overall

Length

(MM)

8MM Bolt On 8 34 15.5 50 92.5
8MM Weld On 8 11.5 15.5 50 69
12MM Weld On 12.5 12.5 20 74 92
12MM x 35MM Bolt On 11.5 36.5 20 74 117
12MM x 75MM Bolt On 11.5 77 20 74 160

Specifications

Thread Diameter
11.5MM
Thread Length
11.5MM
Pin Diameter
15.5MM
Pin Length
50MM
Overall Length
117MM
Product Code
SFAGALP08W/2
Weight
0.033kg

Customer Reviews

Antiluce Fasteners Drop Lock Pins x2 (8MM - 12MM Anti Luce Catch Latch Trailer Bolt)

Item in Stock

Product Code SFAGALP08W/2

Our Antiluce Pins are ideal to secure drop down panels in position on your vehicle.
