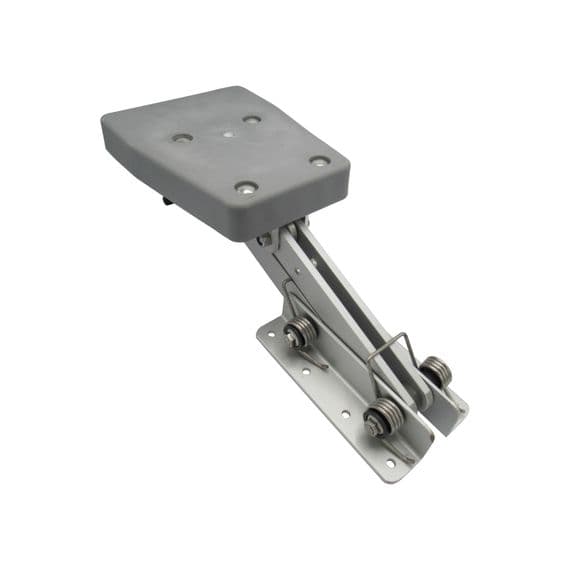

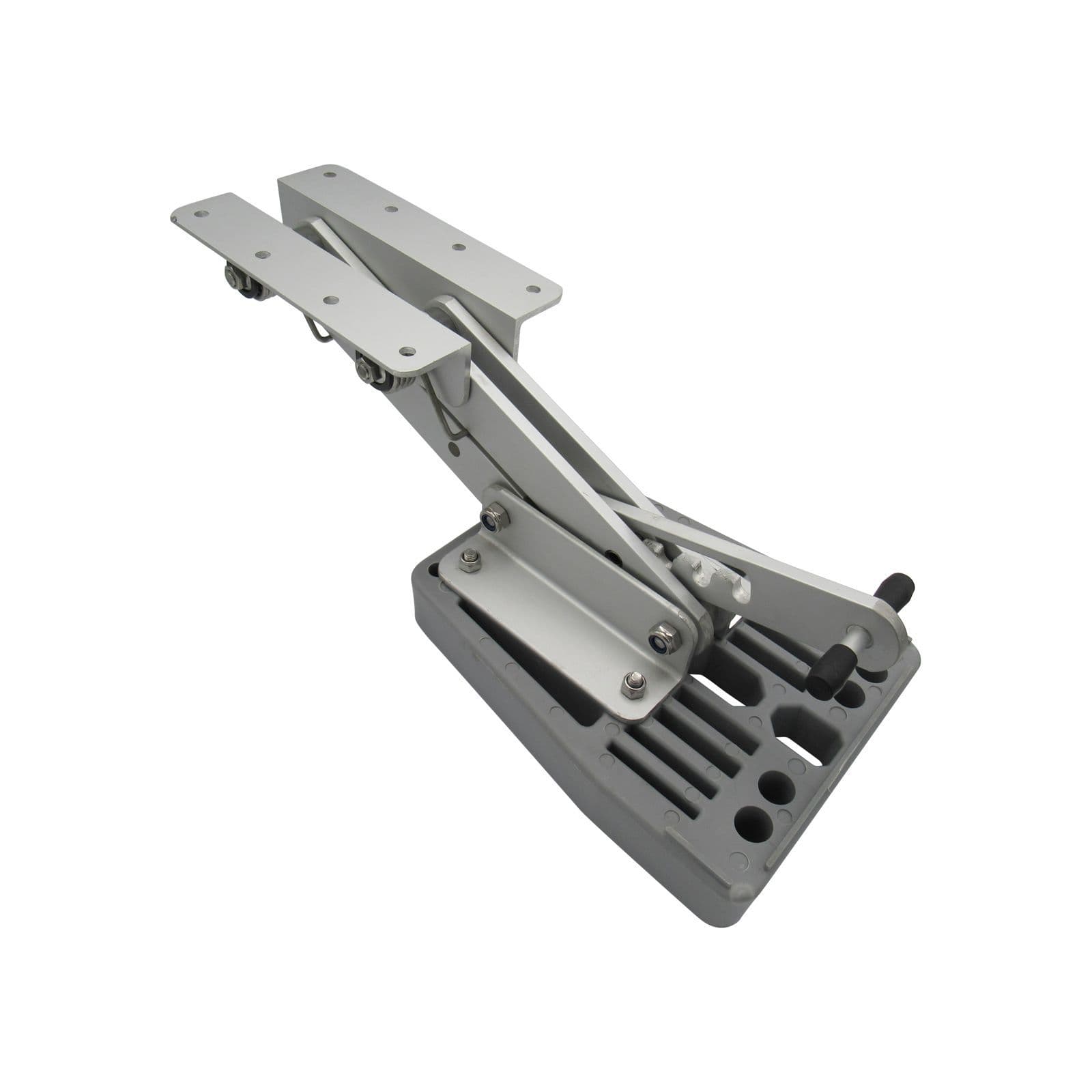

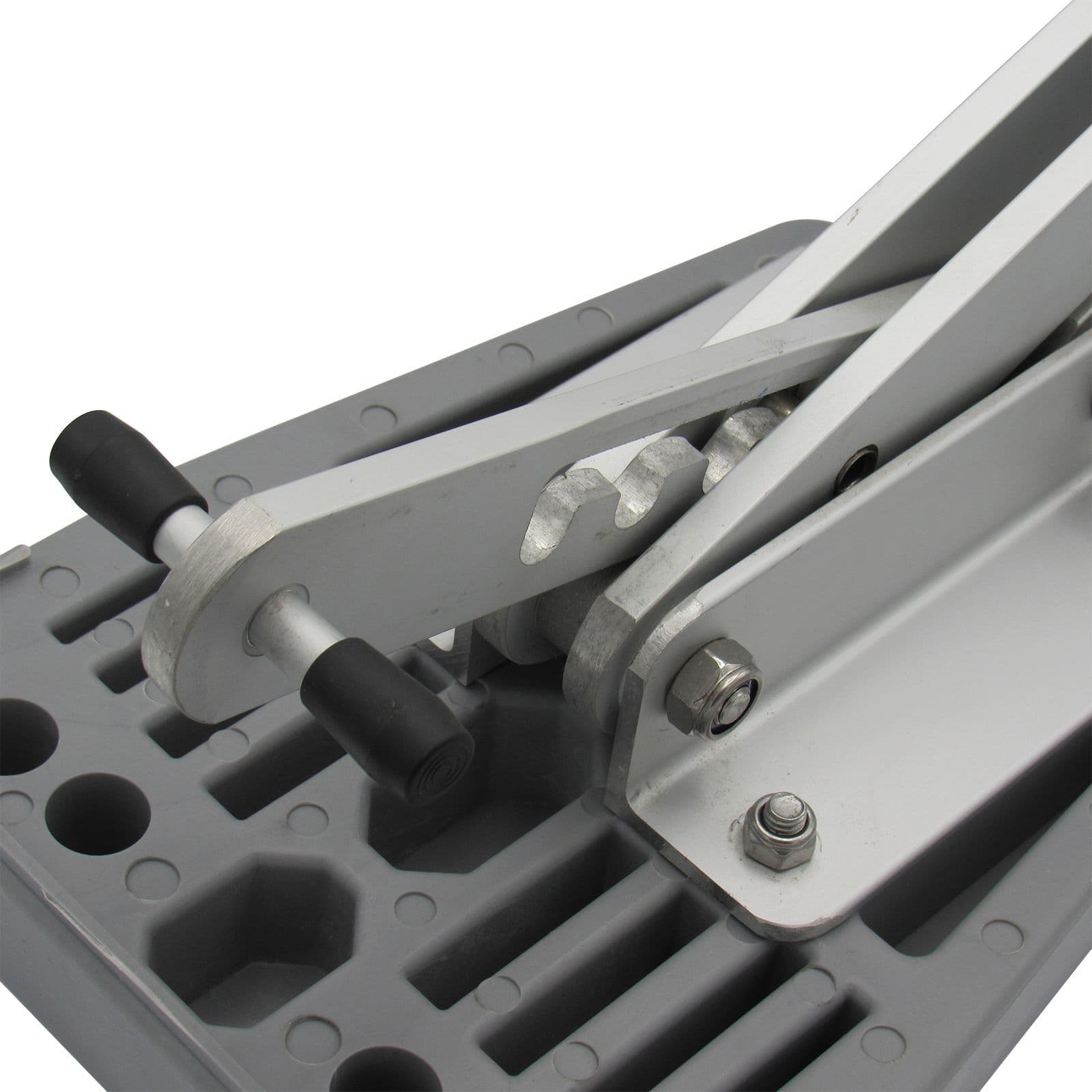

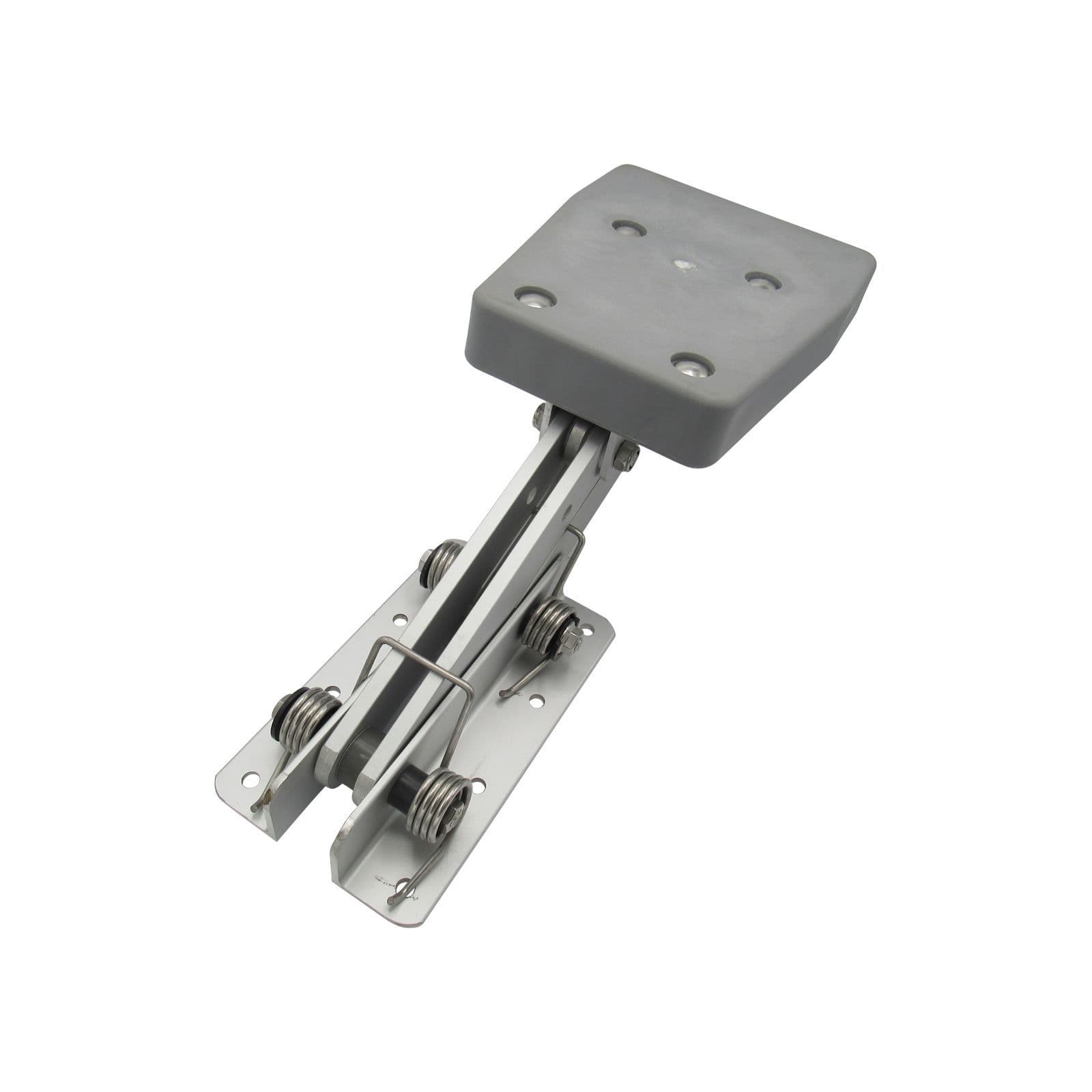

Aluminum Outboard Motor Bracket

Max Capacity - 40KG

Mounted - Vertically

Vertical Distance Between Drill Hole Centres - 63MM

Horizontal DistanceBetween Drill Hole Centres - 96MM

Fixing Bracket Length x Width x Thickness - 220MM x 130MM x 5mm

woodenPad Length x Min To Max Width - 265MM x 175MM to 210MM

woodenPad Thickness - 45MM

Number Of Fixing Holes - 8

Min To Max Horizontal Extension From Bracket - 176MM to 320MM

Adjustable Vertical Range - 300MMThese Aluminum Outboard Motor Brackets Are Perfect For Smaller 2 Stroke Outboard Motors As They Are Lighter Than Their 4 Stroke Counterparts.

They Are Adjustable To Allow You To Easily Lift And Lower The Motor Into The Desired Position.Please Note We Stock A Huge Variety Of Marine Equipment And Supplies.

*** FREE DELIVERY ***

Product Code - SFSM1001P
