4.75 Ton Safety Pin Galvanised Dee Shackle - 4750KG Upset Forged Tested Certified

Product Description

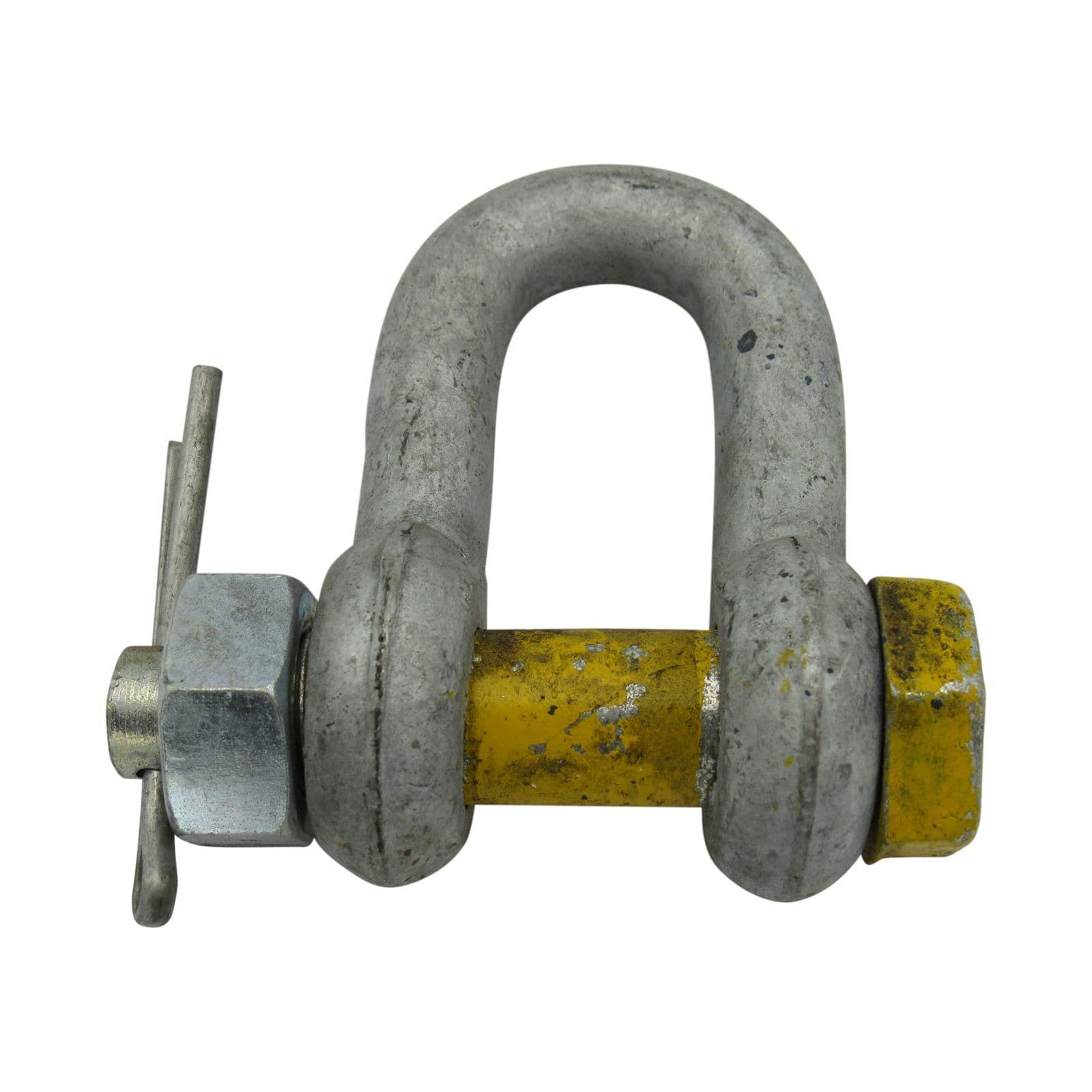

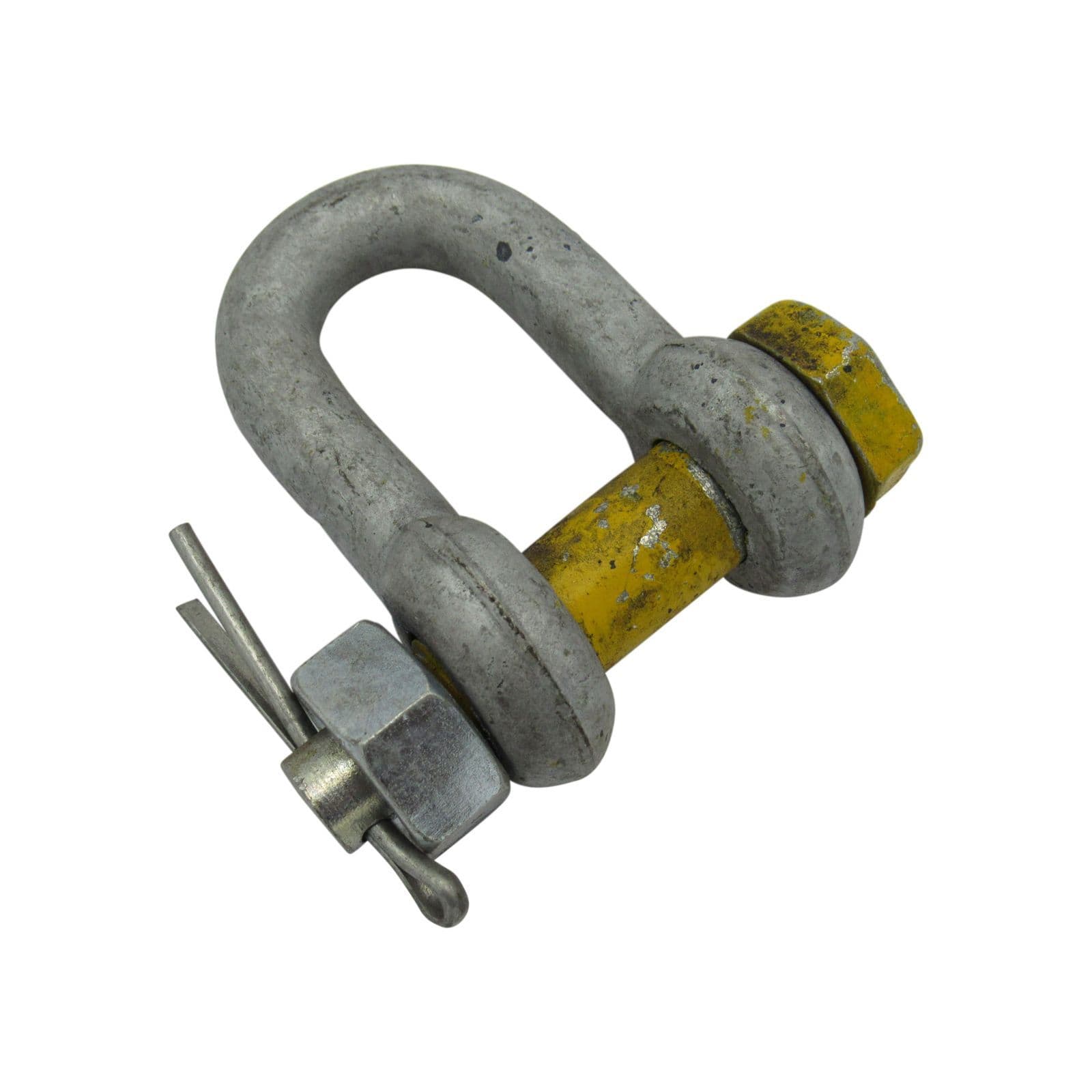

Dee Shackle With Safety Pin

US Federal Specification RR-C-27IDIV

Manufactured: Upset Forged

Body Finish: Hot Dipped Galvanised, Pin Finish: Painted

Safety Factor: 5:1

Safe Working Load - 4.75 Tons

Conforms To: BS EN 13889: 2003 + A1: 2008

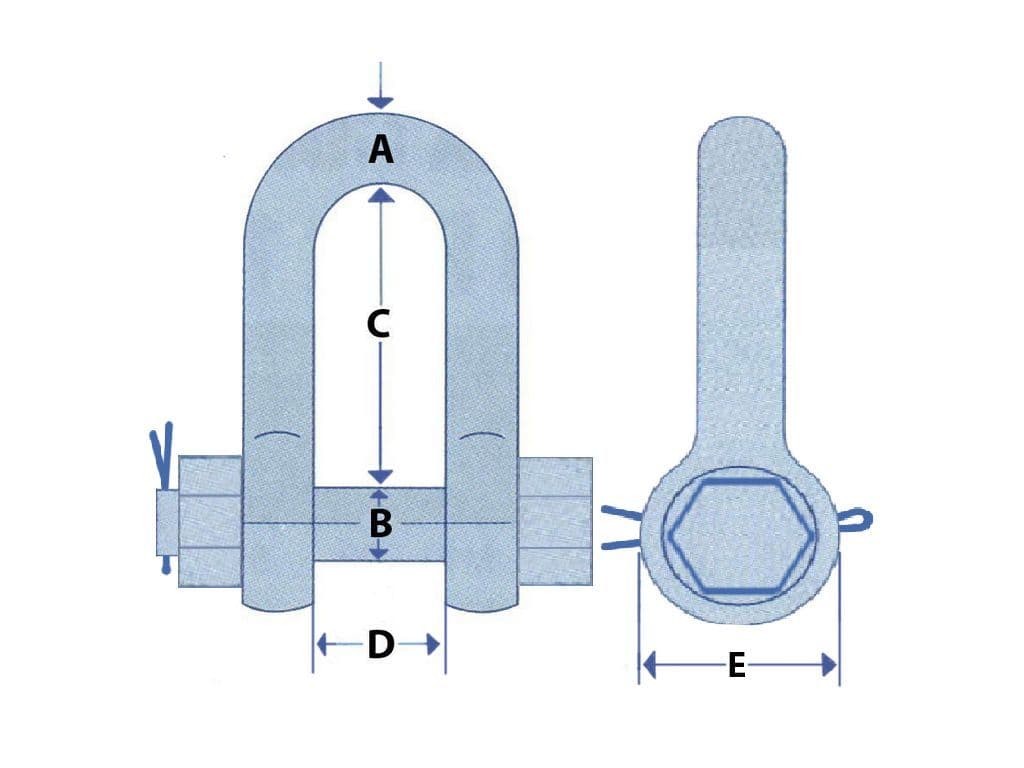

Code	SWL TON	A (MM)	B (MM)	C (MM)	D (MM)	E (MM)
SFYPUFSAD2	2	14	16.5	41	20.5	33.5
SFYPUFSAD3.25	3.25	16.5	20.5	56	26.5	40.5
SFYPUFSAD4.75	4.75	20	22	61.5	32	48.5
SFYPUFSAD6.5	6.5	22	27	69.5	35.5	56
SFYPUFSAD8.5	8.5	25.5	30	80.5	41.5	59.5
SFYPUFSAD9.5	9.5	30	33.5	92.5	43.5	68.5
SFYPUFSAD12	12	33	36.5	105.5	50.5	76.5
SFYPUFSAD13.5	13.5	34.5	39.5	119	54.5	86
SFYPUFSAD17	17	38	42.5	125.5	58	96
SFYPUFSAD25	25	45.5	52.5	165	74.5	110.5

They Have A High Factor Of Safety To Ensure Optimum Safety When In Use.

These Shackles Are Fitted With A Safety Pin For Extra Security When In Use.

*Please Note Colour Can Vary To Picture*

Test Certificate Supplied (Sent Via Email)

*Please Note We Supply A Huge Variety Of Lifting Equipment*

*** FREE DELIVERY ***

Product Code - SFYPUFSAD4.75

Specifications

Product Code

SFYPUFSAD4.75

Weight

1.17kg

Delivery & Returns

Delivery is free for all orders over £50. Otherwise, delivery is depending on the items you plan to purchase.Once your product has shipped, it usually takes 2 to 3 business days in UK, 3 to 8 in Europe. 5 to 15 for the rest of the world. You can return your product up to 14 days after receiving your order. Please make sure that the products are not used or damaged.

Customer Reviews

4.75 Ton Safety Pin Galvanised Dee Shackle - 4750KG Upset Forged Tested Certified

Item in Stock

Product Code SFYPUFSAD4.75

This Dee Shackle Is Great For Many Lifting Applications.
