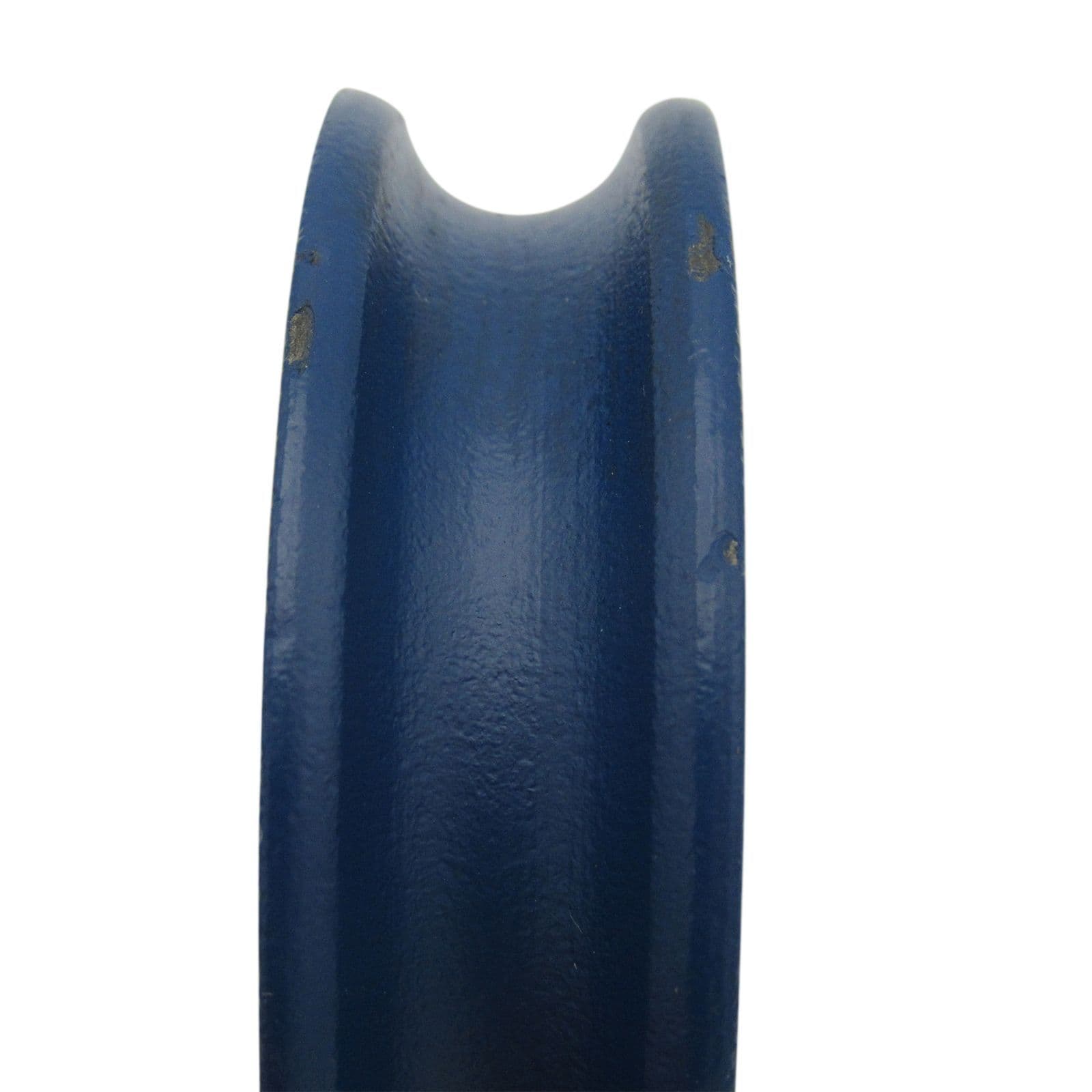

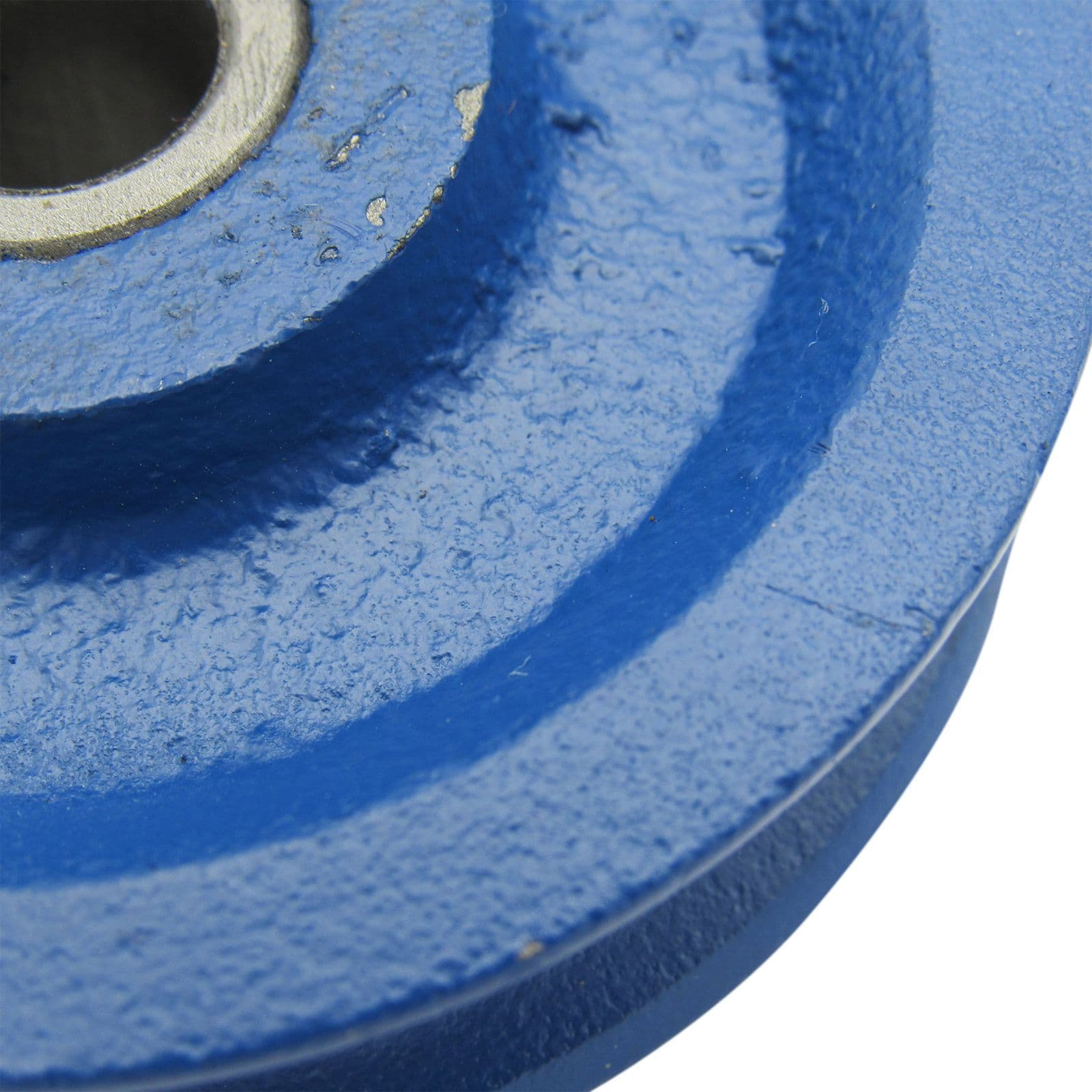

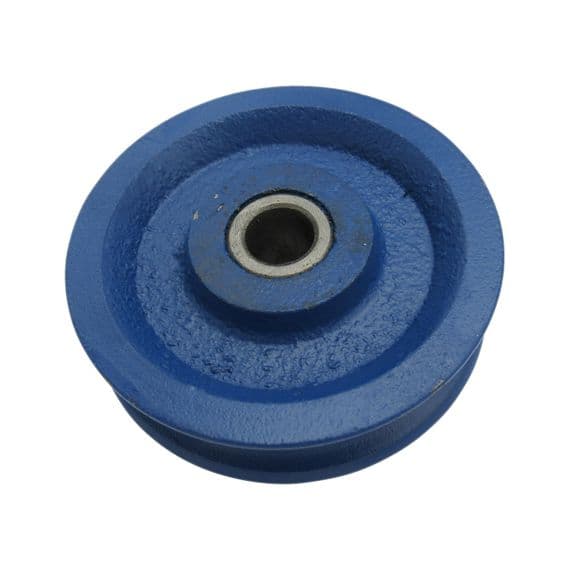

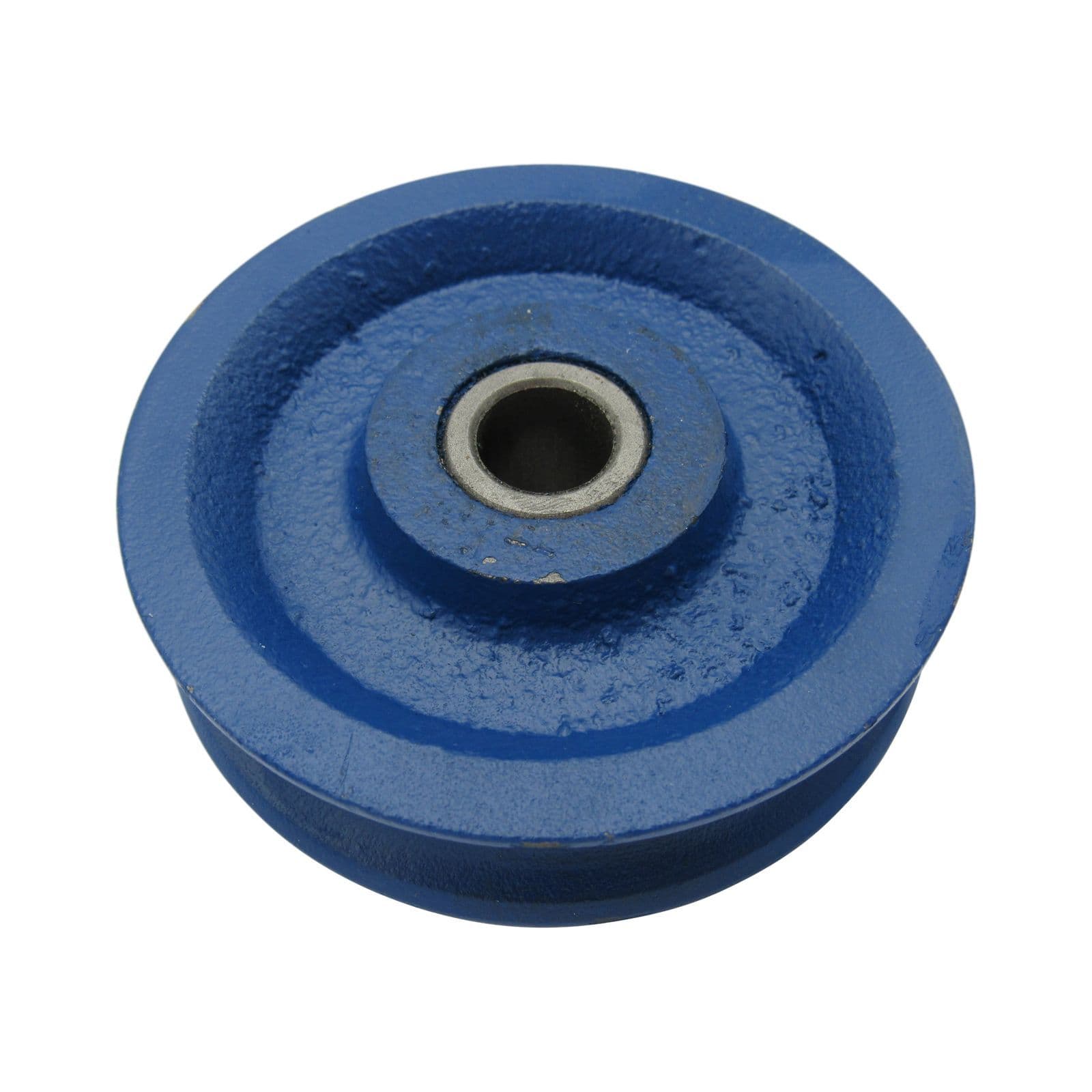

250MM Blue Painted Cast Iron Sheave With Bush

Our heavy duty 250mm blue painted spare sheave is made from cast iron steel and would make an ideal replacement for a broken sheave. This pulley wheel sheave is suitable for a 22mm diameter wire rope.

Sheaves can be found in a range of equipment such as pulley blocks or in equipment that uses wire cable. They are especially prevalent in the industrial sector, whilst also being commonplace in the agricultural and marine industries.

We can provide replacement sheaves for sizes 75mm (8mm wire) to 300mm (25mm wire).

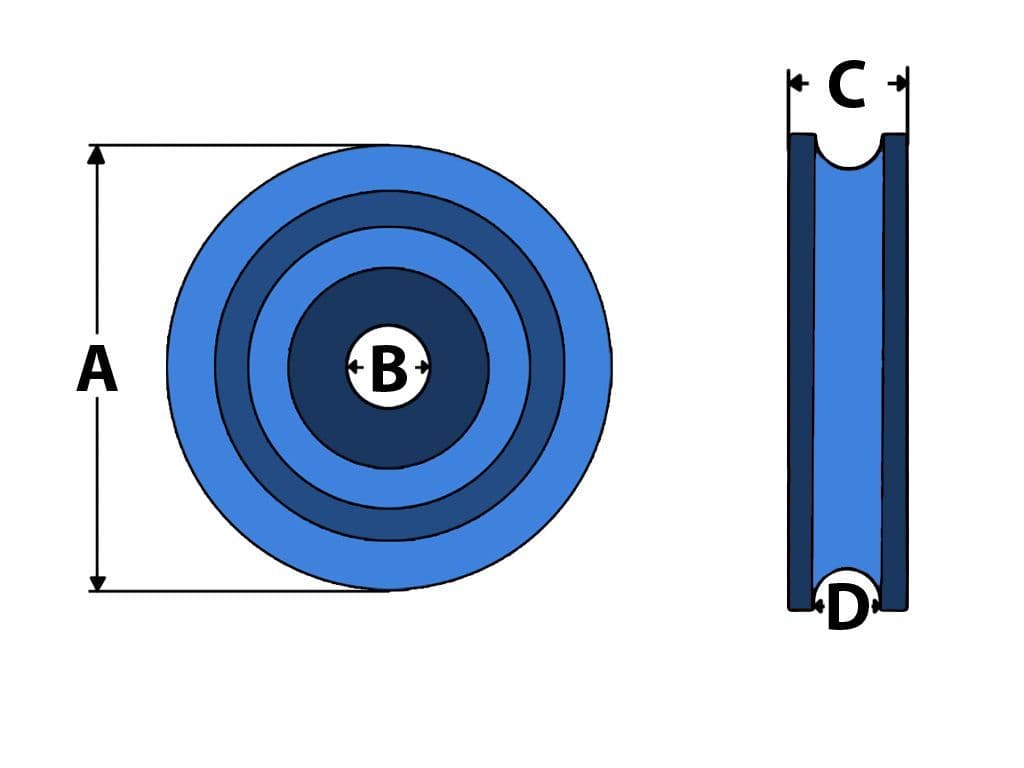

Please follow our size guide in the table below to find the sheave size you require.

Product Code	A (MM)	B (MM)	C (MM)	D (MM)
SFSH075	75	11.9	19.5	11.7
SFSH100	99.7	16.9	23.9	13.7
SFSH125	124.8	19.7	27	16.9
SFSH150	149	27.9	32.8	19.4
SFSH175	177	31.9	40	23.3
SFSH200	199	37.6	47	26
SFSH250	248	48	58	29
SFSH300	298	52	61.1	37.6
