Product Description

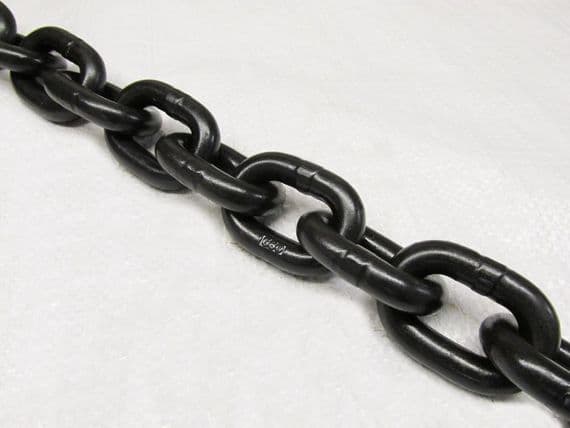

Grade 80 Short Link Chain

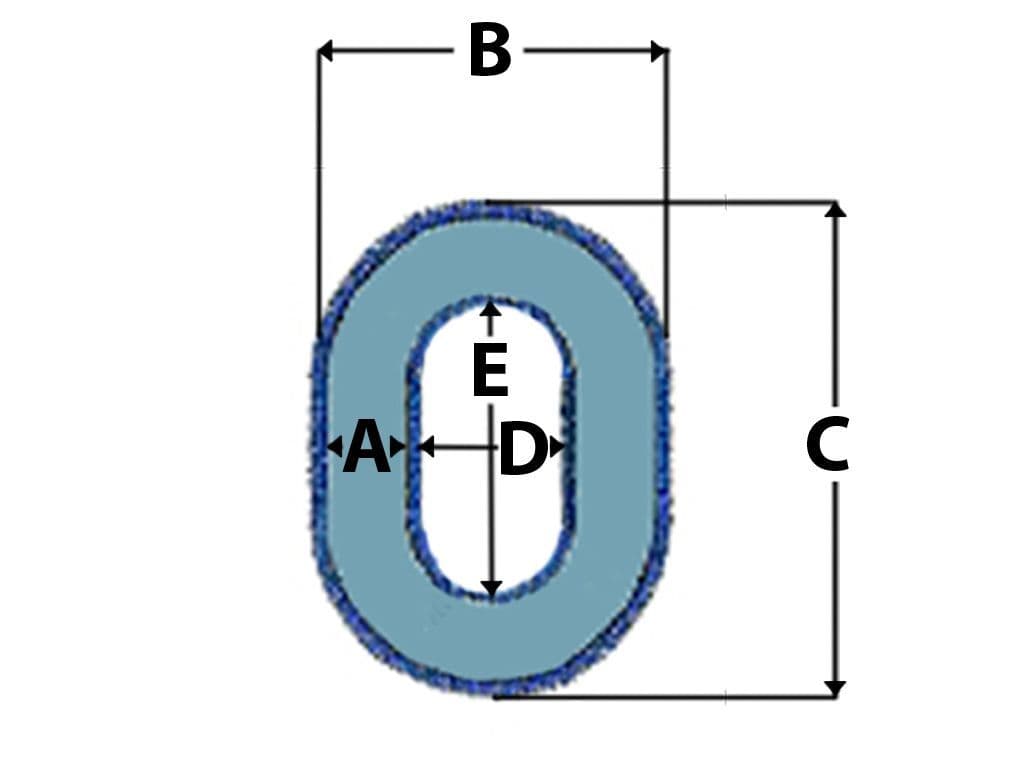

Product Code A (mm) B (mm) C (mm) D (mm) E (mm)
SFASSL07 7 24 34 10 21
SFASSL08 8 28 39.5 11 24
SFASSL10 10 35 49 14.5 30
SFASSL13 13 43.5 64.5 17 39.5
SFASSL16 16 55 79 22.5 47.5
SFASSL20 20 71 98 31 60
SFASSL22 21 75 110 32 67

This Heavy Duty Grade 80 Short Link Chain can often be seen in the lifting industry and in various other applications. Most commonly, chain such as this is found when used as part of a chain sling. These are also often used as part of a rigging setup, or as chain tie down lashing to hold heavy goods in place. With a painted and oiled finish, it has corrosion resistant properties. The Grade 80 Alloy Steel Chain is usually connected to other Grade 80 components, such as Masterlinks, Component/Chain Connectors and clevis style fittings such as Sling Hooks or Grab Hooks.

Our Grade 80 Chain is available in sizes including 7MM, 8MM, 10MM, 13MM, 16MM, 20MM & 22MM. Please see the table above for detailed item size specifics for all of our Grade 8 Lifting Chain.

Please enter the length of Grade 80 Chain required (in metres) into the quantity box during the checkout procedure. Dispatch can take 1-2 working days due to the lifting chain needing to be cut to size. Price per 1 Metre.

Test Certification is supplied via email once purchased.

Specifications

Finish
Oiled and Painted
Grade
80
Link Type
Short Link
Conforms To
BS EN 818-2
Safety Factor
4:1
SWL
12.5T
Product Code
SFASSL20
Weight
9kg
