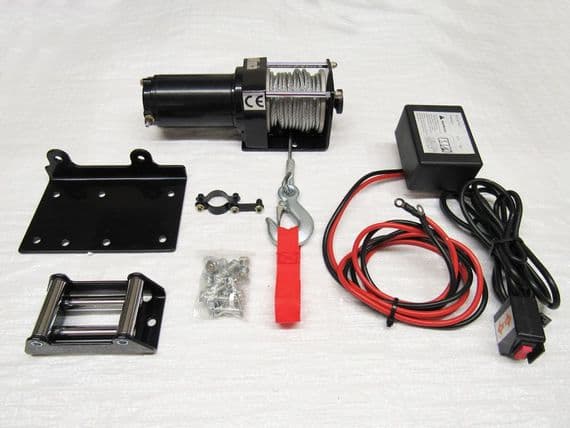

12V 3000LB Electric Recovery Winch - Trailer Truck Boat ATV Car Van Wired Remote

Product Description

12V Electric Recovery Winch

Single Line Maximum Capacity - 3000LB

Winch Length X Width X Height - 295MM X 120MM X 105MM

Remote Cable Length - 2.8M

Power Cable Length - 1.7M

Hook Internal Clearance - 22MM

Base Plate Length X Width - 190MM X 127MM

Total Wire Rope Length - 10.5M

Gear Reduction Ratio - 153:1

Motor - Permanent Magnet 1.0KW/1.34HP (12V)

Braking Action - Mechanical And Dynamic

Drum Diameter - 1.24" (31.5MM)

Drum Length - 2.88" (73MM)

Line Speed And Motor Current (First Layer)

Line Pull	LB	0	1000	2000	3000
Line Pull	KG	0	454	907	1361
Line Speed	FT/MIN	9.5	6.6	4.3	2.3
Line Speed	M/MIN	2.9	2.0	1.3	0.7
Motor Current	AMPS	10	25	60	150

Line Pull And Cable Capacity

Layer Of Cable		1	2	3	4	5	6
Rated Line Pull Per Layer	LB	3000	2370	1960	1670	1460	1290
Rated Line Pull Per Layer	KG	1361	1075	889	756	662	585
Cable Capacity Per Layer	Feet	5.6	12.1	19.7	27.9	37.1	46.9
Cable Capacity Per Layer	Metres	1.7	3.7	6.0	8.5	11.3	14.0

Our Electric Winches Are Strong And Durable.
Winches Have Many Applications But Are Mainly Used For Recovery.

With A Wired Remote Included This Electric Winch Will Give Ease And Safety To Your Application.

*Not To Be Used For Lifting*

Please Note We Supply A Huge Range Of Transport And Winching Equipment.

***Free Delivery***

Product Code - SFEWATV3000

Specifications

Product Code

SFEWATV3000

Weight

9.35kg

Delivery & Returns

Delivery is free for all orders over £50. Otherwise, delivery is depending on the items you plan to purchase.Once your product has shipped, it usually takes 2 to 3 business days in UK, 3 to 8 in Europe. 5 to 15 for the rest of the world. You can return your product up to 14 days after receiving your order. Please make sure that the products are not used or damaged.

Customer Reviews

12V 3000LB Electric Recovery Winch - Trailer Truck Boat ATV Car Van Wired Remote

Out of stock

Product Code SFEWATV3000

Our Electric Recovery Winch Is Suitable For Many Uses Such As Off Road Recoveries.
