12V 2500LB Electric Recovery Winch - Trailer Truck Boat ATV Car Van Wired Remote

Product Description

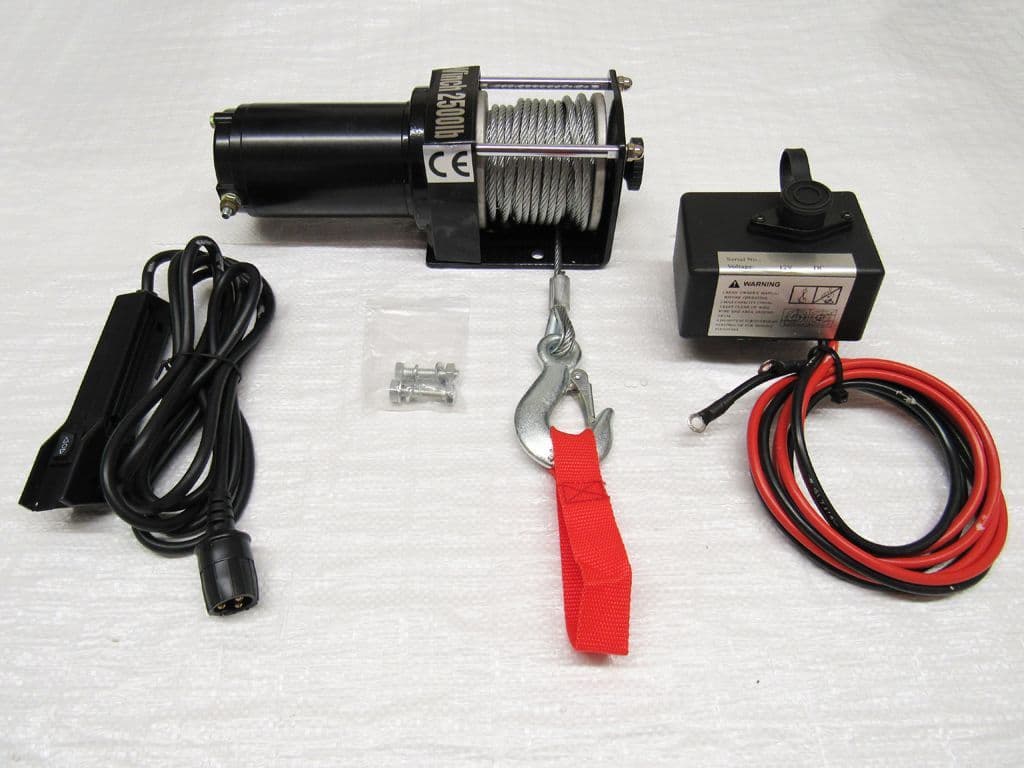

12V Electric Recovery Winch

Single Line Maximum Capacity - 2500LB

Winch Length X Width X Height - 295MM X 120MM X 105MM

Remote Cable Length - 2.8M

Power Cable Length - 1.7M

Hook Internal Clearance - 22MM

Total Wire Rope Length - 14M

Gear Reduction Ratio - 153:1

Motor - Permanent Magnet 0.8KW/1.0HP (12V)

Braking Action - Mechanical And Dynamic

Drum Diameter - 1.24" (31.5MM)

Drum Length - 2.88" (73MM)

Line Speed And Motor Current (First Layer)

Line Pull	LB	0	500	1000	1500	2000	2500
Line Pull	KG	0	227	454	680	907	1133
Line Speed	FT/MIN	14	12	10	8	7	5
Line Speed	M/MIN	4.2	3.6	3.0	2.4	2.1	1.5
Motor Current	AMPS	20	30	55	75	100	120

Line Pull And Cable Capacity

Layer Of Cable		1	2	3	4	5	6	7
Rated Line Pull Per Layer	LB	2500	2000	1630	1380	1190	1050	940
Rated Line Pull Per Layer	KG	1133	906	740	620	540	470	420
Cable Capacity Per Layer	Feet	4	6.5	14	22	31	41	49
Cable Capacity Per Layer	Metres	1.2	2.0	4.3	6.8	9.5	12.5	15

Our Electric Winches Are Strong And Durable.
Winches Have Many Applications But Are Mainly Used For Recovery.

With A Wired Remote Included This Electric Winch Will Give Ease And Safety To Your Application.

*Not To Be Used For Lifting*

Please Note We Supply A Huge Range Of Transport And Winching Equipment.

***Free Delivery***

Product Code - SFEWATV2500

Specifications

Product Code

SFEWATV2500

Weight

7.59kg

Delivery & Returns

Delivery is free for all orders over £50. Otherwise, delivery is depending on the items you plan to purchase.Once your product has shipped, it usually takes 2 to 3 business days in UK, 3 to 8 in Europe. 5 to 15 for the rest of the world. You can return your product up to 14 days after receiving your order. Please make sure that the products are not used or damaged.

Customer Reviews

12V 2500LB Electric Recovery Winch - Trailer Truck Boat ATV Car Van Wired Remote

Out of stock

Product Code SFEWATV2500

This Electric Recovery Winch Is Suitable For Use On Many Vehicles.
