Product Description

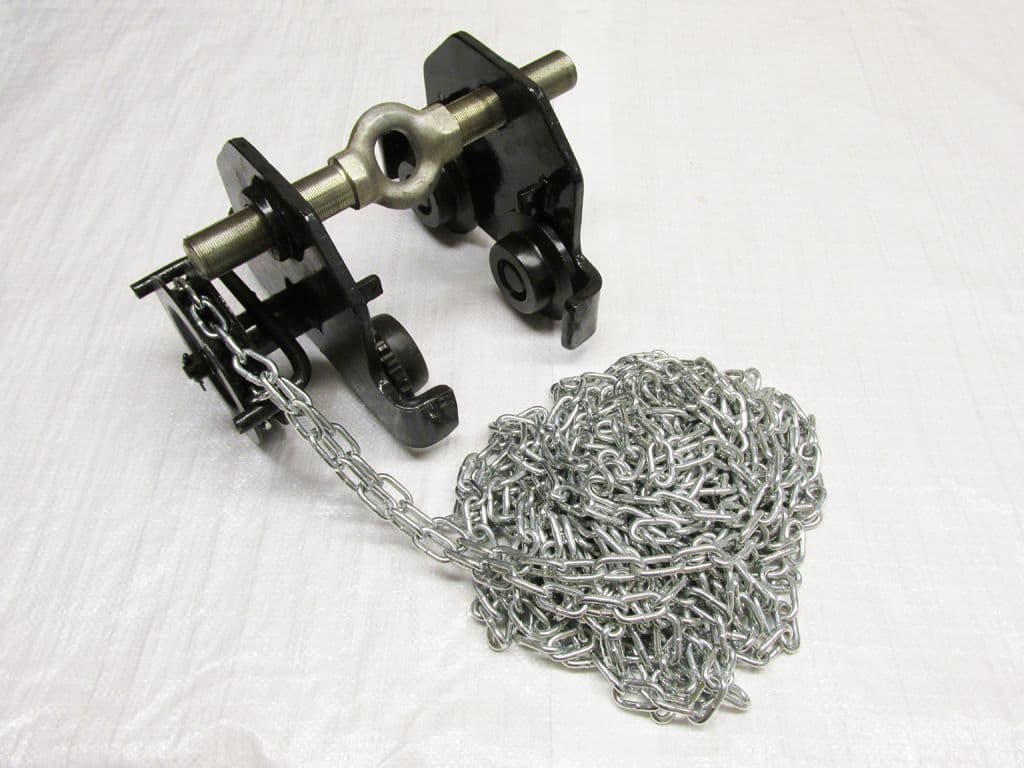

1 Ton Screw Type Geared Trolley With 6 Metre Hand Chain

These 1 ton x 6 metre geared trolleys are attached to steel beams to act as an adjustable lifting point for chain blocks, hoists & other various lifting tackle & products. These can be moved with ease and precision due to the hand chain & gear combo.

The advantage of this geared trolley is that it has a screw type adjuster for ease and efficient adjustment to fit different beam sizes as required.

Conforms To: BS EN 13157: 2004+A1: 2009

Product Code S.W.L
(Ton)
Beam Size Range (MM) Length (MM) Width (MM) Height (MM) Hand Chain Length (Metre) Lifting Height (Metre)
SFSTGT0.5 0.5 50-220 225 365 155 5.8 6
SFSTGT1 1 58-220 250 375 170 5.8 6
SFSTGT2 2 66-220 300 375 200 5.8 6
SFSTGT3 3 74-220 360 400 265 5.8 6
SFSTGT5 5 90-220 390 370 325 5.8 6

Supplied With Test Certificate. (Sent Via eMail)

Specifications

Product Code
SFSTGT1
Weight
16kg

Customer Reviews

1 Ton X 6 Metre Screw Type Gear Trolley - Travel Girder Adjuster

Item in Stock

Product Code SFSTGT1

This 6 metre x 1 ton trolley will make a good lifting point for chain blocks, hoists and various lifting tackle.
