1 Ton 100MM Double Sheave Snatch Block With Swivel Hook Blue Painted - 10MM Wire Rope Safety Lifting

Product Description

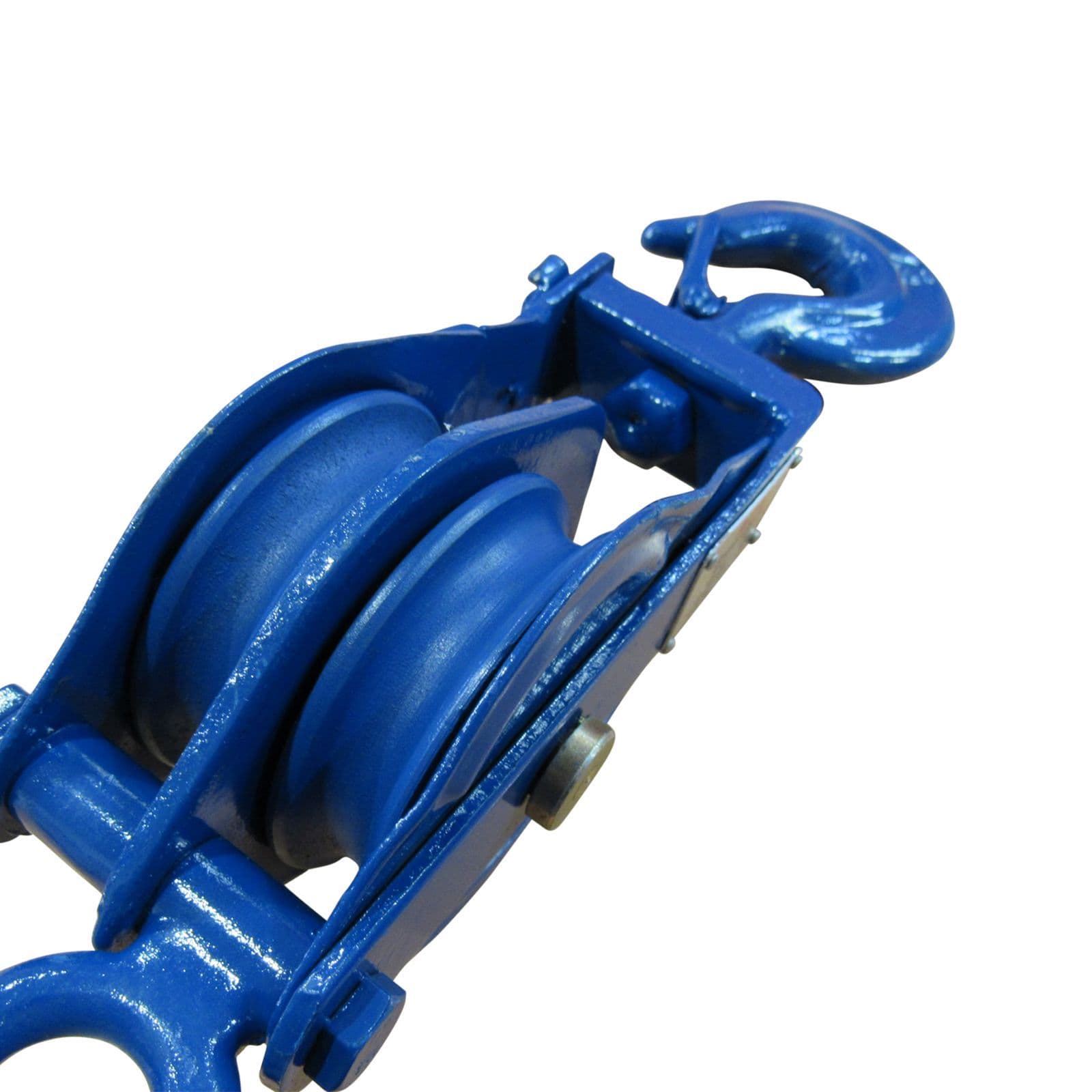

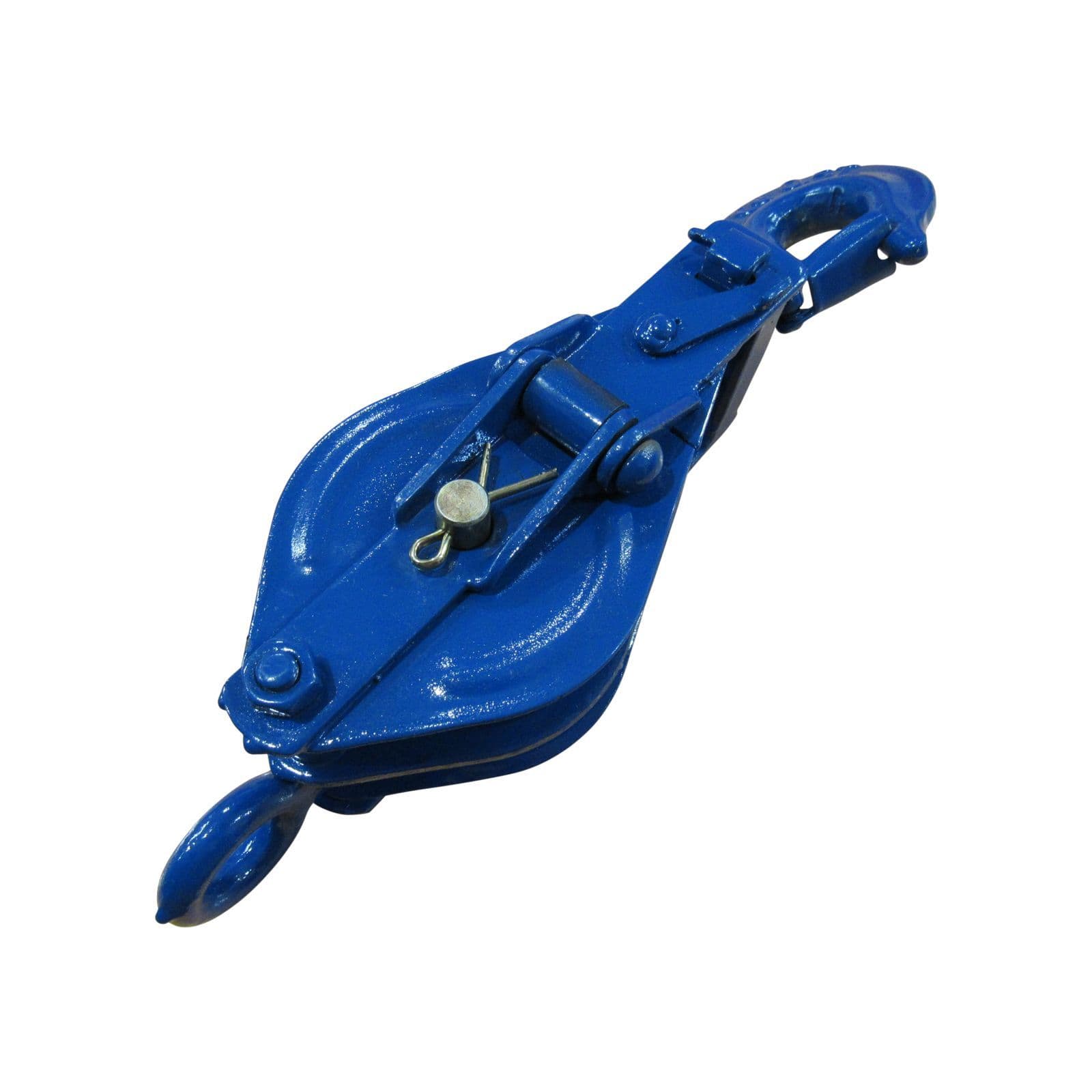

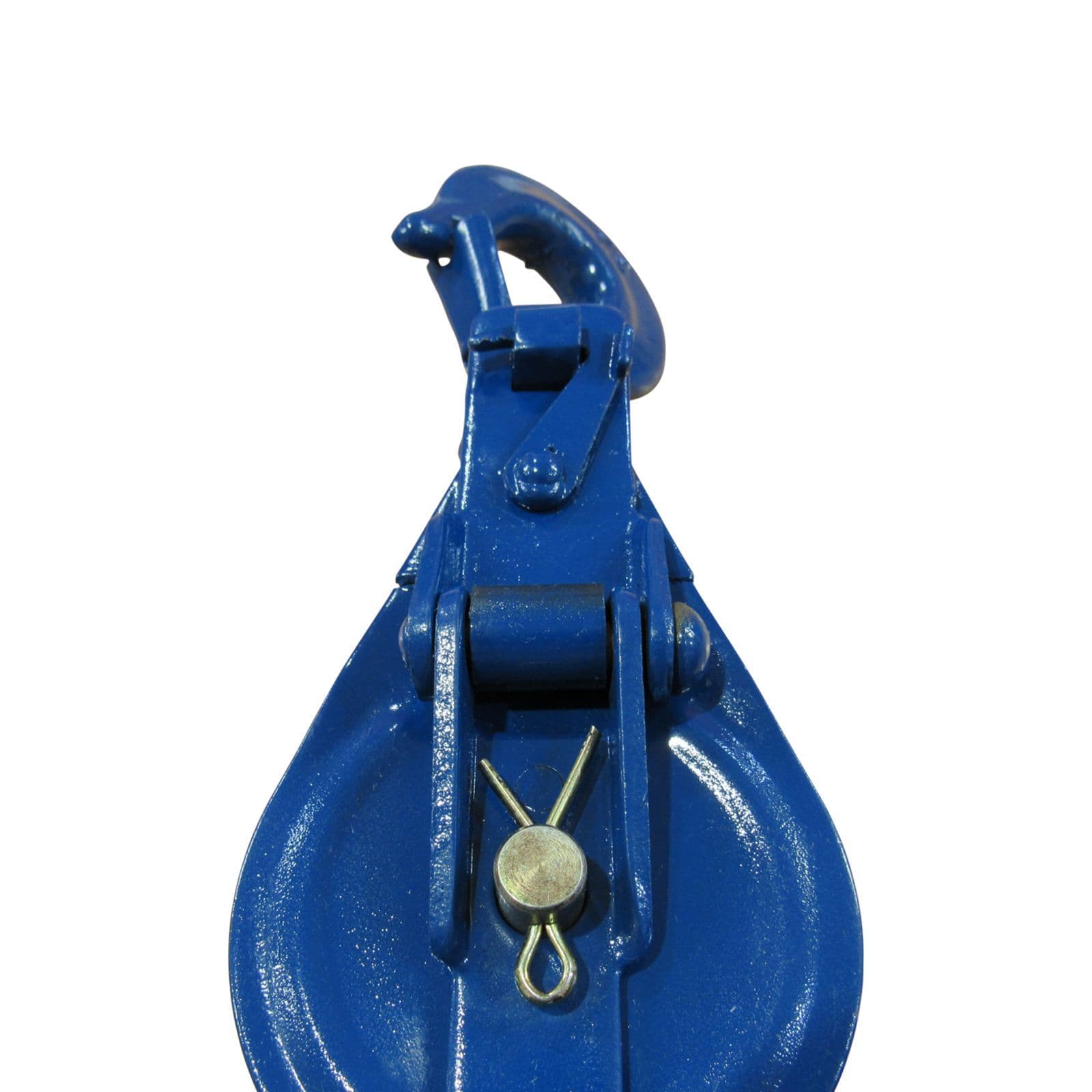

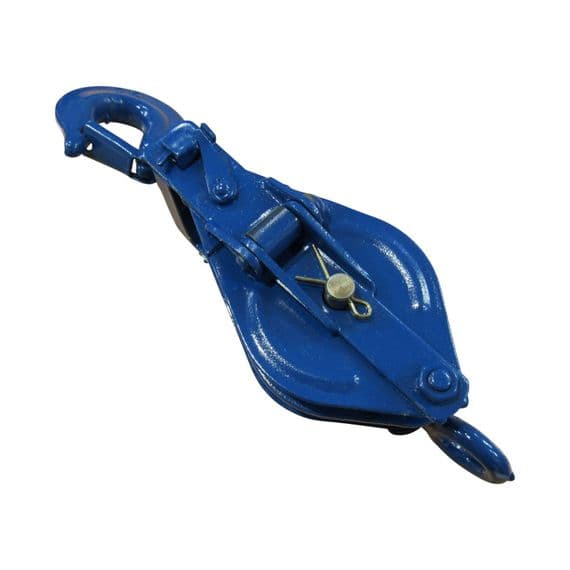

Double Sheave Snatch Block With Swivel Hook
Safe Working Load - 1 Ton
Suits Wire Rope - 10MM
Finish - Blue Painted
Factor Of Safety - 4:1
Conforms To: BS EN 13157: 2004 + A1: 2009

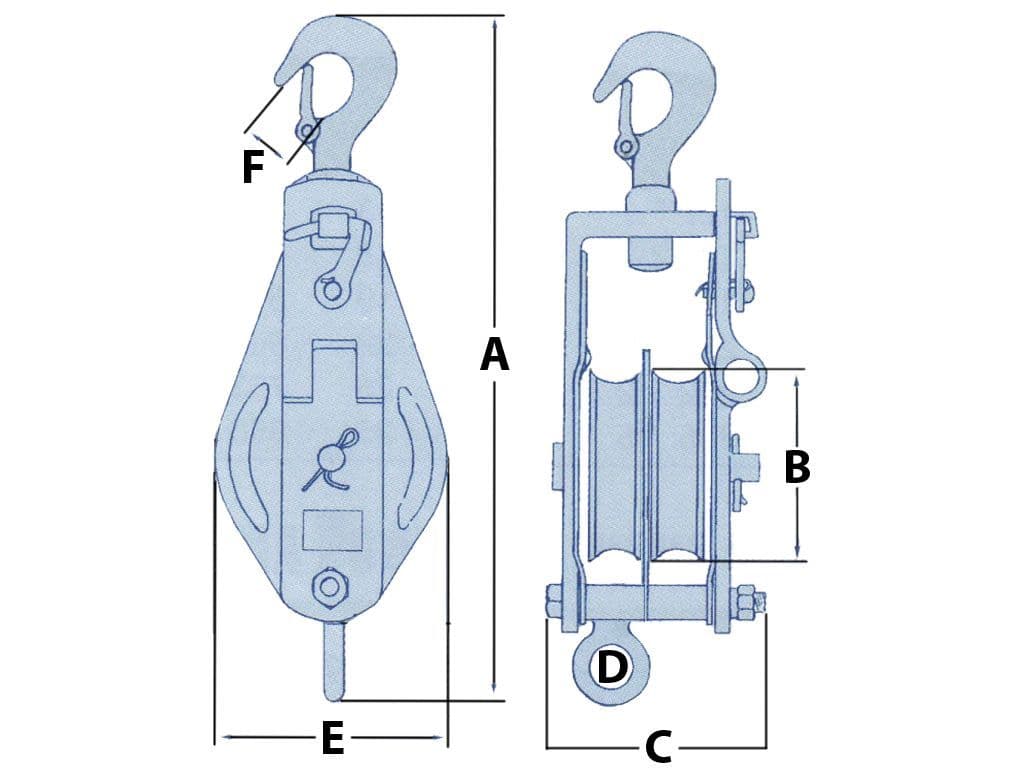

Product Code	Safe Working Load	A(MM)	B(MM)	C(MM)	D(MM)	E(MM)	F(MM)
SFSNBHD075	0.5 Ton	300	70	73	22	85	18
SFSNBHD100	1 Ton	350	95	90	22	110	21
SFSNBHD125	1.5 Ton	425	120	115	29	137	24
SFSNBHD150	2 Ton	465	150	128	27.5	170	31

Pulley Blocks Are Used For Various Lifting And Towing Applications. These Can Also Be Used For Re-Directing Rope.
This Particular Model Is A Double Sheave And Comes With A Swivel Hook. This Block Is For Use With 10MM Wire Rope. This Model Comes With A Built In Becket. This Snatch Block Has A Gate On The Side Which Allows The Rope To Be Put Directly Onto The Sheave, This Avoids The Need Of Having To Thread The Entire Length Of Rope.
Test Certificate Included (Sent via eMail)
Please Note We Supply A Huge Variety Of Lifting Equipment
*** FREE DELIVERY ***
Product Code - SFSNBHD100

Specifications

Product Code

SFSNBHD100

Weight

4.08kg
